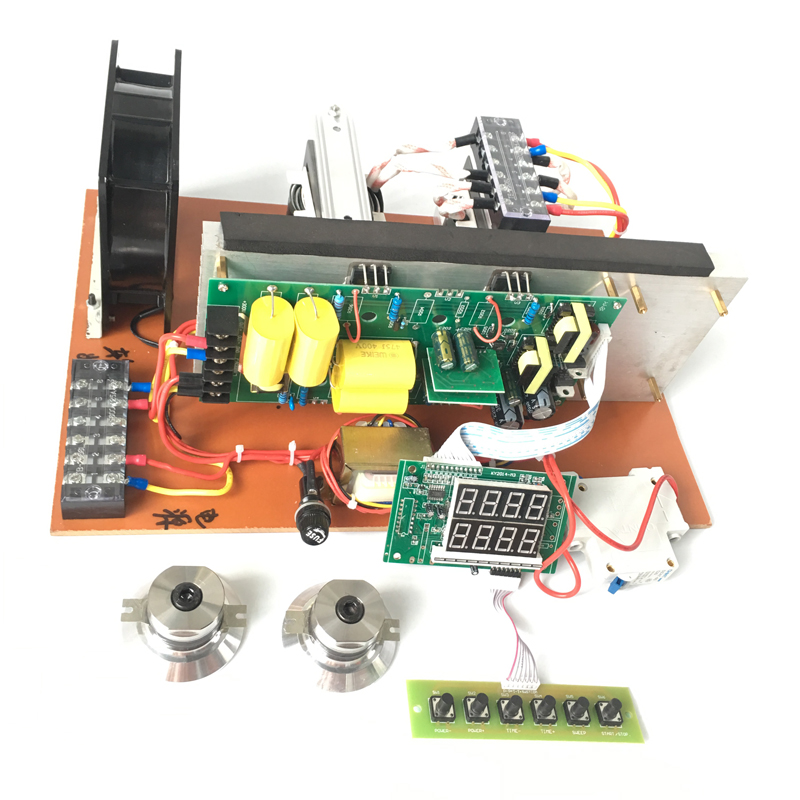

Ultrasonic PCB Driver Circuit Board for transducer

ultrasonic PCB generator and integrated ultrasonic generator drive high frequencyultrasonic transducer

Compared with the high-power control box, the control box has stable and reliable operation, continuous adjustable ultrasonic power, and can maximize the energy of the transducer. Moreover, it is small in size and suitable for the cabinet, cabinet, control cabinet and line automation system that need to generate ultrasound.



The working frequency of low-power ultrasonic generator is automatically tracked, which makes the output match better, the power is more powerful, and the efficiency is higher. The unique frequency sweeping working mode can form small backflow, and timely take the dirt peeled off from the workpiece surface, so as to achieve faster and more thorough cleaning effect, and the energy of transducer is more concentrated, at the same time, it has perfect protection Function, overheating protection and over-current protection, working more reliable.

Small ultrasonic power generator can adapt to different equipment requirements, flexible and simple operation.

Type	Power（W）	Frequency (KHz)
PU-DGPCB300W	300	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB600W	600	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB900W	900	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB1000W	1000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB1200W	1200	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB1500W	1500	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB1800W	1800	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB2000W	2000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB2400W	2400	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB3000W	3000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
