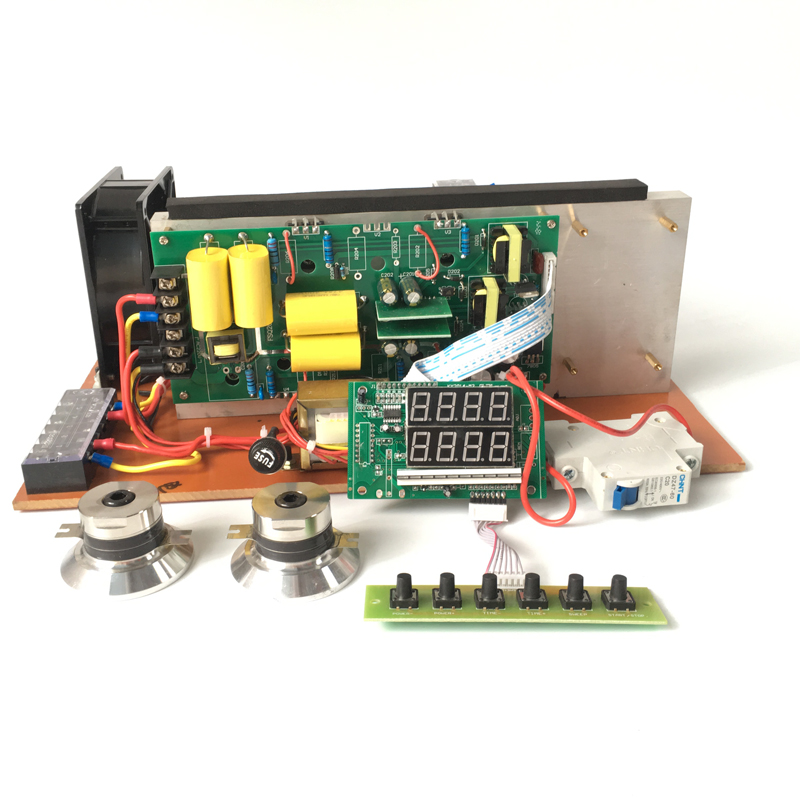

110V/220V/40khz ultrasonic frequency generator circuit

ultrasonic PCB generator: the control box adopts the excitation circuit under the control of microcomputer, and the working mode of frequency automatic tracking and frequency sweeping

And other advanced technologies. Compared with the traditional control box, it has stable and reliable operation, continuously adjustable ultrasonic power generator, and can maximize the potential of the transducer. work

Automatic frequency tracking makes output match better, power more powerful and efficiency higher. The unique working mode of frequency sweeping makes the cleaning fluid under the action of frequency sweeping

Form a small backflow, timely remove the dirt from the surface of the workpiece, so as to achieve a faster and more thorough cleaning effect

The washing efficiency is higher. At the same time, it has perfect protection function: overheat protection and over-current protection, which makes the work more reliable.

Small power ultrasonic generator with digital power adjustment can adapt to different cleaning requirements.

Type	Power（W）	Frequency (KHz)
PU-DGPCB300W	300	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB600W	600	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB900W	900	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB1000W	1000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB1200W	1200	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB1500W	1500	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB1800W	1800	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB2000W	2000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB2400W	2400	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB3000W	3000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
