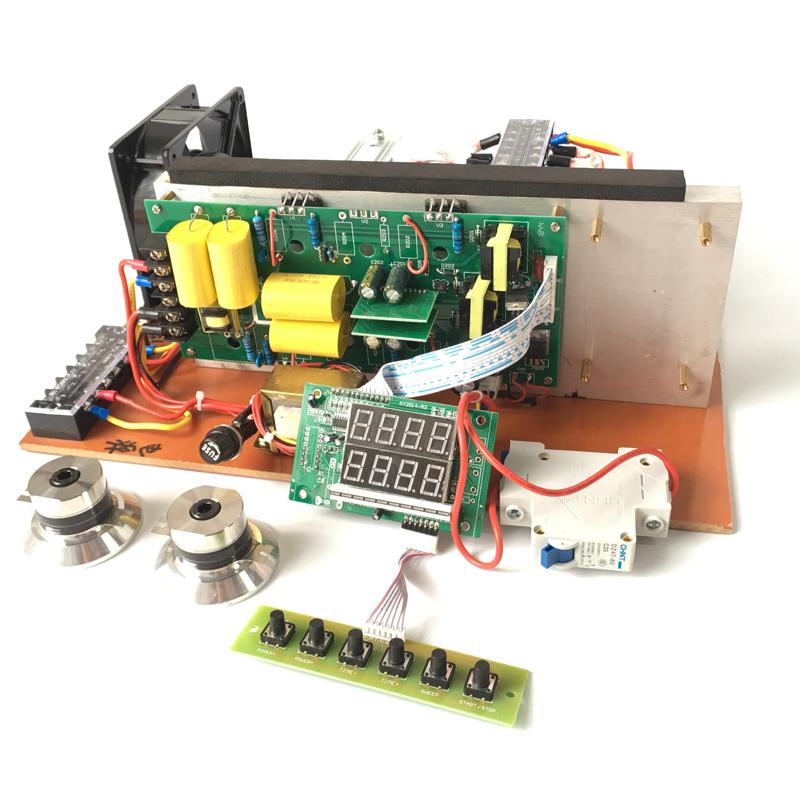

28khz/40khz ultrasonic piezo transducer driver circuit

There are two market demands for miniature ultrasonic PCB generator. They are ultrasonic generator with ultrasonic power of 300W and ultrasonic power generator with shape reduction. Both the former and the latter are miniature.



The 300W ultrasonic generator is the smallest of all ultrasonic generators and can drive less than 6 ultrasonic transducer. The shape of the ultrasonic generator can be reduced, and the ultrasonic power of 300W to 3000W can be reduced by removing the shell, so as to realize miniaturization and meet the various needs of customers.

Type	Power（W）	Frequency (KHz)
PU-DGPCB300W	300	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB600W	600	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB900W	900	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB1000W	1000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB1200W	1200	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB1500W	1500	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB1800W	1800	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB2000W	2000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB2400W	2400	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB3000W	3000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
