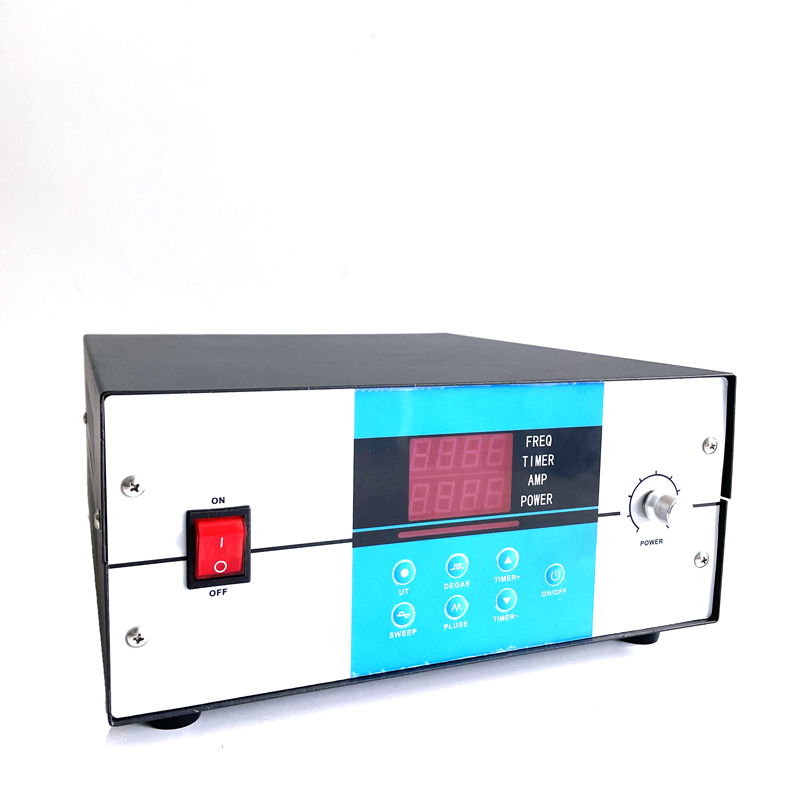

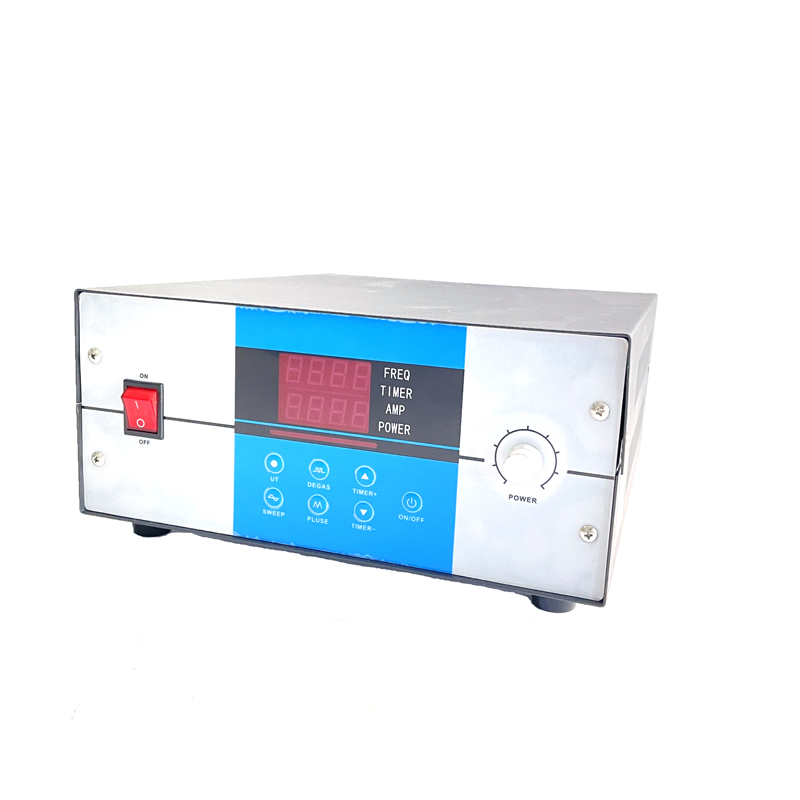

multifunctional ultrasonic generator for cleaning

Price：¥

Service quality：

The matching circuit of ultrasonic power supply includes output transformer, inductance and transducer. After the high-voltage signal is isolated by the output transformer, the circuit excites the series (parallel) resonant circuit composed of resonant inductor and ultrasonic transducer to make it resonate and convert the electrical energy into mechanical energy most effectively, so as to realize the purpose of ultrasonic cleaning.

It is suitable for cleaning electroplating parts before plating, waxing and degreasing cleaning of stainless steel hardware parts, metal products, copper and aluminum accessories, mechanical parts, zinc alloy parts, watch parts, glasses, jewelry, glassware, and almost all the hard plastic, metal, hardware parts in the machining process of oil, polishing paste, dust and other attachments.

Equipment advantages:

1. The debugging is simple: the generator can adjust the frequency and inductance in two steps;

2. Uniform ultrasonic: the standard of uniform ultrasonic output in domestic cleaning industry, cleaner cleaning;

3. Ultrasonic strength: domestic cleaning industry cleaning strength, ultrasonic output industry leading, cleaning fast;

4. Stable quality: after ten years of testing, the ultrasonic circuit board has been upgraded, and many domestic listed companies have designated brand ultrasonic generators.

5. Service life: 50000 hours of ultra long service life, the current service life is recognized as the industry-leading ultrasonic generator.

6. Excellent workmanship: meticulous and excellent workmanship, with high reputation in the industry comparison.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PU-DGN300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PU-DGN600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PU-DGN900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PU-DGN1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PU-DGN1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PU-DGN1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PU-DGN1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PU-DGN2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PU-DGN2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PU-DGN3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150

TAG ultrasonic： multifunctional ultrasonic generator Multifunction ultrasonic cleaning generator Multifunction ultrasonic cleaner generator
