Multi-Frequency immersible ultrasonic transducer Box

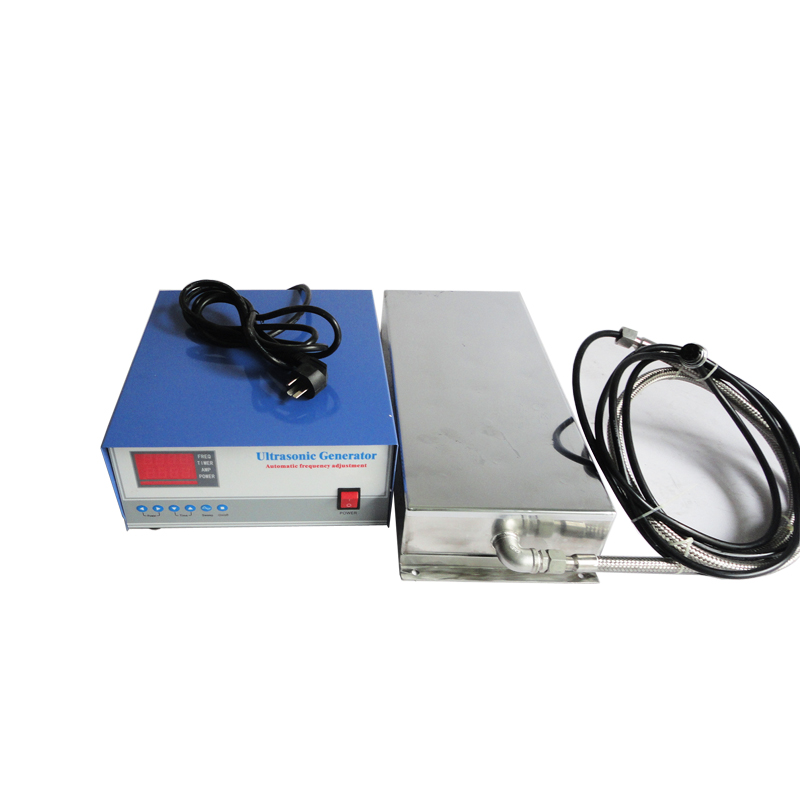

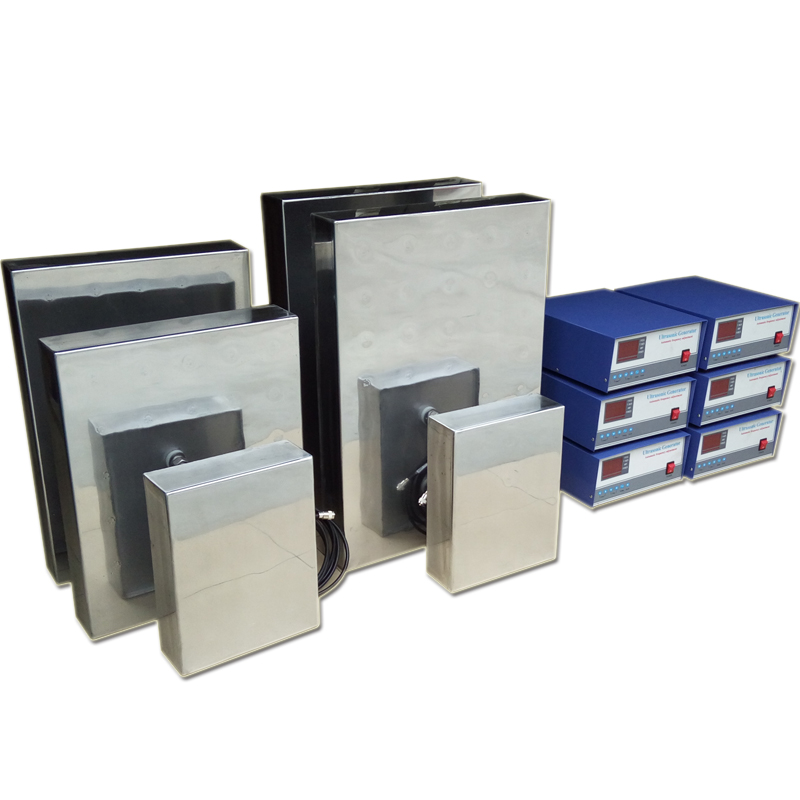

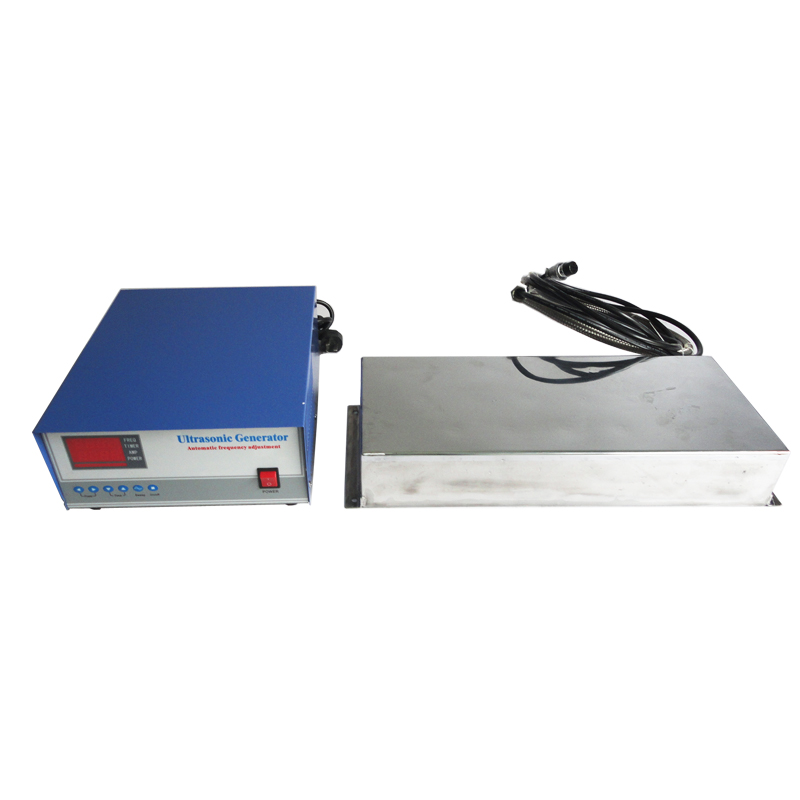

Multi-Frequency immersible ultrasonic transducer Box The ultrasonic vibration plate for the cleaning tank is composed of ultrasonic transducer attached to the fully sealed stainless steel vibration box and ultrasonic generator. When the groove type ultrasonic cleaning equipment is not suitable for specific work needs, the ultrasonic vibration plate is not only suitable for self-made cleaning tank or adding ultrasonic cleaning function to existing cleaning tank, but also suitable for the maintenance of ultrasonic vibration plate of existing ultrasonic cleaning equipment It is suitable for large-scale ultrasonic cleaning machine system to be equipped with ultrasonic plate, ultrasonic extraction equipment and ultrasonic sewage treatment equipment. Ultrasonic vibration plate can be flexibly installed in different parts of the cleaning tank (top, side, bottom) to achieve different cleaning effect. Ultrasonic vibration plate (vibration plate) is generally customized according to the needs of users and actual working conditions.





Characteristics of Multi-Frequency immersible ultrasonic transducer Box:



Material: the vibration plate is made of imported SUS304 2.5mm stainless steel plate, and the vibration surface is made of SUS316 2.5mm stainless steel plate.



1. Surface: electroplate hard chromium 5um on ultrasonic vibration surface to enhance service life of vibration surface.

2. Structure: the whole machine is equipped with a movable hook device, which is easy to install or move. The ultrasonic transducer is fixed with special imported glue and welding screws. The ultrasonic transducer has a long and durable life. The frequency is 25kHz / 28kHz / 40KHz. The whole machine is made of stainless steel.

3. Electrical system: all electrical components are made of imported high-quality parts, so as to achieve zero fault, and reduce unnecessary trouble caused by the need for professional on-site maintenance in the process of use.

4. Ultrasonic generator: digital frequency synthesis technology under the control of microcomputer, ultrasonic power can be continuously adjusted (digital display), with perfect protection functions: overheat and over-current protection, and four bit timer to make time control accurate to seconds. At the same time, it also has frequency sweep function.

4. Power supply: heating: 220 V / 50 Hz

5. Scope of application: hardware, electroplating, electronics, clocks, machinery, tools, glasses, jewelry, semiconductor silicon, polyester spinneret, polyester filter and glassware cleaning.

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
PU-UITP300WT	300*190*100	25,28,33,40,80,130	300	6
PU-UITP600WT	360*275*100	25,28,33,40,80,130	600	12
PU-UITP1000WT	450*350*100	25,28,33,40,80,130	1000	20
PU-UITP1200WT	470*380*100	25,28,33,40,80,130	1200	24
PU-UITP1500WT	520*450*100	25,28,33,40,80,130	1500	30
PU-UITP1800WT	560*450*100	25,28,33,40,80,130	1800	36
PU-UITP2000WT	650*450*100	25,28,33,40,80,130	2000	40
PU-UITP2400WT	740*520*100	25,28,33,40,80,130	2400	48
PU-UITP3000WT	820*540*100	25,28,33,40,80,130	3000	60
PU-UITP5000WT	1200*590*100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
