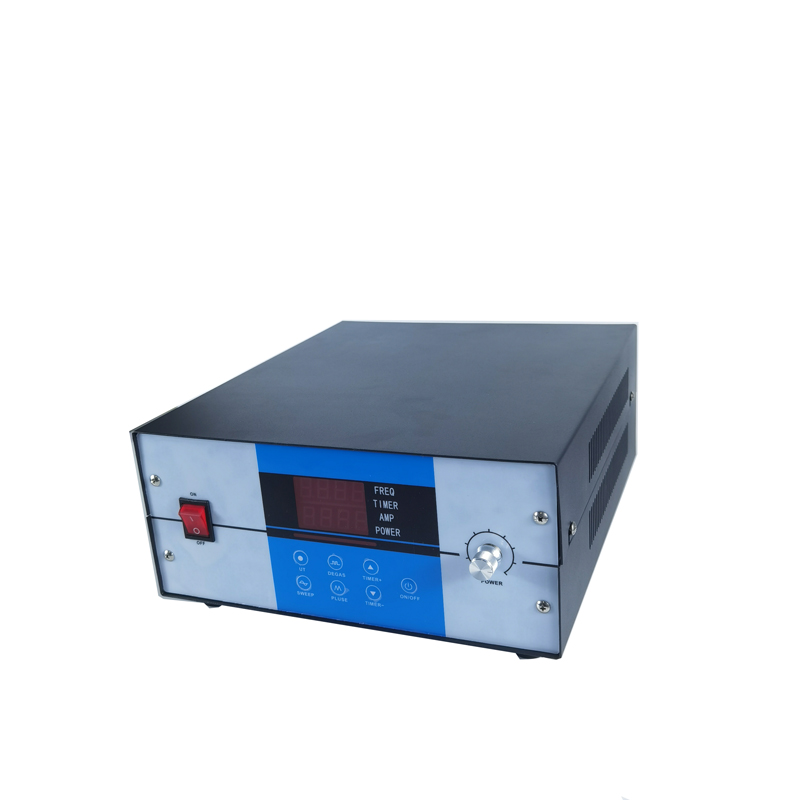

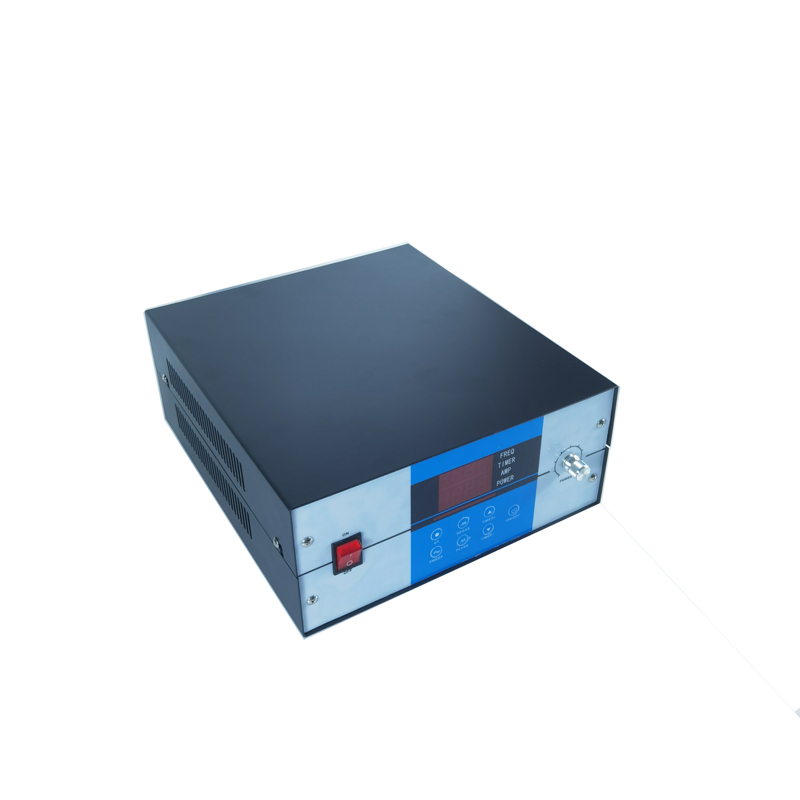

50khz/200khz high frequency ultrasonic generator

Our self-developed ultrasonic cleaning equipment, ultrasonic generator frequency 20KHz ~ 42khz stepless adjustable, precision to 0.1khz continuous adjustable, can make the output match to the state, higher efficiency; can make similar products performance increased by 50%, extend the life of transducer more than twice, constant current regulation and frequency tracking, system tracking frequency size can be set, there is detuning automatic rapid harmonic Vibration function, working parameters using digital display, users can accurately control the output power through preset current value, load duration rate can reach more than 95%.



Thank you for using our ultrasonic generator. In order to improve the complex defects in the adjustment process, this machine upgrades and updates the circuit, program and components. After more than two years of repeated testing and factory practice, the new intelligent digital display ultrasonic generator with complete functions and simple adjustment is introduced

（1） With timing function, it can realize timing switch on and off;

（2） It has the function of sweeping frequency to realize the cleaning of sweeping frequency;

（3） The ultrasonic frequency, output wattage and current can be displayed at the same time, which is more intuitive and clear;

（4） It has over-current, overload and overheating protection functions;

（5） This machine adopts high-power IBGT amplification output to drive the transducer, which makes the ultrasonic effect stronger in the liquid cavitation;

（6） This machine adopts PWM control chip to realize high efficiency dynamic response;

1. Timing range: 0-60 minutes 2. Ambient temperature: 0-40 ℃; 3. Relative humidity: 40% - 90%. 4. Maximum temperature: 60 ℃; 5. Adjustment range: 2% - 100% (press pause for short time shutdown)

PU-GTHF200	200W	50khz,54khz,60khz,68khz,70khz,80khz,90khz, 100khz,120khz,135khz,150khz,175khz,200khz	2-6	300x360x150
PU-GTHF300	300W	50khz,54khz,60khz,68khz,70khz,80khz,90khz, 100khz,120khz,135khz	3-6	300x360x150
PU-GTHF600	600W	50khz,54khz,60khz,68khz,70khz,80khz,90khz, 100khz,120khz,135khz	6-12	300x360x150
PU-GTHF900	900W	50khz,54khz,60khz,68khz,70khz,80khz,90khz, 100khz,120khz,135khz	9-18	300x360x150
UCE-NTHF1000	1000W	50khz,54khz,60khz,68khz,70khz,80khz,90khz, 100khz,120khz,135khz	10-20	300x360x150
PU-GTHF1200	1200W	50khz,54khz,60khz,68khz,70khz,80khz,90khz, 100khz,120khz,135khz	12-24	300x360x150
PU-GTHF1500	1500W	50khz,54khz,60khz,68khz,70khz,80khz,90khz, 100khz,120khz,135khz	15-30	300x360x150
PU-GTHF1800	1800W	50khz,54khz,60khz,68khz,70khz,80khz,90khz, 100khz,120khz,135khz	18-36	300x360x150
PU-GTHF2000	2000W	50khz,54khz,60khz,68khz,70khz,80khz,90khz, 100khz,120khz,135khz	20-40	300x360x150
