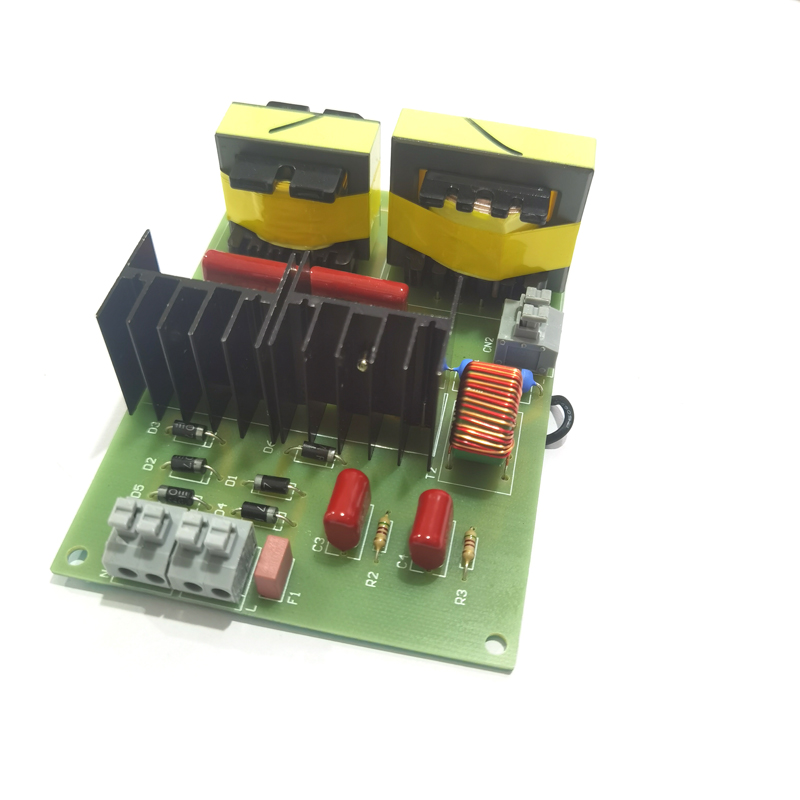

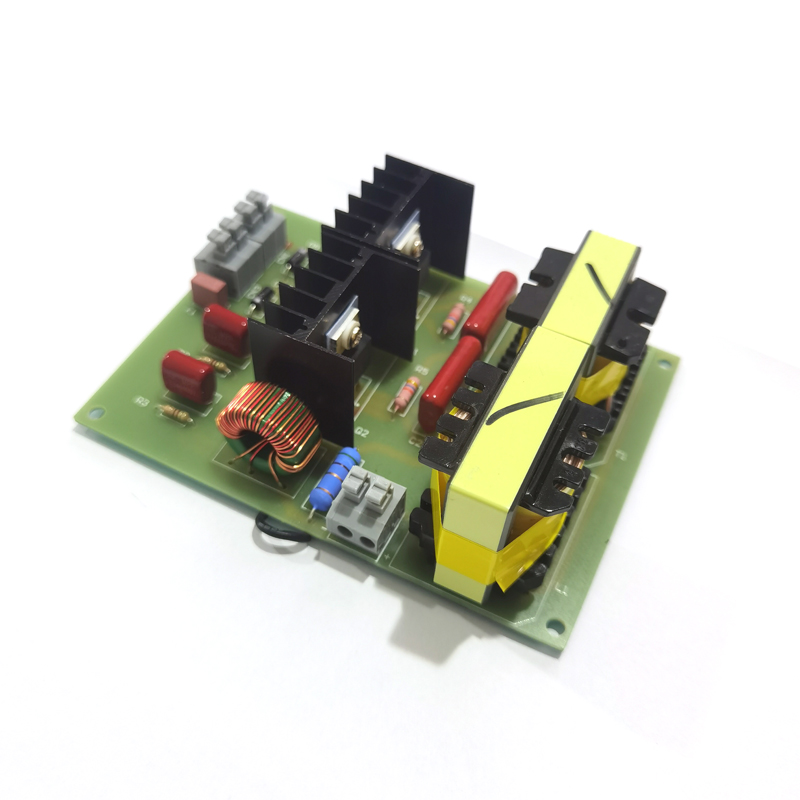

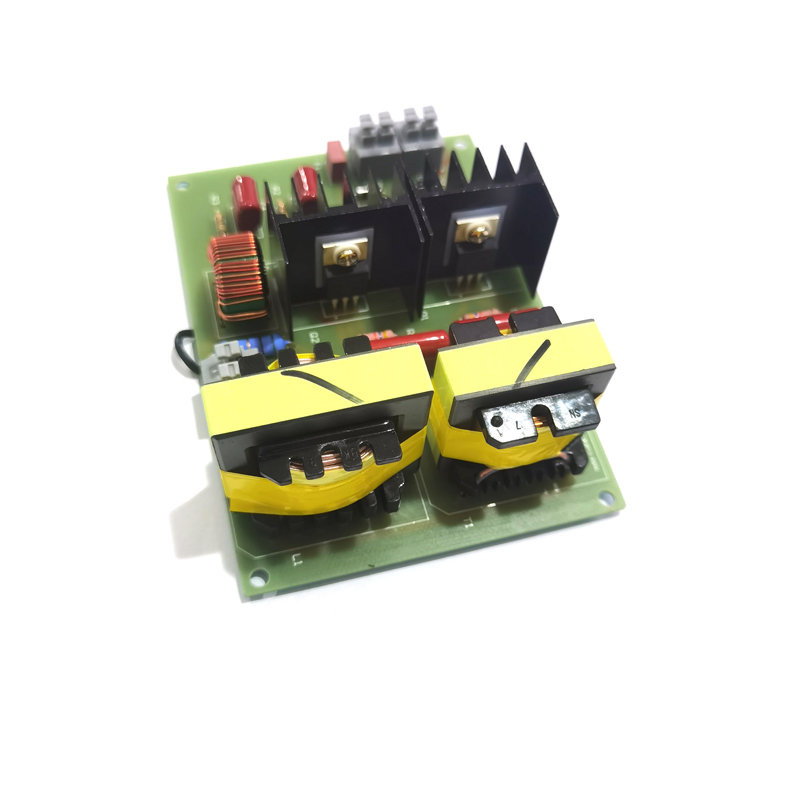

After more than ten years of technology and experience accumulation, Foshan Pulisonic has developed and applied ultrasonic circuit generator in the fields of industrial, medical and household cleaning. The circuit board generator is developed using our unique technology, with small volume and low cost, and high adaptability and stability for different cleaning conditions.
The circuit board supports a frequency of 20~40khz and a power of 200W. It can be connected to a small cleaning tank alone or matched to a customized cleaning tank. Constant power output enables the output to match different domestic and foreign
ultrasonic transducers. The power is stronger and the efficiency is higher.
Type |
Power |
Frequency |
Voltage |
Current |
PLS-GP50W |
50W |
20,25,28,33,40 |
220V |
0.3 |
PLS-GP60W |
60W |
20,25,28,33,40 |
220V |
0.3 |
PLS-GP100W |
100W |
20,25,28,33,40 |
220V |
0.45 |
PLS-GP120W |
120W |
20,25,28,33,40 |
220V |
0.54 |
PLS-GP150W |
150W |
20,25,28,33,40 |
220V |
0.68 |
PLS-GP180W |
180W |
20,25,28,33,40 |
220V |
080 |
PLS-GP200W |
200W |
20,25,28,33,40 |
220V |
0.90 |
