80khz Ultrasonic Cleaner For Industrial Immersible Transducer

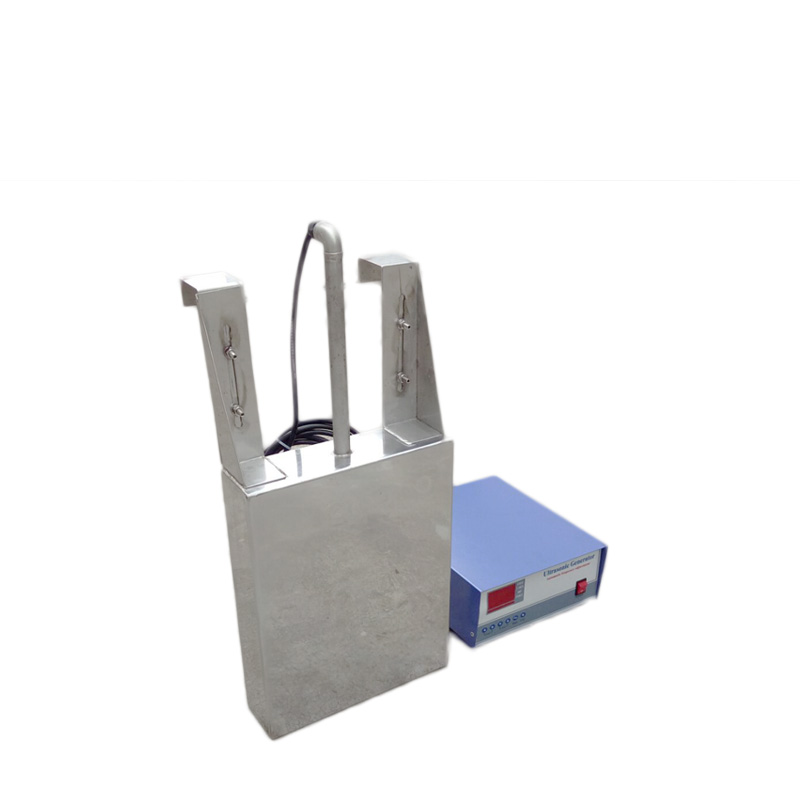

Immersible Ultrasonic Transducer Product introduction:

When the ordinary trough cleaning machine is not suitable for some special working occasions, immersion ultrasonic vibration plate can be selected. Immersion vibration plate can be designed into different shapes and sizes according to customer requirements. It adopts * * stainless steel top tight welding, which is acid and alkali resistant, corrosion-resistant, easy to disassemble and maintain.

Some models of this series of products are specially designed by many famous pharmaceutical machine manufacturers. They have been put into use in the production lines of infusion, oral liquid, water injection, powder injection and syrup of nearly 1000 pharmaceutical factories in China, and have been widely praised by users!

In the extraction of traditional Chinese medicine, ultrasonic circulation extraction technology has been widely used. Ultrasonic extraction is to use the cavitation effect of ultrasound to increase the penetration of solvent, improve the dissolution rate and dissolution times of drugs, so as to increase the diffusion of material components, shorten the extraction time and accelerate the extraction process.

This series of products can be used in all kinds of cleaning line, or ultrasonic transformation of existing cleaning pool. It is widely used in automobile, machinery, electronics, wine making, food, chemical, pharmaceutical, semiconductor manufacturing, magnetic materials, mold, electroplating, multi arc ion plating, oil nozzle and other industries. For example: the cleaning of large rubber molds such as tires, V-belts and synchronous belts can be carried out with ultrasonic vibration box and large-scale stainless steel heating and washing.

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
PU-UITP300WT	300*190*100	25,28,33,40,80,130	300	6
PU-UITP600WT	360*275*100	25,28,33,40,80,130	600	12
PU-UITP1000WT	450*350*100	25,28,33,40,80,130	1000	20
PU-UITP1200WT	470*380*100	25,28,33,40,80,130	1200	24
PU-UITP1500WT	520*450*100	25,28,33,40,80,130	1500	30
PU-UITP1800WT	560*450*100	25,28,33,40,80,130	1800	36
PU-UITP2000WT	650*450*100	25,28,33,40,80,130	2000	40
PU-UITP2400WT	740*520*100	25,28,33,40,80,130	2400	48
PU-UITP3000WT	820*540*100	25,28,33,40,80,130	3000	60
PU-UITP5000WT	1200*590*100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
