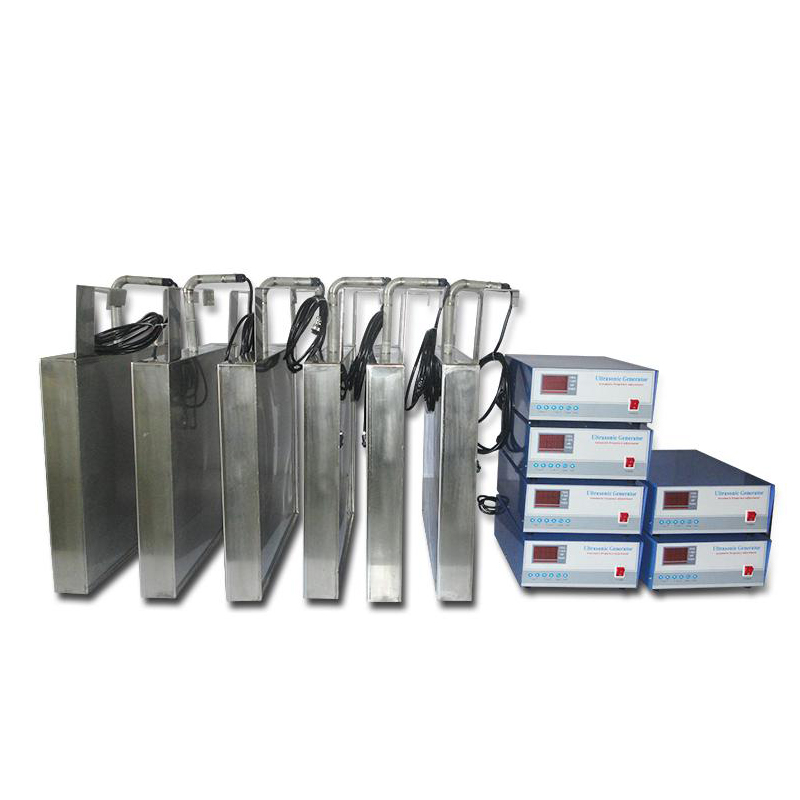

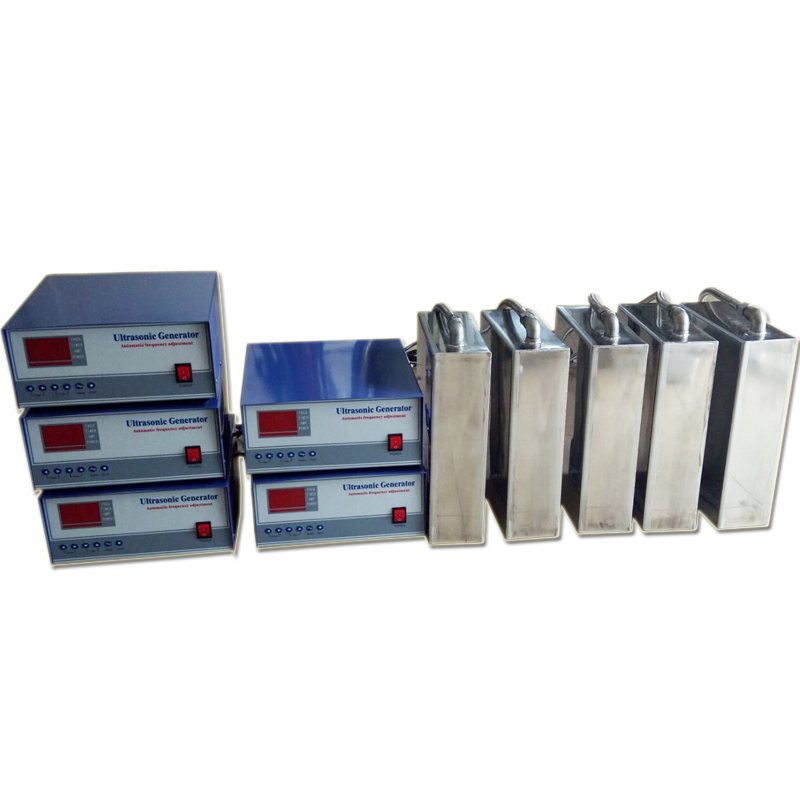

Immersible Ultrasonic Transducer for Industrial Cleaning

The device consists of two parts: the shock plate and the ultrasonic generator. When the standard type of ultrasonic cleaning machine is not suitable for specific working environment, in addition to special specifications, it can also use the input type ultrasonic vibration plate device. All stainless steel structure, made of SUS316L stainless steel seal welding, acid and alkali resistant, beautiful and durable. According to the need, the ultrasonic radiation surface can be on the bottom, side or top of the cleaning tank.



1: 2. The ultrasonic generator should be far away from the heat source and keep good ventilation and heat dissipation;

3: The ultrasonic power supply must avoid liquid inflow, so as to avoid short circuit or corrosion;

4: The ultrasonic vibration plate shall not work for more than eight hours at a time. If there is continuous work, it is recommended to take a rest for a while before continuing to work when working for more than four hours.

5: Clean the tank regularly to make the surface clean;

6: When the machine does not work for a long time, it needs to run idly, usually once a month or half a month;

7: If the vibration plate has breakdown, the steel plate should be replaced in time;

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
PU-UITP300W	300*190*100	25,28,33,40,80,130	300	6
PU-UITP600W	360*275*100	25,28,33,40,80,130	600	12
PU-UITP1000W	450*350*100	25,28,33,40,80,130	1000	20
PU-UITP1200W	470*380*100	25,28,33,40,80,130	1200	24
PU-UITP1500W	520*450*100	25,28,33,40,80,130	1500	30
PU-UITP1800W	560*450*100	25,28,33,40,80,130	1800	36
PU-UITP2000W	650*450*100	25,28,33,40,80,130	2000	40
PU-UITP2400W	740*520*100	25,28,33,40,80,130	2400	48
PU-UITP3000W	820*540*100	25,28,33,40,80,130	3000	60
PU-UITP5000W	1200*590*100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
