40khz/80khz immersible ultrasonic cleaning transducers

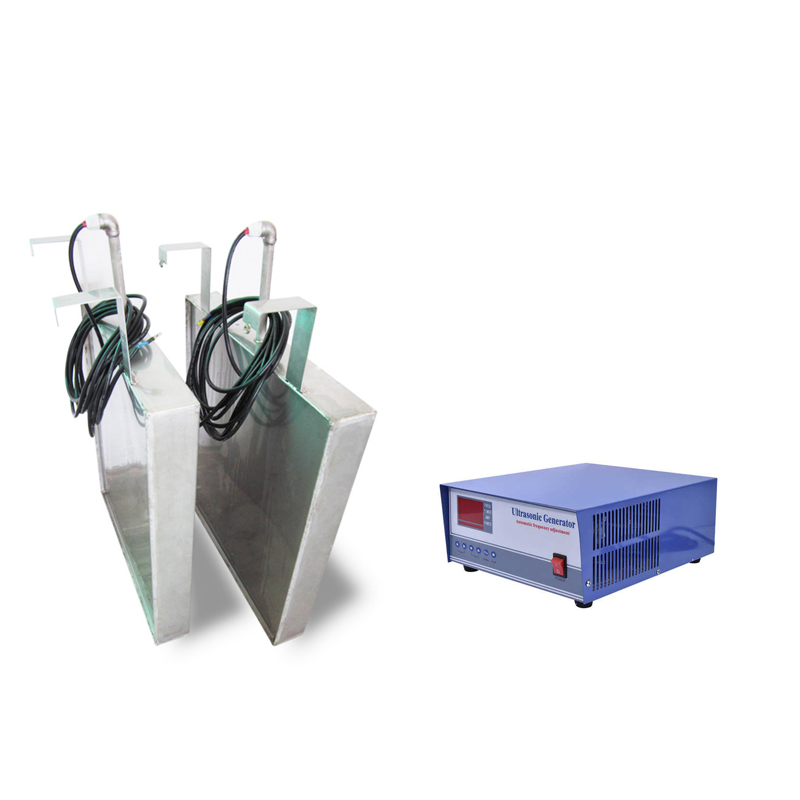

The input type Immersible Ultrasonic Transducer device is composed of vibration plate and ultrasonic generator. When the standard ultrasonic cleaning machine can not be applied to specific work

In the environment, in addition to the special specifications, the input type super wave vibration plate device can also be used. The working position can be divided into top vibration, side vibration and bottom vibration

Different cleaning effects.

All stainless steel structure, acid and alkali resistant, beautiful and durable. Titanium plate is used for strong acid and alkali, reinforced and welded;

The welding of thickened stainless steel has good sealing performance;

The high-Q vibrator of the United States has strong ultrasonic power;

The ultrasonic generator and vibration plate are connected by high frequency wire, which is convenient for maintenance;

* 24-hour continuous work, suitable for mass production. technical specifications.

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
PU-UITP300WT	300*190*100	25,28,33,40,80,130	300	6
PU-UITP600WT	360*275*100	25,28,33,40,80,130	600	12
PU-UITP1000WT	450*350*100	25,28,33,40,80,130	1000	20
PU-UITP1200WT	470*380*100	25,28,33,40,80,130	1200	24
PU-UITP1500WT	520*450*100	25,28,33,40,80,130	1500	30
PU-UITP1800WT	560*450*100	25,28,33,40,80,130	1800	36
PU-UITP2000WT	650*450*100	25,28,33,40,80,130	2000	40
PU-UITP2400WT	740*520*100	25,28,33,40,80,130	2400	48
PU-UITP3000WT	820*540*100	25,28,33,40,80,130	3000	60
PU-UITP5000WT	1200*590*100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
