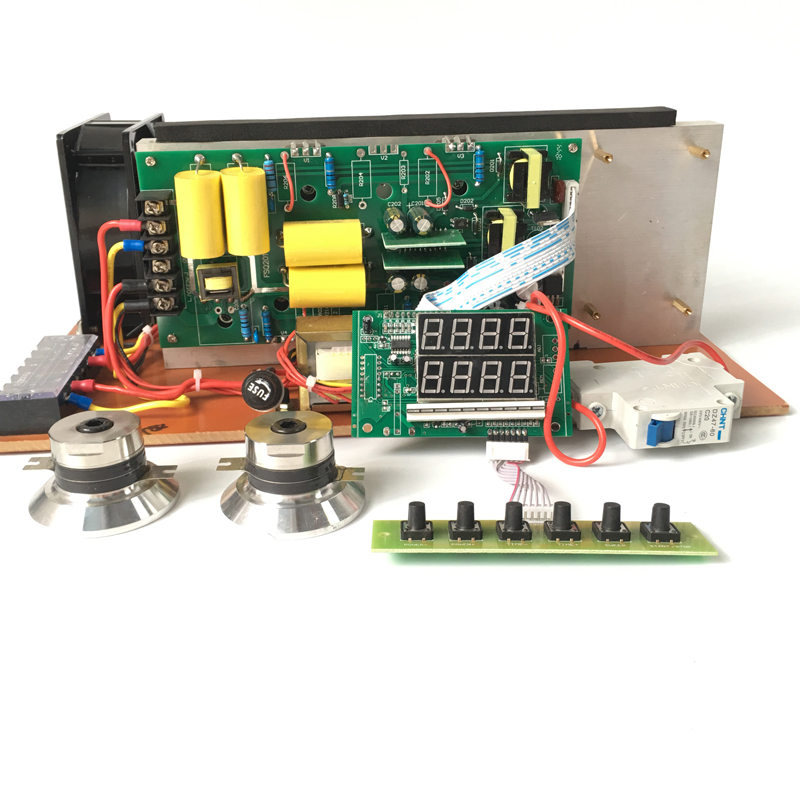

28khz/40khz ultrasonic generator circuit board for cleaning

ultrasonic PCB generator Product advantages:

1. It is suitable for a small number of single transducer or less than 6 transducers;

2. Small volume, easy to install in the cleaning shell or inside the distribution cabinet;

3. Suitable for all kinds of small or micro cleaning machine.

4. The technology is stable and mature, and the similar micro generator has a long service life.

2、 Product features:

1. IGBT power output components are all imported devices, which have the advantages of small size, high power and fast response;

2. Power tube: adopt 90a / 1200V imported tube from Toshiba of Japan to eliminate the possibility of burning tube;

3. The output power is up to 93% and the ultrasonic cavitation density is greatly increased;

4. The output current is sine wave, which can prolong the service life of transducer and generator;

5. Wide range sweep frequency: 23khz-40khz adjustable, suitable for all kinds of transducers;

6. Adjustable power function;

Type	Power（W）	Frequency (KHz)
PU-DGPCB300W	300	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB600W	600	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB900W	900	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB1000W	1000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB1200W	1200	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB1500W	1500	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB1800W	1800	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB2000W	2000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB2400W	2400	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB3000W	3000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
