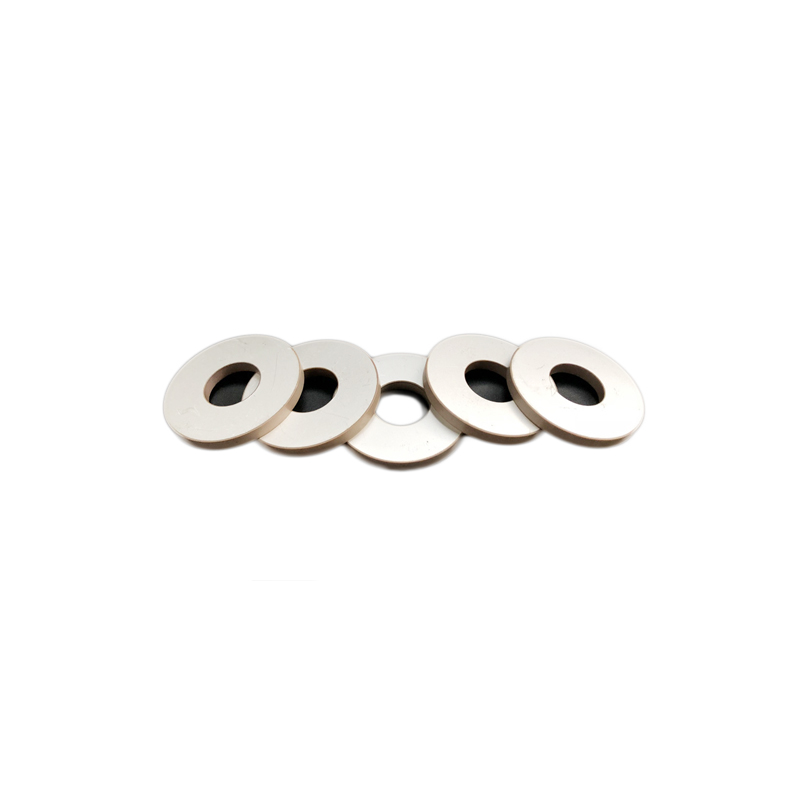

Pzt-8/pzt-4 Piezoelectric Ceramics 50*17*6.5mm Ring

Our company specializes in the production of piezoelectric ceramic wafers of various specifications, conventional cleaning, welding, medical chips, and customized chips of various specifications, as well as ultrasonic cleaning transducer, ultrasonic beauty shovel, probe, etc



The principle of Piezoelectric ceramic transducer is that when pressure or tension is applied to the ceramic plate, opposite polarity charges will be generated at both ends of the ceramic plate, and current will be generated through the circuit. This effect is called piezoelectric effect. Therefore, in the design of ultrasonic transducer, various factors should be considered, such as acoustic impedance, frequency response, impedance matching, acoustic structure, vibration mode and conversion material, as well as how to design and coordinate these factors to achieve the optimal value of electroacoustic conversion. As an energy transmission network, piezoelectric ceramic transducer has the problem of energy conversion efficiency.

spec	Dimension (mm)	Radial frequency (KHz)	Capacitance (pf)	Dielectric dissipation factor tanδ(%)	Electromechanical coupling coefficient (Kr)	Impedance Zr(Ω)	Thickness frequency (KHz)
PU-PC25103	Φ25×Φ10×3	66.4	1240±12.5%	≤0.3	≥0.46	≤15	683±5%
PU-PC225104	Φ25×Φ10×4	66.4	930±12.5%	≤0.3	≥0.46	≤15	512±5%
PU-PC40155	Φ40×Φ12×5	45.9	2070±12.5%	≤0.3	≥0.46	≤15	410±5%
PU-PC40155	Φ40×Φ15×5	42.2	1960±12.5%	≤0.3	≥0.46	≤15	323±5%
PU-PC40176	Φ40×Φ17×6	40.5	1555±12.5%	≤0.3	≥0.46	≤15	341±5%
PU-PC40205	Φ40×Φ20×5	37.9	1700±12.5%	≤0.3	≥0.47	≤15	410±5%
PU-PC50206	Φ50×Φ20×6	33.2	2490±12.5%	≤0.3	≥0.46	≤15	341±5%
PU-PC501765	Φ50×Φ17×6.5	34.8	2430±12.5%	≤0.3	≥0.46	≤15	315±5%
PU-PC50236	Φ50×Φ23×6	31.2	2340±12.5%	≤0.3	≥0.47	≤15	341±5%
PU-PC50276	Φ50×Φ27×6	29.3	2100±12.5%	≤0.3	≥0.47	≤15	341±5%
PU-PC603010	Φ60×Φ30×10	25.3	1922±12.5%	≤0.3	≥0.47	≤18	205±5%
