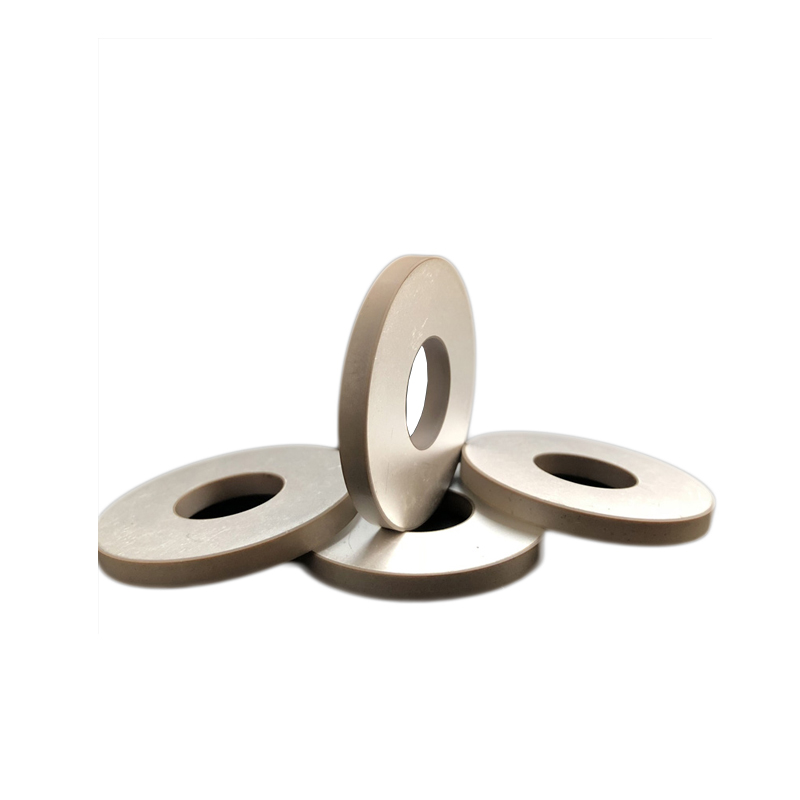

50*17*5 ultrasonic piezoelectric ceramics ring for transducer

Piezoelectric ceramic is a kind of information functional ceramic material which can convert mechanical energy and electrical energy into each other. Piezoelectric ceramic has not only piezoelectric properties, but also dielectric and elastic properties. It has been widely used in medical imaging, acoustic sensors, acoustic transducers, ultrasonic motors and so on. Piezoelectric ceramics are made by using the material under the mechanical stress, which causes the relative displacement of the positive and negative charge centers and polarization, resulting in the opposite sign of bound charges on the surface of both ends of the material, that is, piezoelectric effect. Piezoelectric ceramics are mainly used to manufacture ultrasonic transducers, underwater acoustic transducers, electroacoustic transducers, ceramic filters, ceramic transformers and ceramics Frequency discriminator, high-voltage generator, infrared detector, surface acoustic wave device, electro-optical device, ignition and detonation, piezoelectric gyroscope, etc., besides being used in high-tech field, it is more to serve people in daily life and to create a better life for people.





Piezoelectric ceramic disc, ceramic ring, rectangular piezoelectric pickup, ceramic tube, ceramic square, ceramic tile, all kinds of specifications can be customized.

Product Description:

Features of ultrasonic ceramic wafer products:

1. The impedance is less than 2 ohm

2. The waveform is stable

3. High electromechanical conversion efficiency

4. Low dielectric loss

5. Low calorific value

spec	Dimension (mm)	Radial frequency (KHz)	Capacitance (pf)	Dielectric dissipation factor tanδ(%)	Electromechanical coupling coefficient (Kr)	Impedance Zr(Ω)	Thickness frequency (KHz)
PU-PC25103	Φ25×Φ10×3	66.4	1240±12.5%	≤0.3	≥0.46	≤15	683±5%
PU-PC225104	Φ25×Φ10×4	66.4	930±12.5%	≤0.3	≥0.46	≤15	512±5%
PU-PC40155	Φ40×Φ12×5	45.9	2070±12.5%	≤0.3	≥0.46	≤15	410±5%
PU-PC40155	Φ40×Φ15×5	42.2	1960±12.5%	≤0.3	≥0.46	≤15	323±5%
PU-PC40176	Φ40×Φ17×6	40.5	1555±12.5%	≤0.3	≥0.46	≤15	341±5%
PU-PC40205	Φ40×Φ20×5	37.9	1700±12.5%	≤0.3	≥0.47	≤15	410±5%
PU-PC50206	Φ50×Φ20×6	33.2	2490±12.5%	≤0.3	≥0.46	≤15	341±5%
PU-PC501765	Φ50×Φ17×6.5	34.8	2430±12.5%	≤0.3	≥0.46	≤15	315±5%
PU-PC50236	Φ50×Φ23×6	31.2	2340±12.5%	≤0.3	≥0.47	≤15	341±5%
PU-PC50276	Φ50×Φ27×6	29.3	2100±12.5%	≤0.3	≥0.47	≤15	341±5%
PU-PC603010	Φ60×Φ30×10	25.3	1922±12.5%	≤0.3	≥0.47	≤18	205±5%
