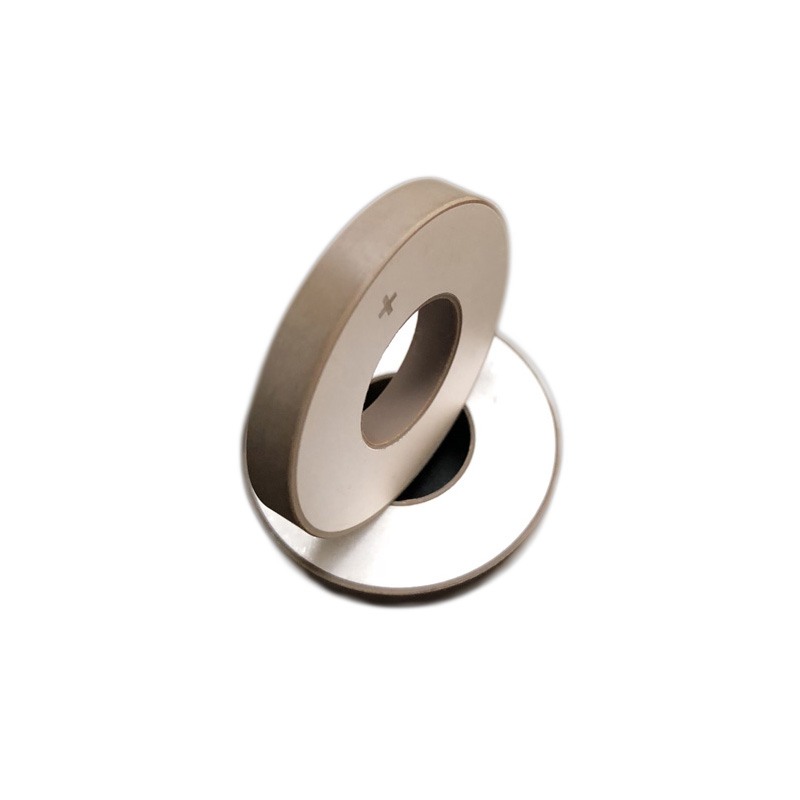

Pzt-4/8 Piezo Ceramic Ring Piezoelectric Transducer

Piezoelectric ceramics are widely used in our daily production and life. The first choice for piezoelectric ceramic production is to select professional manufacturers with piezoelectric ceramic R & D team. Weifang Jude electronics fully meets your needs, and can be customized according to the special needs of customers for piezoelectric ceramics.



The company is a high-tech enterprise specializing in the design, development and production of piezoelectric ceramic series products. The company has an experienced R & D team and employs many famous domestic experts in the piezoelectric ceramic industry. Relying on advanced technology and production technology, the series of piezoelectric ceramic products have excellent performance and stable quality. Products are widely used in ultrasonic cleaner, welding, detection, medical B ultrasound, beauty instruments, underwater acoustic energy conversion, micro drive, ultrasonic flowmeter and many other fields.

spec	Dimension (mm)	Radial frequency (KHz)	Capacitance (pf)	Dielectric dissipation factor tanδ(%)	Electromechanical coupling coefficient (Kr)	Impedance Zr(Ω)	Thickness frequency (KHz)
PU-PC25103	Φ25×Φ10×3	66.4	1240±12.5%	≤0.3	≥0.46	≤15	683±5%
PU-PC225104	Φ25×Φ10×4	66.4	930±12.5%	≤0.3	≥0.46	≤15	512±5%
PU-PC40155	Φ40×Φ12×5	45.9	2070±12.5%	≤0.3	≥0.46	≤15	410±5%
PU-PC40155	Φ40×Φ15×5	42.2	1960±12.5%	≤0.3	≥0.46	≤15	323±5%
PU-PC40176	Φ40×Φ17×6	40.5	1555±12.5%	≤0.3	≥0.46	≤15	341±5%
PU-PC40205	Φ40×Φ20×5	37.9	1700±12.5%	≤0.3	≥0.47	≤15	410±5%
PU-PC50206	Φ50×Φ20×6	33.2	2490±12.5%	≤0.3	≥0.46	≤15	341±5%
PU-PC501765	Φ50×Φ17×6.5	34.8	2430±12.5%	≤0.3	≥0.46	≤15	315±5%
PU-PC50236	Φ50×Φ23×6	31.2	2340±12.5%	≤0.3	≥0.47	≤15	341±5%
PU-PC50276	Φ50×Φ27×6	29.3	2100±12.5%	≤0.3	≥0.47	≤15	341±5%
PU-PC603010	Φ60×Φ30×10	25.3	1922±12.5%	≤0.3	≥0.47	≤18	205±5%
