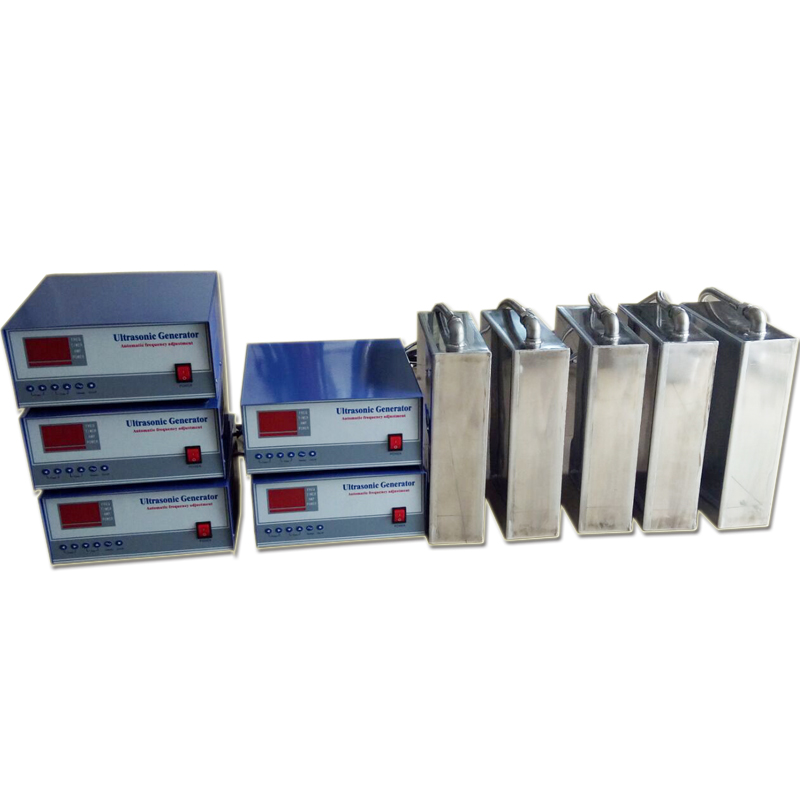

40khz Submersible Ultrasonic Transducers For Cleaning Tank

Hardware electroplating Submersible Ultrasonic Transducer and vibration plate are the most important parts of ultrasonic cleaning. The ultrasonic transducer is welded and planted with screws and pasted with glue. Using German technology, the transducer is pasted inside the vibrating plate, and then the ultrasonic vibration plate is sealed, so as to realize the purpose of placing the ultrasonic transducer in the cleaning solution, and then provided by the ultrasonic generator The ultrasonic power supply makes the ultrasonic transducer produce ultrasonic energy. Through the transmission of water, cavitation and impact flow are formed in the water, so as to achieve the effect of cleaning the stains on the surface of the workpiece.



The characteristics of shock plate of immersion ultrasonic cleaning machine for hardware electroplating are as follows:



1. The workpiece is cleaned by ultrasonic vibration plate, and the cleaning speed is fast;

2. The cleanliness of workpieces is high and the cleanliness of all workpieces is consistent, which improves the efficiency of production and cleaning, saves electric energy and has low failure rate.

3. The cleaning effect of the workpiece is good after the equipment cleaning, and the deep hole, slit and hidden part of the workpiece can also be cleaned;

4. The immersion ultrasonic vibration plate is used to clean the workpiece surface without damage;

4. It is safe and reliable without manual contact with cleaning fluid, saving solvent, heat energy, working site and manual work;

5. Before and after the factory can be equipped with anti rust, phosphating, rinsing, drying and other process work.

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
PU-UITP300W	300*190*100	25,28,33,40,80,130	300	6
PU-UITP600W	360*275*100	25,28,33,40,80,130	600	12
PU-UITP1000W	450*350*100	25,28,33,40,80,130	1000	20
PU-UITP1200W	470*380*100	25,28,33,40,80,130	1200	24
PU-UITP1500W	520*450*100	25,28,33,40,80,130	1500	30
PU-UITP1800W	560*450*100	25,28,33,40,80,130	1800	36
PU-UITP2000W	650*450*100	25,28,33,40,80,130	2000	40
PU-UITP2400W	740*520*100	25,28,33,40,80,130	2400	48
PU-UITP3000W	820*540*100	25,28,33,40,80,130	3000	60
PU-UITP5000W	1200*590*100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
