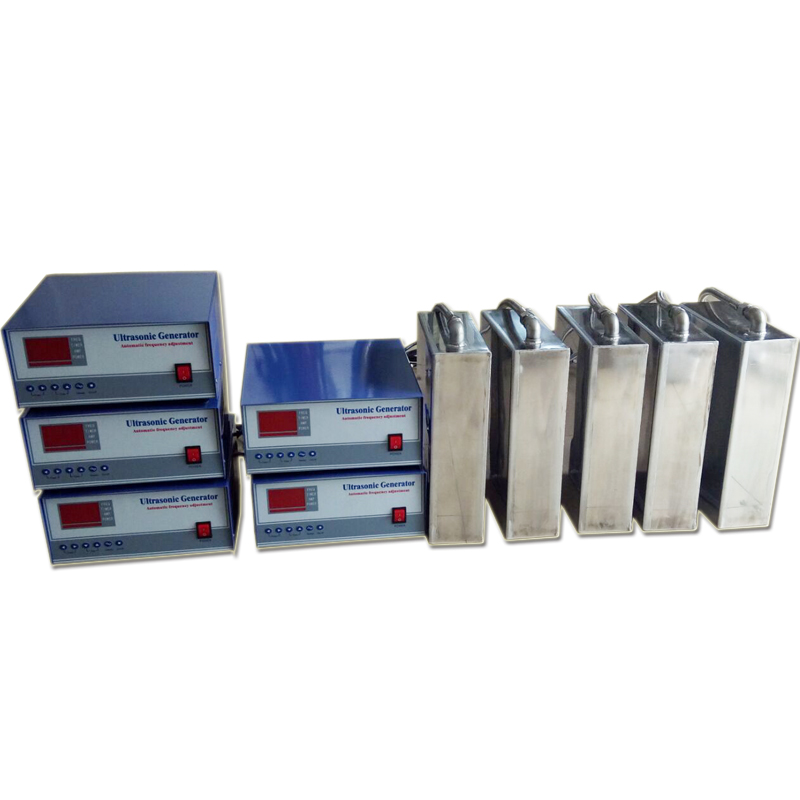

40khz Submersible Ultrasonic Transducers with Generator

Material of Submersible Ultrasonic Transducer: the vibration plate is made of imported SUS304 2.5mm stainless steel plate, and the vibration surface is made of SUS316 2.5mm stainless steel plate.



1. Surface: electroplate hard chromium 5um on ultrasonic vibration surface to enhance service life of vibration surface.

2. Structure: the whole machine is equipped with a movable hook device, which is easy to install or move. The ultrasonic transducer is fixed with special imported glue and welding screws. The ultrasonic transducer has a long and durable life. The frequency is 25kHz / 28kHz / 40KHz. The whole machine is made of stainless steel.

3. Electrical system: all electrical components are made of imported high-quality parts, so as to achieve zero fault, and reduce unnecessary trouble caused by the need for professional on-site maintenance in the process of use.

4. Ultrasonic generator: digital frequency synthesis technology under the control of microcomputer, ultrasonic power can be continuously adjusted (digital display), with perfect protection functions: overheat and over-current protection, and four bit timer to make time control accurate to seconds. At the same time, it also has frequency sweep function.

4. Power supply: heating: 220 V / 50 Hz

5. Scope of application: hardware, electroplating, electronics, clocks, machinery, tools, glasses, jewelry, semiconductor silicon, polyester spinneret, polyester filter and glassware cleaning.

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
PU-UITP300W	300*190*100	25,28,33,40,80,130	300	6
PU-UITP600W	360*275*100	25,28,33,40,80,130	600	12
PU-UITP1000W	450*350*100	25,28,33,40,80,130	1000	20
PU-UITP1200W	470*380*100	25,28,33,40,80,130	1200	24
PU-UITP1500W	520*450*100	25,28,33,40,80,130	1500	30
PU-UITP1800W	560*450*100	25,28,33,40,80,130	1800	36
PU-UITP2000W	650*450*100	25,28,33,40,80,130	2000	40
PU-UITP2400W	740*520*100	25,28,33,40,80,130	2400	48
PU-UITP3000W	820*540*100	25,28,33,40,80,130	3000	60
PU-UITP5000W	1200*590*100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
