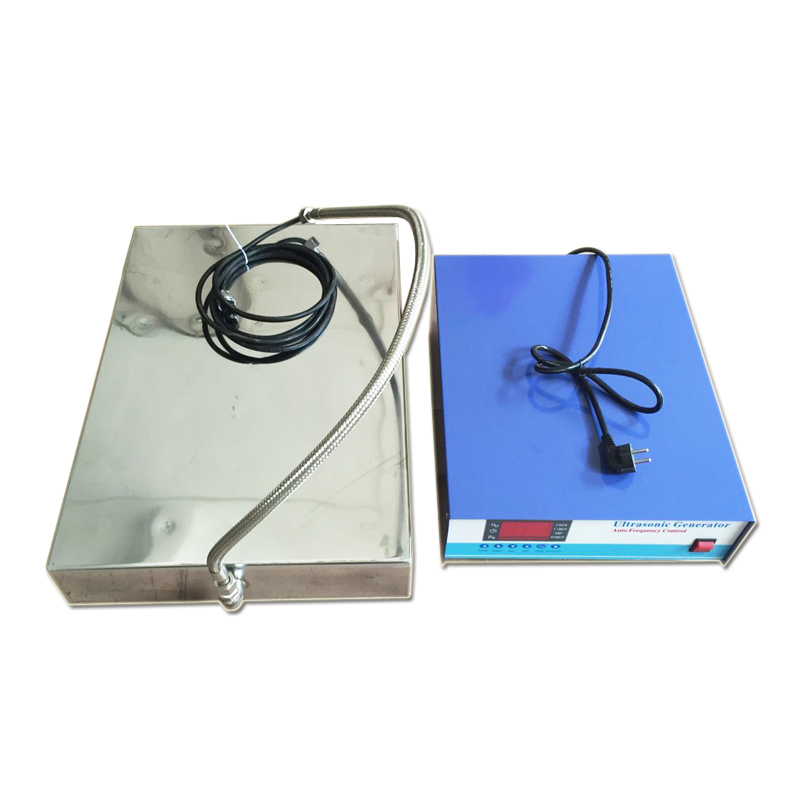

40khz submersible ultrasonic generator and transducer

Submersible Ultrasonic Transducer Product features

The ultrasonic vibration plate made of special technology and material has the characteristics of high stability and long service life

1. The specially designed and carefully processed transducer has excellent performance and good consistency. The surface of vibration box is plated with hard chromium protective layer. The electroacoustic conversion efficiency of small signal can reach more than 96%.

2. The ultrasonic transducer is fixed with special imported glue and welding screw. The professional bonding process can avoid the consideration of degumming. The advantages of the ultrasonic transducer are small heat output, low failure rate and smooth transmission path of sound wave.

3. The excellent high temperature resistance makes the vibration plate work stably in 100 ℃ boiling water for a long time.

4. With the increase of the number of transducers, the actual working power of each transducer is 70 ~ 80% of the designed rated value, and the working life of the transducer is prolonged, and its average working life is more than 12000 hours



5. Ultrasonic generator: digital frequency synthesis technology under the control of microcomputer, ultrasonic power can be continuously adjusted (digital display), with perfect protection functions: overheat and over-current protection, and four bit timer to make time control accurate to seconds. At the same time, it also has frequency sweep function.

6. Power supply: heating: 220 V / 50 Hz

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
PU-UITP300W	300*190*100	25,28,33,40,80,130	300	6
PU-UITP600W	360*275*100	25,28,33,40,80,130	600	12
PU-UITP1000W	450*350*100	25,28,33,40,80,130	1000	20
PU-UITP1200W	470*380*100	25,28,33,40,80,130	1200	24
PU-UITP1500W	520*450*100	25,28,33,40,80,130	1500	30
PU-UITP1800W	560*450*100	25,28,33,40,80,130	1800	36
PU-UITP2000W	650*450*100	25,28,33,40,80,130	2000	40
PU-UITP2400W	740*520*100	25,28,33,40,80,130	2400	48
PU-UITP3000W	820*540*100	25,28,33,40,80,130	3000	60
PU-UITP5000W	1200*590*100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
