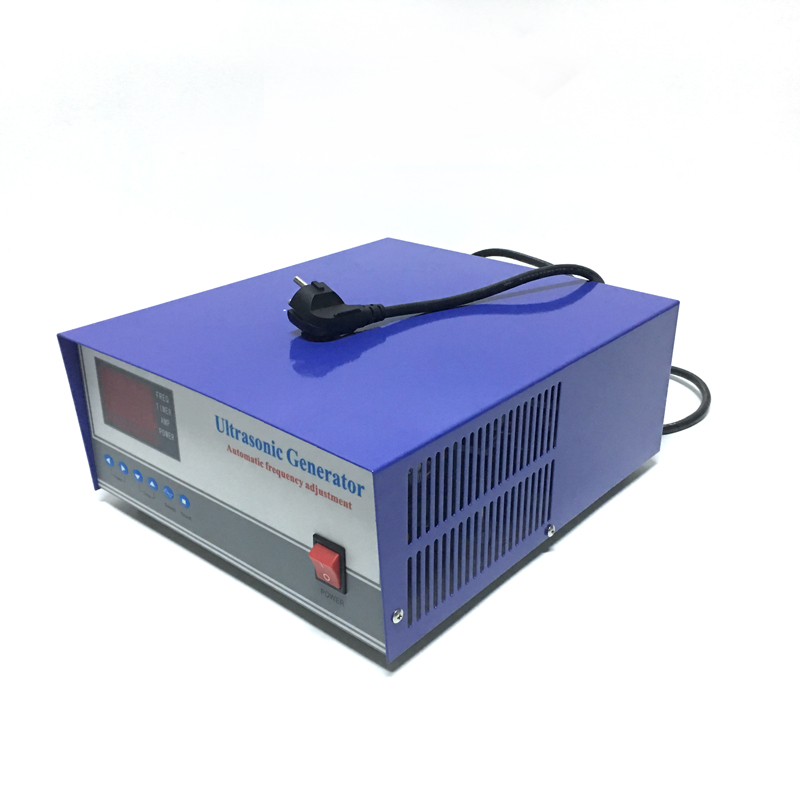

28khz/40khz Ultrasonic Transducer Power Supply

Ultrasonic cleaning generator also has all functions of 2012 digital display machine

1. Microcomputer control and digital frequency synthesis technology are adopted to track and adjust the frequency automatically;

2. The power of the digital ultrasonic generator can be adjusted continuously, which is more flexible and convenient to use;

3. Design timing system, working time digital display, adjustable;

4. Sweep frequency and sweep frequency, with effective protection function;

5. The PLC remote control interface of ultrasonic power supply is set to facilitate the connection with other control equipment;

6. Constant power output stability technology, not affected by voltage and load, protect equipment;

7. Power full touch humanized button control, debugging operation is convenient and fast.

8. More efficient, more environmentally friendly, output useful power up to 98%.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PU-GT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PU-GT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PU-GT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PU-GT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PU-GT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PU-GT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PU-GT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PU-GT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PU-GT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PU-GT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz
