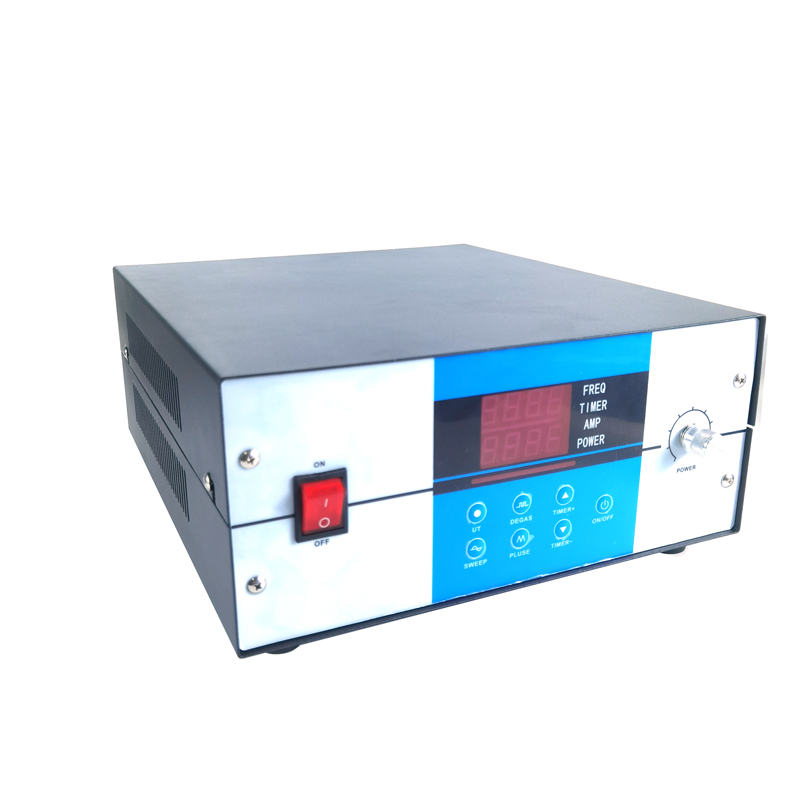

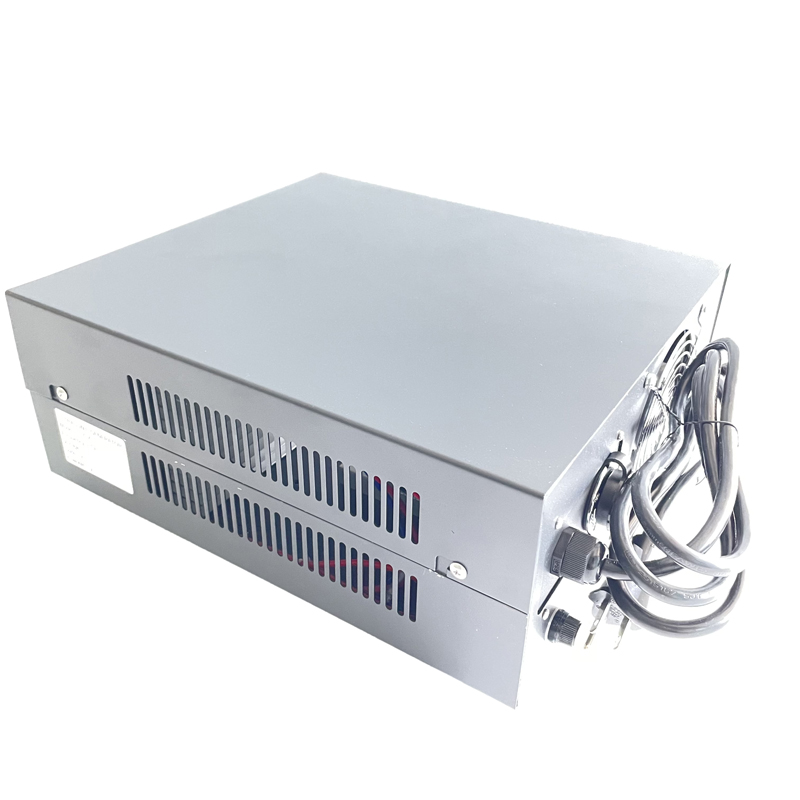

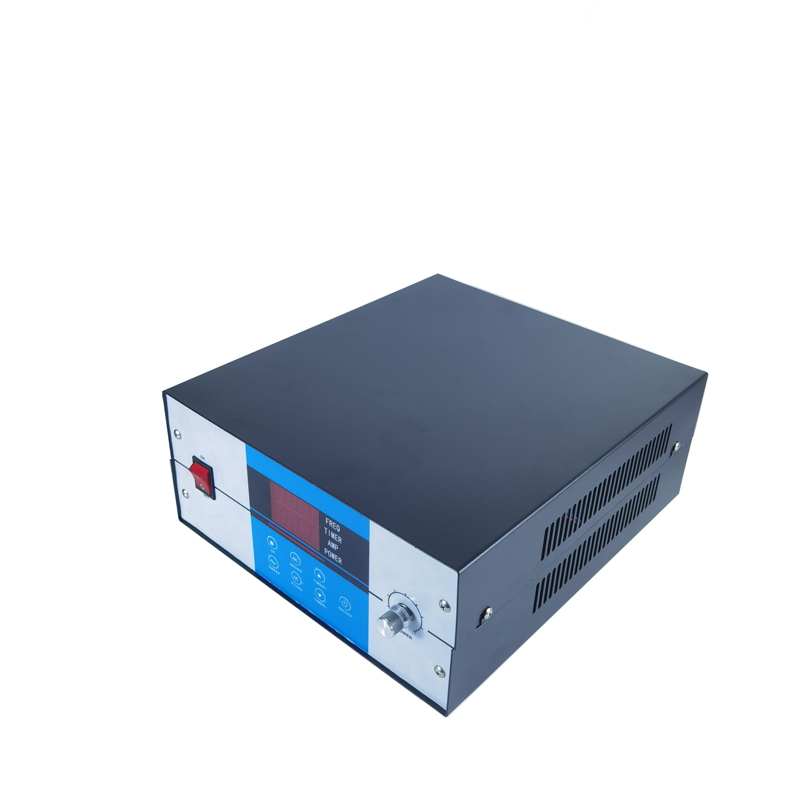

28khz/40khz Ultrasonic Generators for Industial Cleaning

Price：¥

Service quality：

Ultrasonic generator to produce a specific frequency signal, this signal can be a sine signal, can also be a pulse signal, this specific frequency is the frequency of transducer work.

The ultrasonic frequency commonly used in ultrasonic equipment is 20kHz, 25kHz, 28kHz, 33khz, 40KHz, 60KHZ, 80kHz, 100kHz or above, which has not been widely used.

Using the latest excitation control circuit, the ultrasonic density has been greatly improved, the cleaning work is more meticulous, and the cleanliness is higher. The ultrasonic power generator has the function of sweeping frequency. In the cleaning process, the ultrasonic frequency is swept back and forth within a reasonable range, which drives the cleaning fluid to form a fine backflow, so that the dirt on the workpiece is quickly taken away from the surface of the workpiece when it is peeled off by ultrasonic wave, and the cleaning efficiency is improved. Original imported high power tube drive, up to 95% power factor, to ensure strong output power. It can also quickly remove the dirt with strong adhesion. In the working state, real-time frequency tracking is realized. Ensure that in the case of water temperature, number of workpieces, cleaning agent changes, the generator can keep automatic frequency tracking at any time to achieve the best working state of matching transducer frequency.

The ultrasonic generator can monitor the working frequency and power of high-power ultrasonic system.

(1) According to different requirements of users, it can adjust various parameters in real time, such as power, amplitude, running time, etc.

(2) Frequency fine adjustment: adjust the frequency to make the ultrasonic transducer work in the best state all the time, the efficiency reaches the maximum, and the adjustment range is 2%.

(3) Automatic frequency following: once the initial setting of the equipment is completed, it can work continuously without adjusting the generator.

(4) Amplitude control: when the load changes during the working process of the transducer, it can automatically adjust the driving characteristics to ensure the stable amplitude of the tool head.

(5) System protection: when the system works in an unsuitable operating environment, the generator will stop working and alarm display to protect the equipment from damage.

(6) Amplitude adjustment: the amplitude can be increased or decreased instantaneously in the working process, and the amplitude setting range is 0% ~ 100%.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PU-GT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PU-GT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PU-GT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PU-GT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PU-GT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PU-GT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PU-GT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PU-GT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PU-GT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PU-GT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz

TAG ultrasonic： 28khz ultrasonic generator 40khz ultrasonic generator Frequency Ultrasonic Generator
