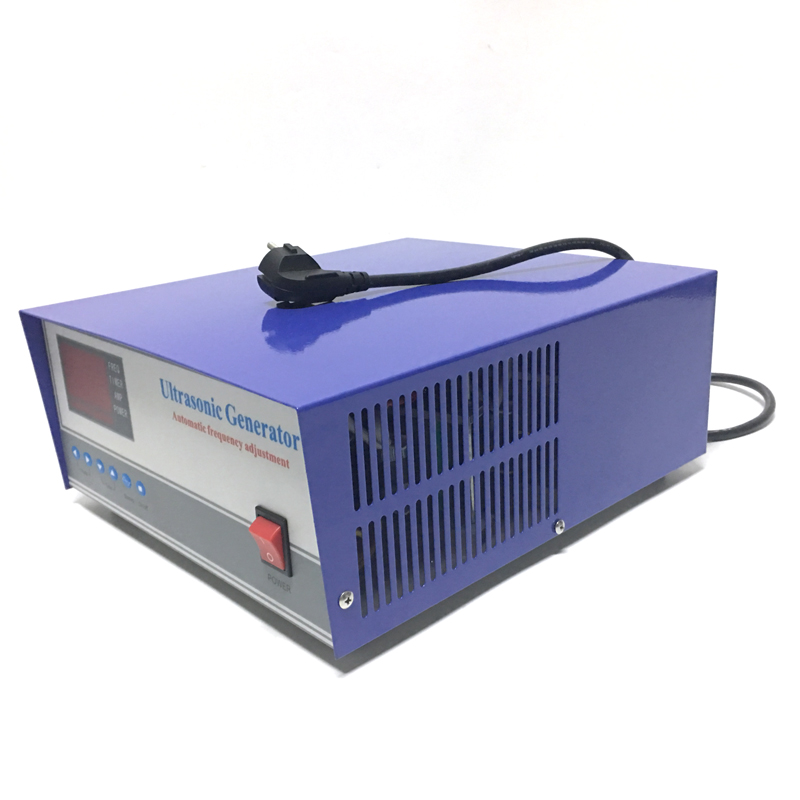

110V/220V/28khz/40khz Sweep-Frequency ultrasonic Generator

The Ultrasonic cleaning generator has the function of frequency fine adjustment, the range of adjustment is 2%. Under different working conditions, the transducer can always work in the state, and the energy exchange efficiency can reach the effect under different working conditions.

The ultrasonic generator has the function of sweeping frequency. In the cleaning process, the ultrasonic frequency is swept back and forth within a reasonable range to drive the cleaning fluid to form a fine backflow, so that the dirt on the workpiece is quickly taken away from the surface of the workpiece while being peeled by the ultrasonic wave, thus improving the cleaning efficiency.

The ultrasonic generator has the function of power adjustment. The output power can be adjusted continuously from 10% to 100% to meet the requirements of various cleaning objects.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PU-GT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PU-GT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PU-GT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PU-GT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PU-GT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PU-GT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PU-GT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PU-GT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PU-GT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PU-GT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz

TAG ultrasonic： Adjustable 20khz-40khz 2400w Ultrasonic Generator Sweep-Frequency Generator Circuit Vibration Cleaner Ultrasonic Sweep Generator Module RS485
