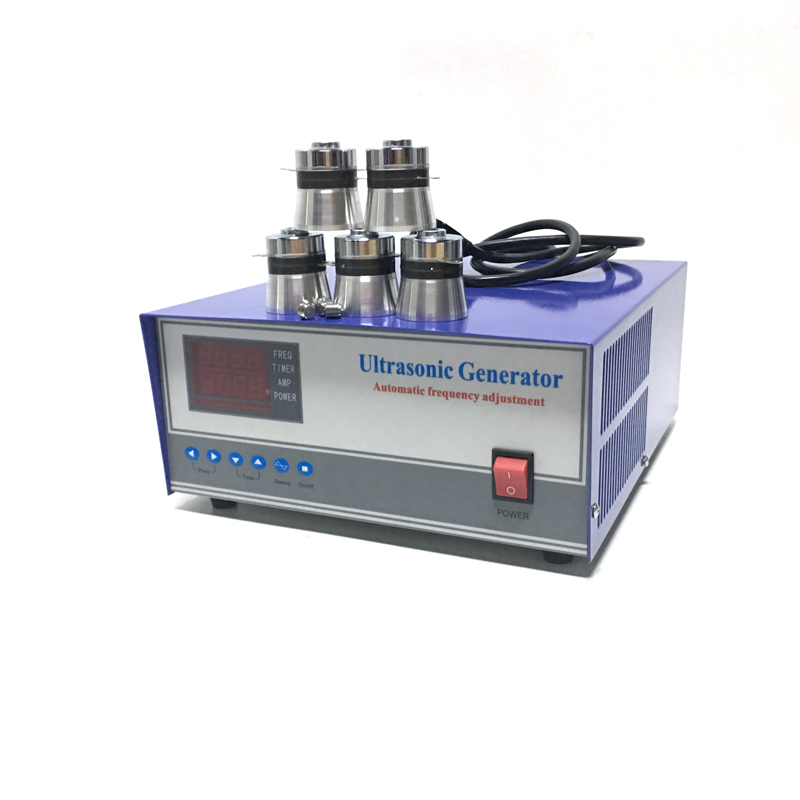

28khz/40khz/80khz ultrasonic power generator box

The main performance characteristics of Ultrasonic cleaning generator (ultrasonic power supply) are as follows:

The ultrasonic generator power and frequency are stepless adjustable, so that the output matching effect is achieved, and the resonance efficiency is higher. Using advanced microcomputer control technology and new circuit design concept, a new generation of multi-functional super

Special power source for sonic cleaning machine. The source and control part of the signal generator adopts digital frequency synthesis technology controlled by microcomputer. The digital ultrasonic power can be adjusted continuously, so it is more flexible to use. More powerful, more efficient. It has perfect protection function: overheat protection and over-current protection, working more reliable. Four digit timer, time control accurate to seconds, to ensure the quality of your work.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PU-GT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PU-GT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PU-GT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PU-GT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PU-GT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PU-GT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PU-GT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PU-GT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PU-GT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PU-GT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz

TAG ultrasonic： 1000Watt ultrasonic cleaner generator circuit diagram Ultrasonic Oscillating Screen Power Box Ultrasonic Power Generator
