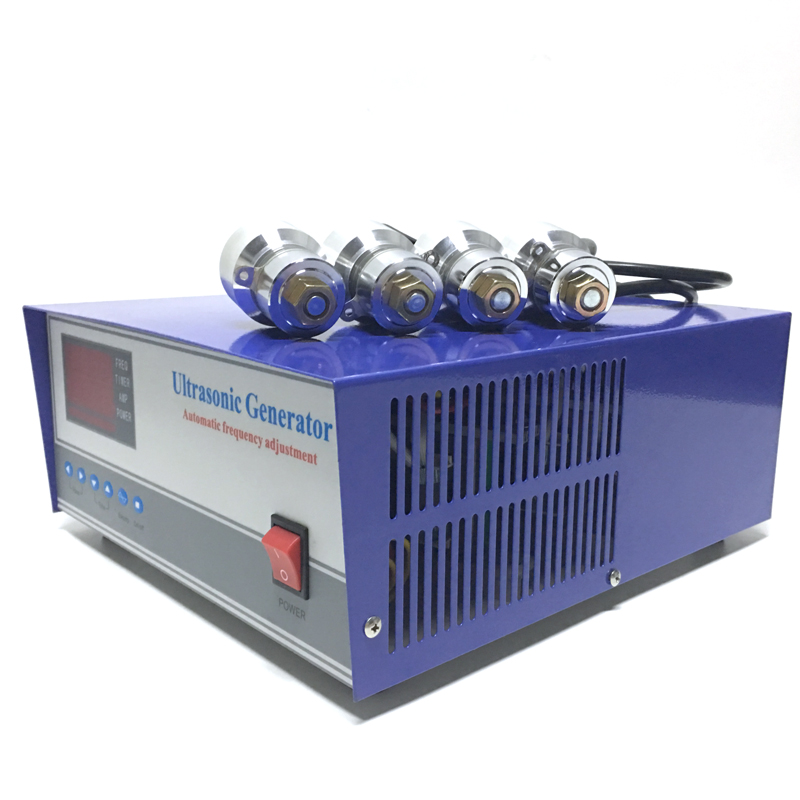

digital Ultrasonic Sound Generator for cleaning tank

Professional production of anti-corrosion Digital Ultrasonic Generator for ultrasonic cleaning machine factory, electroplating equipment factory, dishwasher factory, vibrating screen factory, matching generator power supply, complete machine characteristics

1. Sweep frequency function: sweep frequency circuit in the international market, effectively protect the shock plate;

2. IGBT power output components are all imported devices, which have the advantages of small size, high power and fast response;

3. Power tube: adopt 90a / 1200V imported tube from Toshiba of Japan to eliminate the possibility of burning tube;

4. Unique sealing and anti-corrosion technology ensures long-term stable and reliable operation of internal circuit board;

5. The output power is up to 97% and the ultrasonic cavitation density is greatly increased;

6. The output current is sine wave, which can prolong the service life of transducer and generator;

7. Wide range matching frequency: adjustable 20khz-42khz ultrasonic power supply, suitable for all kinds of ultrasonic transducer (factory setting);

8. Constant output design, the output current ripple is small, the output is more stable, protect the transducer from damage;

9. Output over-current, short-circuit protection, can protect the generator power tube.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PU-GT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PU-GT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PU-GT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PU-GT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PU-GT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PU-GT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PU-GT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PU-GT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PU-GT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PU-GT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz
