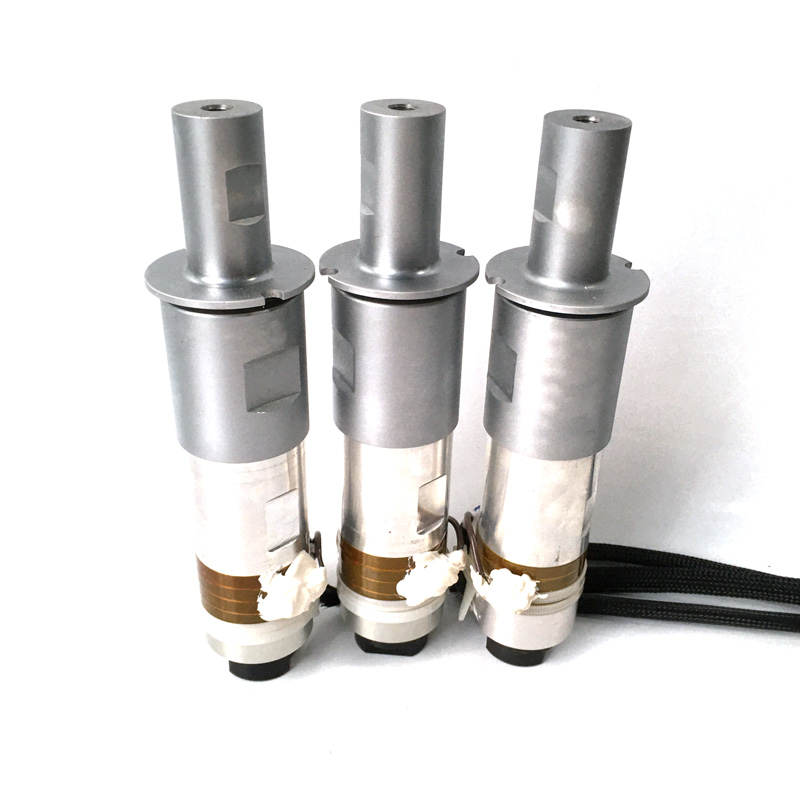

2000W/15khz/20khz ultrasonic welder transducer booster

Working mode of Ultrasonic Welding Transducer:



Due to different processing methods and requirements, the working mode of transducer can be roughly divided into continuous operation (lace machine, CD sleeve machine, zipper machine, metal welding, etc.) and pulse type work (such as plastic welding machine). Different working modes have different requirements for the transducer. Generally speaking, continuous operation has almost no pause time, but the working current is not very large. Pulse operation is intermittent, with pause, but the instantaneous current is very large. On average, the power in both States is very high.



Transducer type and maximum power



The manufacturer of the whole machine may have different regulations on the nominal power of machines for different purposes and purposes. In other words, the nominal power of the same transducer used in different machines may be different. In order to avoid ambiguity, the customer should specify the structural type of transducer, such as column type, inverted horn type, etc., as well as the diameter and number of piezoelectric ceramic wafers.



Installation and fit dimensions



There are mainly horn material, surface treatment, shape. Connecting thread between transducer and horn, connecting thread between horn and die, diameter, thickness, number and position of notch or screw hole at flange of horn.

Type	Full-length（mm）	Joint Bolt（mm）	Frequency（KHz）	Resonance Impedance（Ω）	Capacity（pF）	Input Power （W）
PU-UWT152500 P8	153	M20×1.5	15	15	13000	2500
PU-UWT152000 P8	167	M20×1.5	15	10	9500	2000
PU-UWT151500 P4	171	M18×1.5	15	12	12500	1500
UCE-UWT151800 P4	118	M20×1.5	20	15	15000	1800
PU-UWT202000 P8	128	M18×1	20	10	11000	2000
PU-UWT202000 P8	124	M18×1.5	20	12	10000	1500
PU-UWT20700 P8	112	1/2-20 UNF	20	15	9000	700
PU-UWT20900 P8	133	1/2-20 UNF	20	15	10000	900
PU-UWT20600 P8	121	M18×1.5	20	15	6000	600
PU-UWT30500 P8	77	M10×1.5	30	5	5500	500
PU-UWT28200 P4	92.1	M10×1	28	20	3000	200
PU-UWT28100 P8	91	M8×1	28	25	2200	100
PU-UWT28250 P8	94	1/2-20 UNF	28	20	4000	250
PU-UWT202000 P8	128	1/2-20 UNF	20	10	20000	2000
PU-UWT201500 P8	124	1/2-20 UNF	20	10	16000	1500
PU-UWT201300 P8	128	1/2-20 UNF	20	10	12500	1300
PU-UWT201500 P8	132	1/2-20 UNF	20	10	11000	1500
PU-UWT20900 P8	123	1/2-20 UNF	20	10	9500	900
PU-UWT152000 P4	171	M18×1.5	15	12	10000	2000
PU-UWT35100 P8	71	M8×1	35	25	2200	100
PU-UWT38100 P8	66	M8×1.25	38	40	1200	100
PU-UWT38200 P4	65	M8×1	38	14	3300	200
