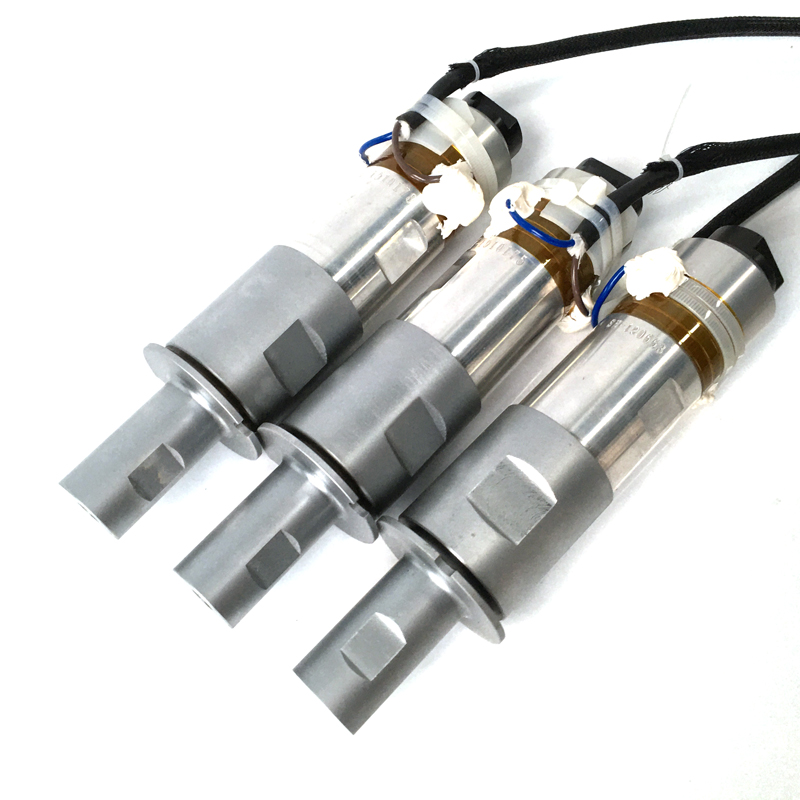

15K 4200w High Power Ultrasonic Welding N95 Masks Transducer

At present, the non-woven masks in circulation on the market are basically produced by ultrasonic mask machine. According to their shapes, they mainly include non-woven inner ear belt mask, non-woven cloth outer ear belt mask, non-woven cloth bandage type mask, non-woven cloth cup-shaped mask, non-woven fabric folding mask, non-woven fabric duck mouth mask, etc.

And these non-woven masks have the corresponding ultrasonic mask machine to produce.

The non-woven outer ear band mask is produced by ultrasonic mask body machine and ultrasonic mask ear belt machine

The ultrasonic generator, electric box and matching automatic ultrasonic welding equipment of non-woven ultrasonic mask machine can switch multiple transducers at the same time, greatly reducing the production cost of automatic equipment.

Type	Full-length（mm）	Joint Bolt（mm）	Frequency（KHz）	Resonance Impedance（Ω）	Capacity（pF）	Input Power （W）
PU-UWT152500 P8	153	M20×1.5	15	15	13000	2500
PU-UWT152000 P8	167	M20×1.5	15	10	9500	2000
PU-UWT151500 P4	171	M18×1.5	15	12	12500	1500
UCE-UWT151800 P4	118	M20×1.5	20	15	15000	1800
PU-UWT202000 P8	128	M18×1	20	10	11000	2000
PU-UWT202000 P8	124	M18×1.5	20	12	10000	1500
PU-UWT20700 P8	112	1/2-20 UNF	20	15	9000	700
PU-UWT20900 P8	133	1/2-20 UNF	20	15	10000	900
PU-UWT20600 P8	121	M18×1.5	20	15	6000	600
PU-UWT30500 P8	77	M10×1.5	30	5	5500	500
PU-UWT28200 P4	92.1	M10×1	28	20	3000	200
PU-UWT28100 P8	91	M8×1	28	25	2200	100
PU-UWT28250 P8	94	1/2-20 UNF	28	20	4000	250
PU-UWT202000 P8	128	1/2-20 UNF	20	10	20000	2000
PU-UWT201500 P8	124	1/2-20 UNF	20	10	16000	1500
PU-UWT201300 P8	128	1/2-20 UNF	20	10	12500	1300
PU-UWT201500 P8	132	1/2-20 UNF	20	10	11000	1500
PU-UWT20900 P8	123	1/2-20 UNF	20	10	9500	900
PU-UWT152000 P4	171	M18×1.5	15	12	10000	2000
PU-UWT35100 P8	71	M8×1	35	25	2200	100
PU-UWT38100 P8	66	M8×1.25	38	40	1200	100
PU-UWT38200 P4	65	M8×1	38	14	3300	200
