ultrasonic welder transducer for plastic parts 15khz/20khz

Ultrasonic Welding Transducer Main features:



High efficiency: high mechanical quality factor, working at resonance frequency point can obtain high electro acoustic conversion efficiency.



Large amplitude: the structure optimized by computer has high vibration speed ratio and large amplitude of front cover plate.



High power: under the action of the prestressed screw, the energy of piezoelectric ceramics is maximized.



Good heat resistance: small resonance impedance, small calorific value and wide temperature range. High reliability and long life.

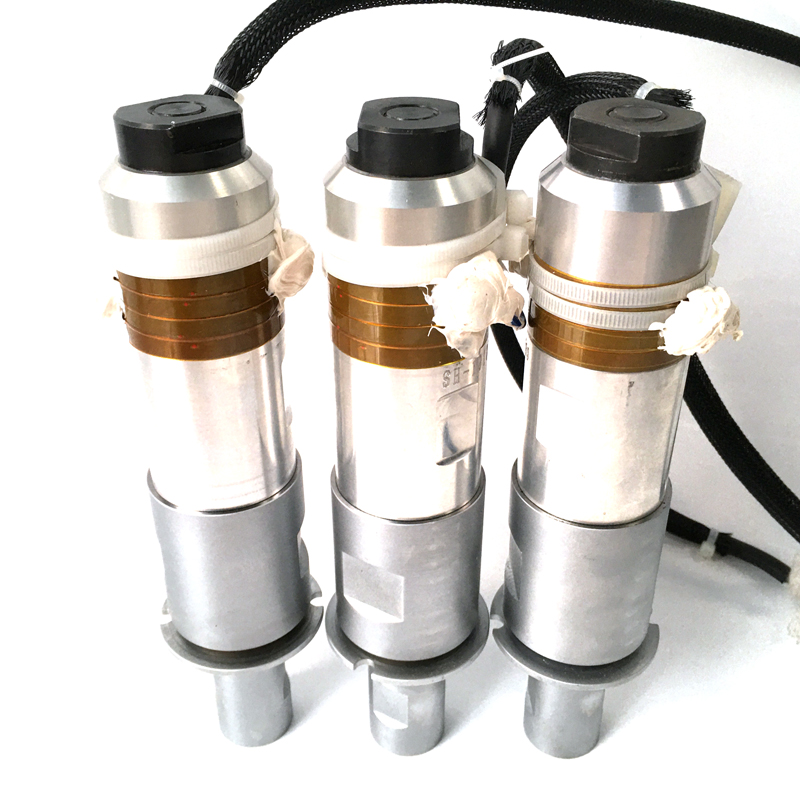

Several ultrasonic transducers



Ultrasonic welding transducer 15KHz 20KHz 28kHz ultrasonic transducer special vibrator for welding machine



Ultrasonic welding is a kind of technology that uses ultrasonic generator to drive ultrasonic transducer to generate heat energy by tens of thousands of times of vibration per second, which makes the plastic surface melt and join instantly. Therefore, the quality of ultrasonic transducer is an important factor to determine the function of welding machine. Ultrasonic vibration head produced by Jingda company has high output power, high conversion efficiency, low heating and quality Stable characteristics, is the best component of plastic welding machine.

Type	Full-length（mm）	Joint Bolt（mm）	Frequency（KHz）	Resonance Impedance（Ω）	Capacity（pF）	Input Power （W）
PU-UWT152500 P8	153	M20×1.5	15	15	13000	2500
PU-UWT152000 P8	167	M20×1.5	15	10	9500	2000
PU-UWT151500 P4	171	M18×1.5	15	12	12500	1500
UCE-UWT151800 P4	118	M20×1.5	20	15	15000	1800
PU-UWT202000 P8	128	M18×1	20	10	11000	2000
PU-UWT202000 P8	124	M18×1.5	20	12	10000	1500
PU-UWT20700 P8	112	1/2-20 UNF	20	15	9000	700
PU-UWT20900 P8	133	1/2-20 UNF	20	15	10000	900
PU-UWT20600 P8	121	M18×1.5	20	15	6000	600
PU-UWT30500 P8	77	M10×1.5	30	5	5500	500
PU-UWT28200 P4	92.1	M10×1	28	20	3000	200
PU-UWT28100 P8	91	M8×1	28	25	2200	100
PU-UWT28250 P8	94	1/2-20 UNF	28	20	4000	250
PU-UWT202000 P8	128	1/2-20 UNF	20	10	20000	2000
PU-UWT201500 P8	124	1/2-20 UNF	20	10	16000	1500
PU-UWT201300 P8	128	1/2-20 UNF	20	10	12500	1300
PU-UWT201500 P8	132	1/2-20 UNF	20	10	11000	1500
PU-UWT20900 P8	123	1/2-20 UNF	20	10	9500	900
PU-UWT152000 P4	171	M18×1.5	15	12	10000	2000
PU-UWT35100 P8	71	M8×1	35	25	2200	100
PU-UWT38100 P8	66	M8×1.25	38	40	1200	100
PU-UWT38200 P4	65	M8×1	38	14	3300	200
