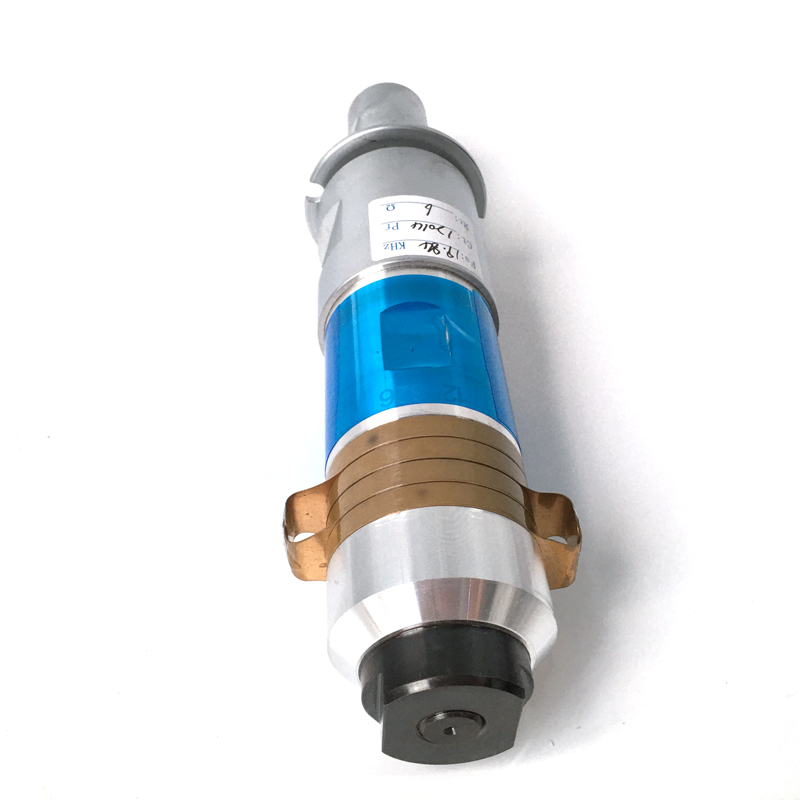

15khz/20khz/35khz Ultrasonic Welding Converter Transducer
Ultrasonic Welding Transducer is the conversion of 50 / 60 Hz current to 15, 20, 30 or 40 by ultrasonic generator
KHz power. The converted high-frequency electric energy is converted into mechanical operation of the same frequency again through the transducer
After that, the mechanical movement is transmitted to the welding head through a set of horn device which can change the amplitude. Welding head will
The received vibration energy is transmitted to the joint of the workpiece to be welded, in which the vibration energy is passed
Friction is converted into heat and the plastic is melted. Ultrasonic can not only be used to weld hard thermoplastic
It can also process fabrics and films. The main components of an ultrasonic welding system include ultrasonic generator
Generator, transducer / Horn / welding head, mould and frame. Application of linear vibration friction welding
The friction heat generated at the contact surface of two workpieces to be welded melts the plastic. Heat comes from a certain pressure
Next, a workpiece moves back and forth on another surface with a certain displacement or amplitude. Once the expectations are met
At the same time, there will still be a certain amount of pressure on the two workpieces,
The part just welded is cooled and solidified to form a close combination. Rail vibration friction welding
It is a welding method using friction heat energy. In the rail type vibration friction welding, the upper part of the
The workpiece moves in orbit at a fixed speed - circular motion in all directions. Movement can produce
Heat energy makes the welding part of two plastic parts reach the melting point. Once the plastic begins to melt, the movement stops
The welding parts of the two workpieces will solidify and firmly connect together. Small clamping force will cause the workpiece
To produce minimum deformation, workpieces within 10 inches in diameter can be rubbed by rail vibration
Carry out welding.
| Type | Full-length（mm） | Joint Bolt（mm） |
Frequency（KHz） |
Resonance Impedance（Ω） |
Capacity（pF） |
Input Power （W） |
|
PU-UWT152500 P8 |
153 |
M20×1.5 |
15 |
15 |
13000 |
2500 |
|
PU-UWT152000 P8 |
167 |
M20×1.5 |
15 |
10 |
9500 |
2000 |
|
PU-UWT151500 P4 |
171 |
M18×1.5 |
15 |
12 |
12500 |
1500 |
|
UCE-UWT151800 P4 |
118 |
M20×1.5 |
20 |
15 |
15000 |
1800 |
|
PU-UWT202000 P8 |
128 |
M18×1 |
20 |
10 |
11000 |
2000 |
|
PU-UWT202000 P8 |
124 |
M18×1.5 |
20 |
12 |
10000 |
1500 |
|
PU-UWT20700 P8 |
112 |
1/2-20 UNF |
20 |
15 |
9000 |
700 |
|
PU-UWT20900 P8 |
133 |
1/2-20 UNF |
20 |
15 |
10000 |
900 |
|
PU-UWT20600 P8 |
121 |
M18×1.5 |
20 |
15 |
6000 |
600 |
|
PU-UWT30500 P8 |
77 |
M10×1.5 |
30 |
5 |
5500 |
500 |
|
PU-UWT28200 P4 |
92.1 |
M10×1 |
28 |
20 |
3000 |
200 |
|
PU-UWT28100 P8 |
91 |
M8×1 |
28 |
25 |
2200 |
100 |
|
PU-UWT28250 P8 |
94 |
1/2-20 UNF |
28 |
20 |
4000 |
250 |
|
PU-UWT202000 P8 |
128 |
1/2-20 UNF |
20 |
10 |
20000 |
2000 |
|
PU-UWT201500 P8 |
124 |
1/2-20 UNF |
20 |
10 |
16000 |
1500 |
|
PU-UWT201300 P8 |
128 |
1/2-20 UNF |
20 |
10 |
12500 |
1300 |
|
PU-UWT201500 P8 |
132 |
1/2-20 UNF |
20 |
10 |
11000 |
1500 |
|
PU-UWT20900 P8 |
123 |
1/2-20 UNF |
20 |
10 |
9500 |
900 |
|
PU-UWT152000 P4 |
171 |
M18×1.5 |
15 |
12 |
10000 |
2000 |
|
PU-UWT35100 P8 |
71 |
M8×1 |
35 |
25 |
2200 |
100 |
|
PU-UWT38100 P8 |
66 |
M8×1.25 |
38 |
40 |
1200 |
100 |
|
PU-UWT38200 P4 |
65 |
M8×1 |
38 |
14 |
3300 |
200 |
