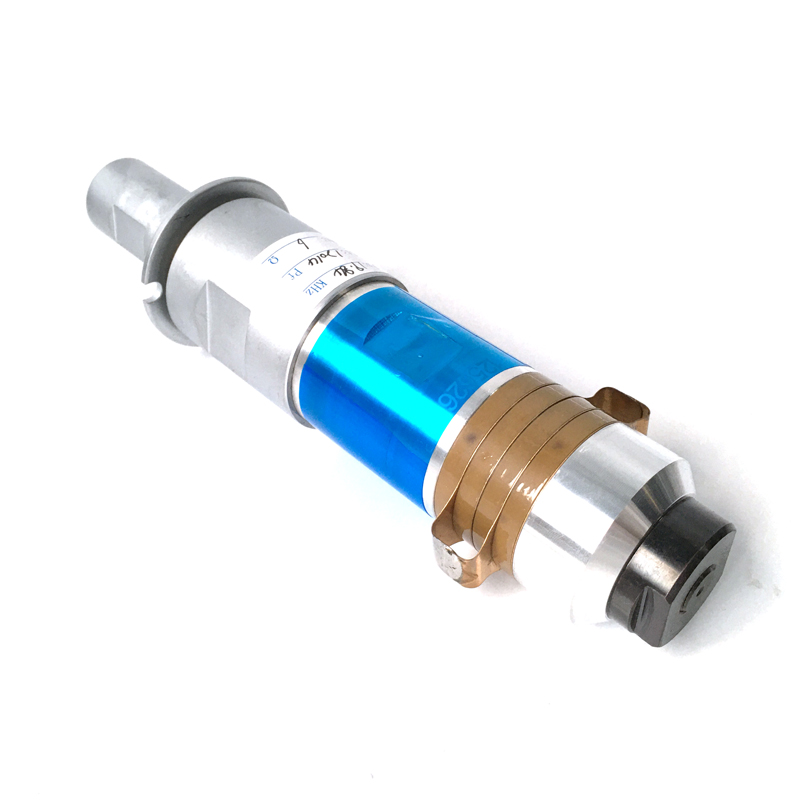

2000W Ultrasonic Welder Converter Transducer for plastic
Our company specializes in the production of Ultrasonic Welding Transducer, this product has high performance, long life, welding effect
With good performance, our company specializes in developing ultrasonic horn, transducer, vibrator and other ultrasonic accessories
[special titanium alloy material], stable performance, no corrosion, no rust, wear resistance, high temperature resistance, stable frequency
Yes.
Ultrasonic horn is an important part of ultrasonic vibration system, which is the main part of vibration system
The main function is to amplify the displacement or velocity of the particle in mechanical vibration, and concentrate the ultrasonic energy on the smaller surface
Therefore, it is also called ultrasonic gear lever or ultrasonic concentrator. Ultrasonic horn is widely used
In chemical industry, petroleum, plastic welding, metal welding, drilling, turning, cleaning, machining, etc
Areas.
As the name implies, the ultrasonic horn is used to change the ultrasonic vibration with the ultrasonic transducer
Dynamic range of functional components. Its main function is to change the amplitude of the transducer (generally increase), improve the vibration
Speed ratio, improve efficiency, improve mechanical quality factor, strengthen heat resistance, expand the range of suitable temperature, prolong
Long life of transducer. The ultrasonic transducer is adjusted by installing the horn (ultrasonic horn)
The load matching between the transducer and the ultrasonic tool head reduces the resonance impedance and makes it at resonance frequency
The work improves the efficiency of electroacoustic conversion, effectively reduces the heat output of ultrasonic transducer, and improves the service life.
| Type | Full-length（mm） | Joint Bolt（mm） |
Frequency（KHz） |
Resonance Impedance（Ω） |
Capacity（pF） |
Input Power （W） |
|
PU-UWT152500 P8 |
153 |
M20×1.5 |
15 |
15 |
13000 |
2500 |
|
PU-UWT152000 P8 |
167 |
M20×1.5 |
15 |
10 |
9500 |
2000 |
|
PU-UWT151500 P4 |
171 |
M18×1.5 |
15 |
12 |
12500 |
1500 |
|
UCE-UWT151800 P4 |
118 |
M20×1.5 |
20 |
15 |
15000 |
1800 |
|
PU-UWT202000 P8 |
128 |
M18×1 |
20 |
10 |
11000 |
2000 |
|
PU-UWT202000 P8 |
124 |
M18×1.5 |
20 |
12 |
10000 |
1500 |
|
PU-UWT20700 P8 |
112 |
1/2-20 UNF |
20 |
15 |
9000 |
700 |
|
PU-UWT20900 P8 |
133 |
1/2-20 UNF |
20 |
15 |
10000 |
900 |
|
PU-UWT20600 P8 |
121 |
M18×1.5 |
20 |
15 |
6000 |
600 |
|
PU-UWT30500 P8 |
77 |
M10×1.5 |
30 |
5 |
5500 |
500 |
|
PU-UWT28200 P4 |
92.1 |
M10×1 |
28 |
20 |
3000 |
200 |
|
PU-UWT28100 P8 |
91 |
M8×1 |
28 |
25 |
2200 |
100 |
|
PU-UWT28250 P8 |
94 |
1/2-20 UNF |
28 |
20 |
4000 |
250 |
|
PU-UWT202000 P8 |
128 |
1/2-20 UNF |
20 |
10 |
20000 |
2000 |
|
PU-UWT201500 P8 |
124 |
1/2-20 UNF |
20 |
10 |
16000 |
1500 |
|
PU-UWT201300 P8 |
128 |
1/2-20 UNF |
20 |
10 |
12500 |
1300 |
|
PU-UWT201500 P8 |
132 |
1/2-20 UNF |
20 |
10 |
11000 |
1500 |
|
PU-UWT20900 P8 |
123 |
1/2-20 UNF |
20 |
10 |
9500 |
900 |
|
PU-UWT152000 P4 |
171 |
M18×1.5 |
15 |
12 |
10000 |
2000 |
|
PU-UWT35100 P8 |
71 |
M8×1 |
35 |
25 |
2200 |
100 |
|
PU-UWT38100 P8 |
66 |
M8×1.25 |
38 |
40 |
1200 |
100 |
|
PU-UWT38200 P4 |
65 |
M8×1 |
38 |
14 |
3300 |
200 |
TAG ultrasonic： 2000W Branson Ultrasonic Converter transducer Ultrasonic 20khz Transducer for Welding 2000w
