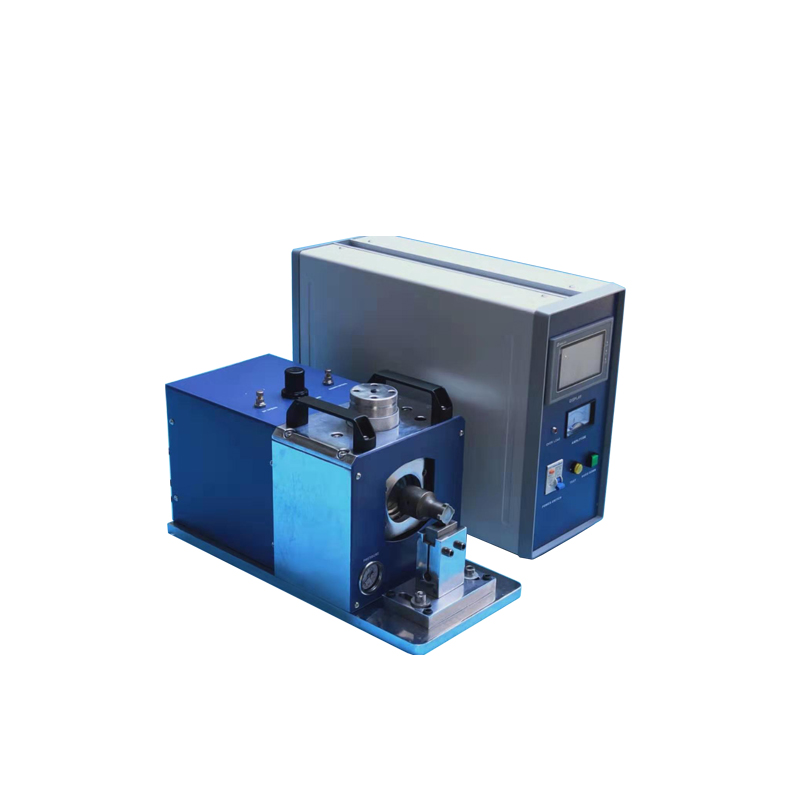

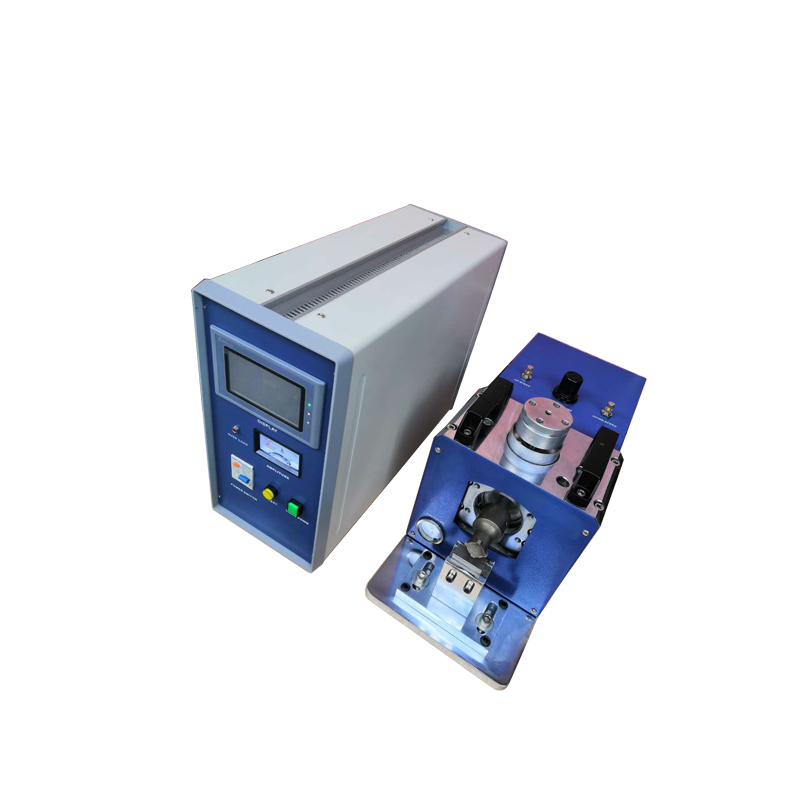

20khz 40khz ultrasonic metal spot welder machine for industrial

When the metal is welded by ultrasonic wave, the welding melting point can not be reached.

The welding process itself is very fast, usually in a few milliseconds or less than a second, so compared to other welding, workpiece welding only needs a very small heat.

In this welding field, this has a great technical advantage, it can effectively prevent from damaging the brittle crystallization area of two workpieces in the welding process, and then transfer to the solid material.

High welding strength is achieved by dispersing the atomic layer on the workpiece. The principle of ultrasonic metal welding is similar to molecular diffusion welding. This is generally used on coated, coated or uncoated and non-ferrous metals.

Scope of application

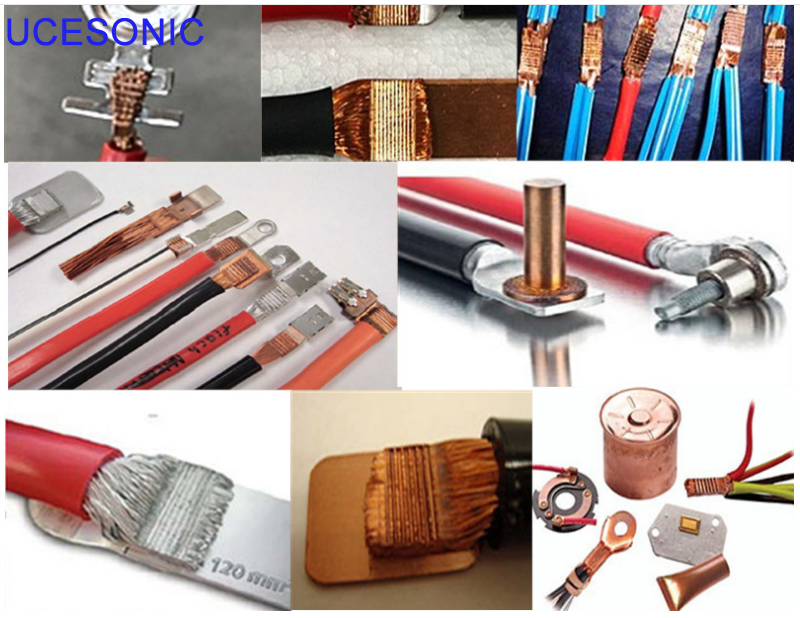

Ultrasonic metal welding has a wide range of applications, whether it is connecting metal wires, welding metal wire harness, connecting to automobile industry and electronic industry, or some special applications, such as enamel wire, foil and thin metal plate. Detailed examples are shown in the application examples.

Type	Power(W)	Frequency (KHz)
PU-MSW2000W	2000W	20KHZ
PU-MSW2600W	2600W	20KHZ
PU-MSW3200W	3200W	20KHZ
PU-MSW4000W	4000W	20KHZ
PU-MSW800W	800W	40KHZ
