20khz ultrasonic biodiesel reactor for Industrial

20khz ultrasonic biodiesel reactor for Industrial production: the production of bio oil diesel mixed emulsion by ultrasonic emulsification is actually to disperse the bio oil droplets into another diesel liquid which is immiscible with it. Compared with other technologies, the droplets can be dispersed fine and narrow, high efficiency, good dispersion effect, and can increase the stability of emulsion.

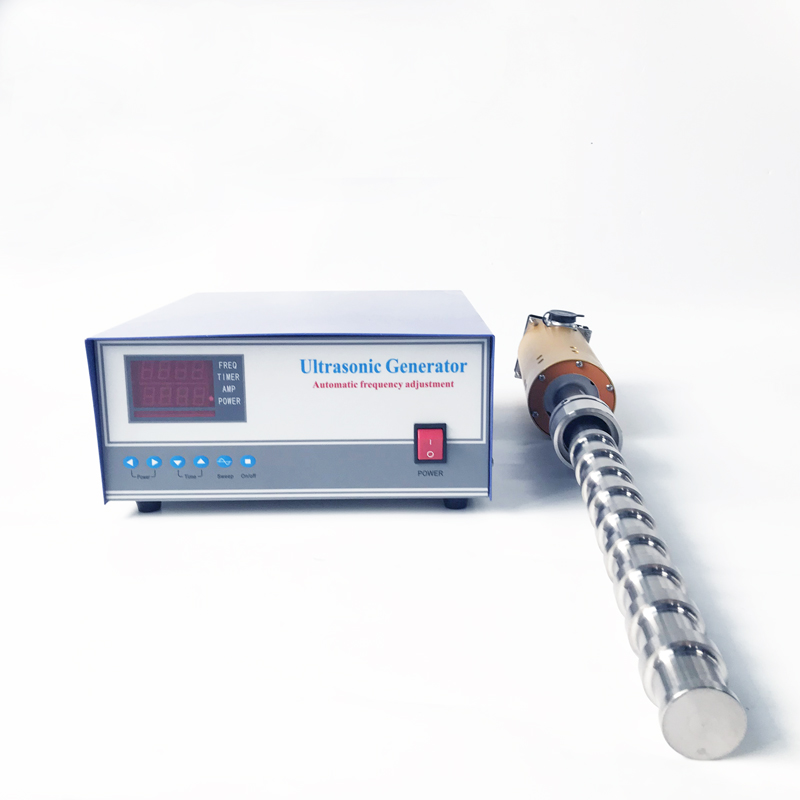

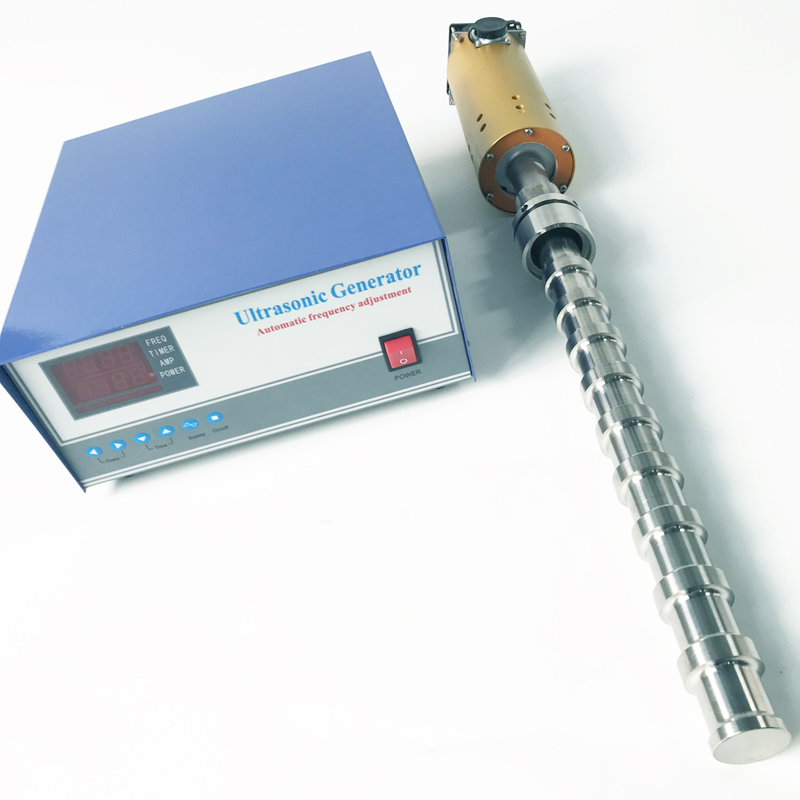

The ultrasonic vibrator is mainly composed of ultrasonic transducer, ultrasonic horn, ultrasonic tool head and ultrasonic driving power supply. Compared with the traditional ultrasonic vibration plate, it has the characteristics of wider application range and longer service life. In industrial application, ultrasonic vibration rod is a very mature and widely used technology for dispersion, extraction, cleaning, chemical reaction, water treatment and so on.

Very flexible

Performance characteristics:

1. It is suitable for all kinds of high-power industrial liquid treatment, such as homogenization, emulsification, dispersion, depolymerization and wet grinding (particle size reduction), cell fragmentation and disintegration, extraction, degassing and sonochemical processes;

2. Heavy load 24-hour continuous work, industrial design, external PLC remote control, automatic frequency search matching;

Tubular Equipment Type	Tubular Transducer Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
PU-UE1	US-61	15-28	1000	500	Φ50-55	68000
PU-UE5	US-25	15-28	1500	850	Φ50-55	68000
PU-UE6	US-16	15-28	2000	1100	Φ50-55	132000
