20khz Ultrasonic Extraction of Medicinal Herbs

Main, health products and other industries, widely used in traditional Chinese medicine, natural plant effective ingredients extraction, suitable for all kinds of solvents (water or ethanol, petroleum ether, acetone and other organic solvents); is the new extraction workshop, reconstruction and expansion; new drugs, new product development; medical science institutes, University pharmaceutical enterprises and enterprises engaged in the extraction of various methods from plant medicinal materials, animal medicinal materials It is an ideal extraction equipment for extraction of traditional Chinese medicine and natural products, experimental research, etc. the whole machine is small in size, beautiful in appearance, easy to clean and maintain, and meets the requirements of GMP certification.

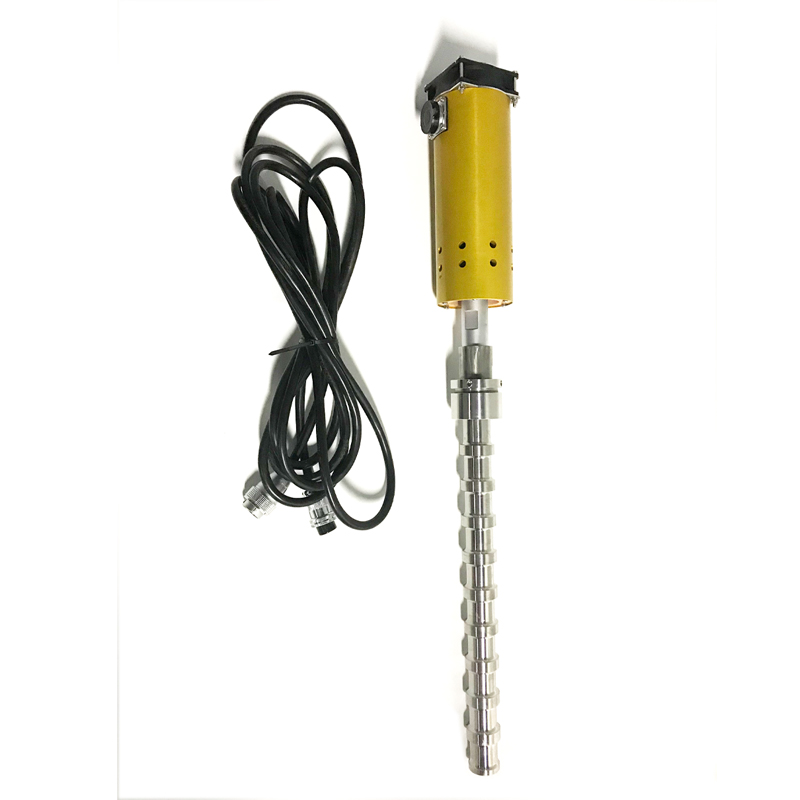

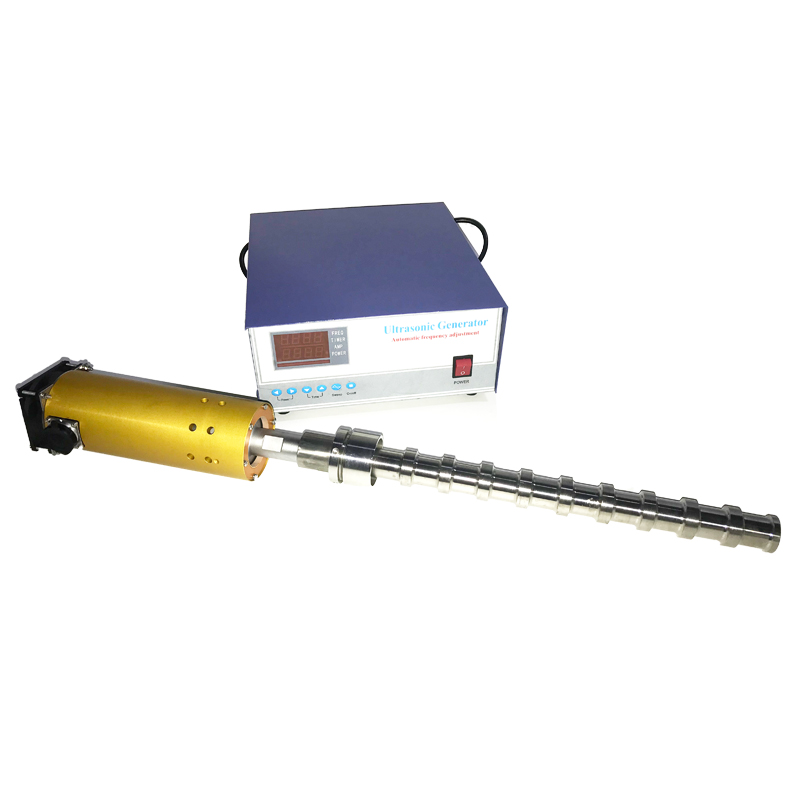

The pilot scale pipeline type multi-function ultrasonic extraction machine is a complete set of equipment for pipeline type production type extraction equipment. The ultrasonic extraction tubes equipped in both of them have the same control function. Therefore, the experimental data obtained have certain and practical guiding significance for the application of production type ultrasonic extraction complete set of equipment for production extraction.


Pilot scale pipeline type multi-functional ultrasonic extraction complete set of equipment, the main drug experimental research, extract Chinese medicine and natural products from a variety of medicinal materials, is the extraction equipment for medium-sized test in pharmaceutical research institutes and pharmaceutical industry. Ultrasonic frequency, ultrasonic power output is strong and weak.


Because the ultrasonic extraction tubes equipped with production pipeline type ultrasonic extraction machine and some small production applications are the same and similar in structure and size, and have the same control function, the obtained experimental data have real and practical guiding significance and important basis for the application of production type ultrasonic extraction complete set of equipment for production extraction.

Tubular Equipment Type	Tubular Transducer Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
PU-UE1	US-61	15-28	1000	500	Φ50-55	68000
PU-UE5	US-25	15-28	1500	850	Φ50-55	68000
PU-UE6	US-16	15-28	2000	1100	Φ50-55	132000
