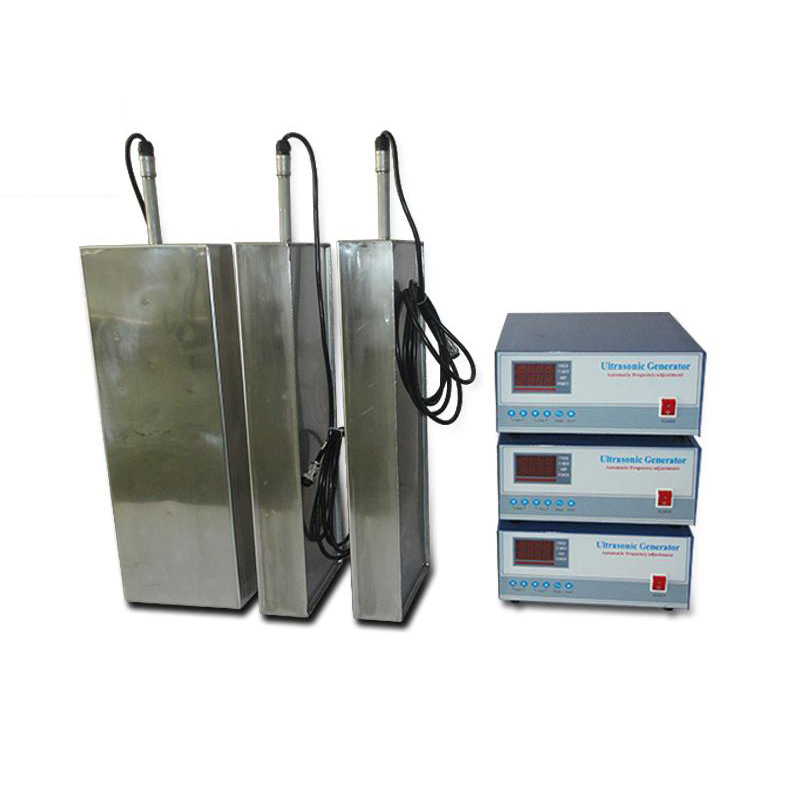

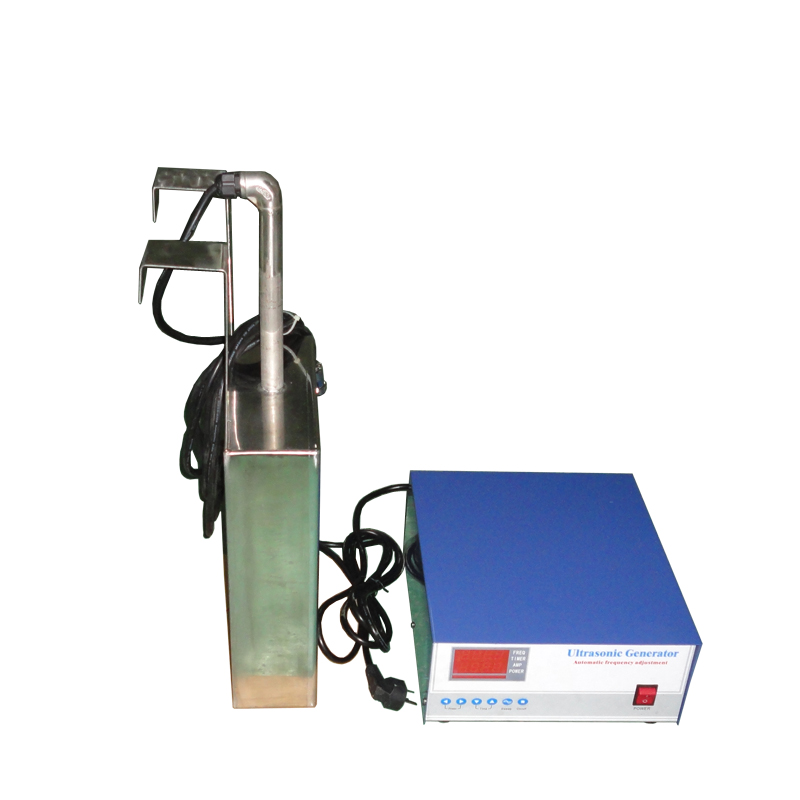

Side Type ultrasonic immersible transducer for cleaning

Compared with the traditional self-excited control technology, the Side Type ultrasonic immersible transducer for cleaning plate is driven by the international advanced digital pulse mode. It has the advantages of small size, light weight, strong power, stable and reliable operation, continuous adjustable power and flexible control, which has been recognized by many experts. Automatic frequency tracking of ultrasonic cleaning machine ensures that the machine is in the best working state from beginning to end, which can maximize the potential of ultrasonic transducer. It also has perfect protection function, such as over-current protection, overheat protection and output short-circuit protection. Real time digital display makes working frequency and ultrasonic output power more intuitive. And equipped with remote control port, it can be easily used in automatic production line



Side Type ultrasonic immersible transducer for cleaning product mix

1: All stainless steel structure, acid and alkali resistant, beautiful and durable.

2: Split structure is adopted. High frequency connection with socket is used between vibrating plate and ultrasonic generator, so it is convenient to use and maintain.

3: According to different needs, it can be made into bottom shock type, side shock type and top shock type to meet different cleaning requirements.

4: Advantages of ultrasonic vibration plate. Easy to maintain

5: When the power of the groove type ultrasonic cleaning machine is too small, the input vibration plate device can be used. If the vibration plate device is added in the existing cleaning tank, it can be converted into an ultrasonic cleaning machine. It's also a low-cost way.

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
PU-UITP300W	300*190*100	25,28,33,40,80,130	300	6
PU-UITP600W	360*275*100	25,28,33,40,80,130	600	12
PU-UITP1000W	450*350*100	25,28,33,40,80,130	1000	20
PU-UITP1200W	470*380*100	25,28,33,40,80,130	1200	24
PU-UITP1500W	520*450*100	25,28,33,40,80,130	1500	30
PU-UITP1800W	560*450*100	25,28,33,40,80,130	1800	36
PU-UITP2000W	650*450*100	25,28,33,40,80,130	2000	40
PU-UITP2400W	740*520*100	25,28,33,40,80,130	2400	48
PU-UITP3000W	820*540*100	25,28,33,40,80,130	3000	60
PU-UITP5000W	1200*590*100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
