Bottom type immersible ultrasonic transducer plate 28khz/40khz

The application principle of ultrasonic vibration plate is that the high-frequency oscillation signal sent out by ultrasonic generator is converted into high-frequency mechanical vibration and transmitted to the medium through transducer. In the cleaning solvent, the ultrasonic wave radiates in the cleaning liquid closely and alternately, which makes the liquid flow and produces tens of thousands of tiny bubbles. The tiny bubbles (cavitation nuclei) existing in the liquid vibrate under the action of sound field, When the sound pressure reaches a certain value, the bubbles grow rapidly and then close suddenly. When the bubbles close, shock waves are generated around the bubbles, causing thousands of atmospheric pressures to destroy the insoluble dirt and disperse them in the cleaning solution. When the group particles are wrapped in the oil and adhere to the surface of the cleaning parts, the oil is emulsified and the solid particles are separated, so as to achieve the purpose of cleaning the surface of the cleaning parts Yes.



Advantages of ultrasonic vibration plate:

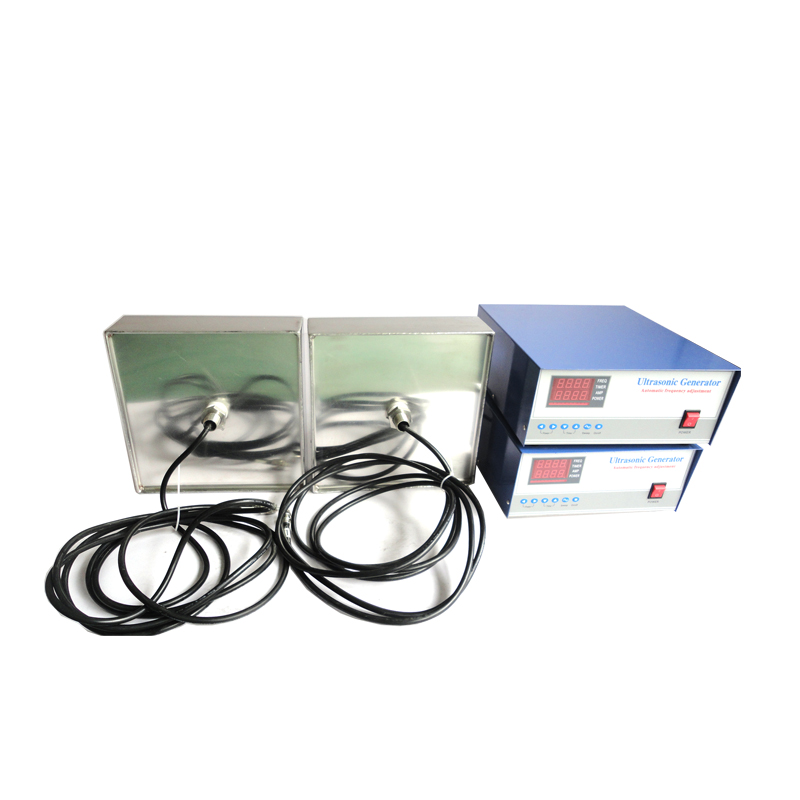

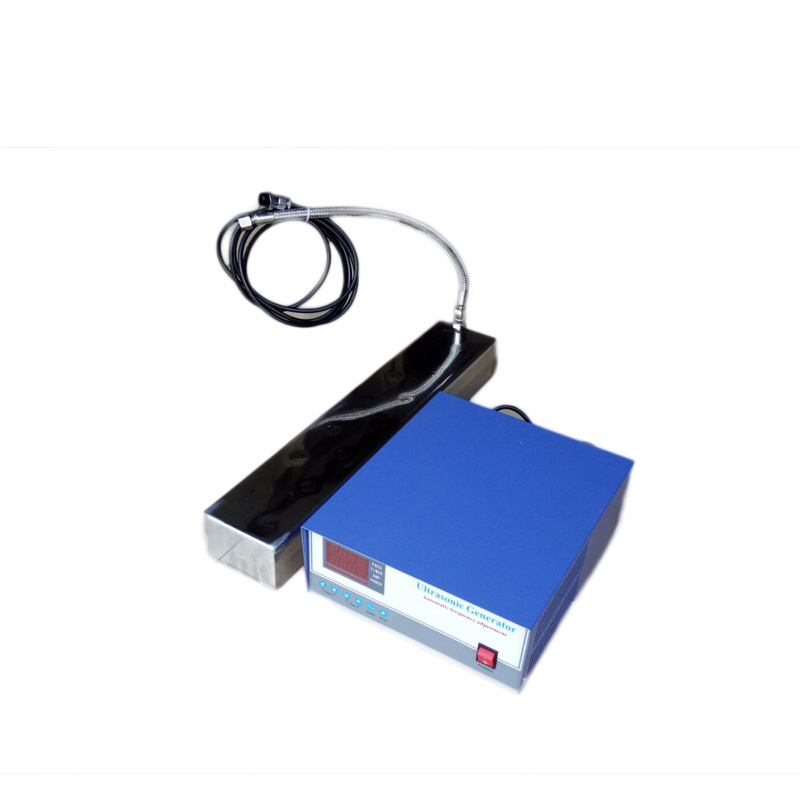

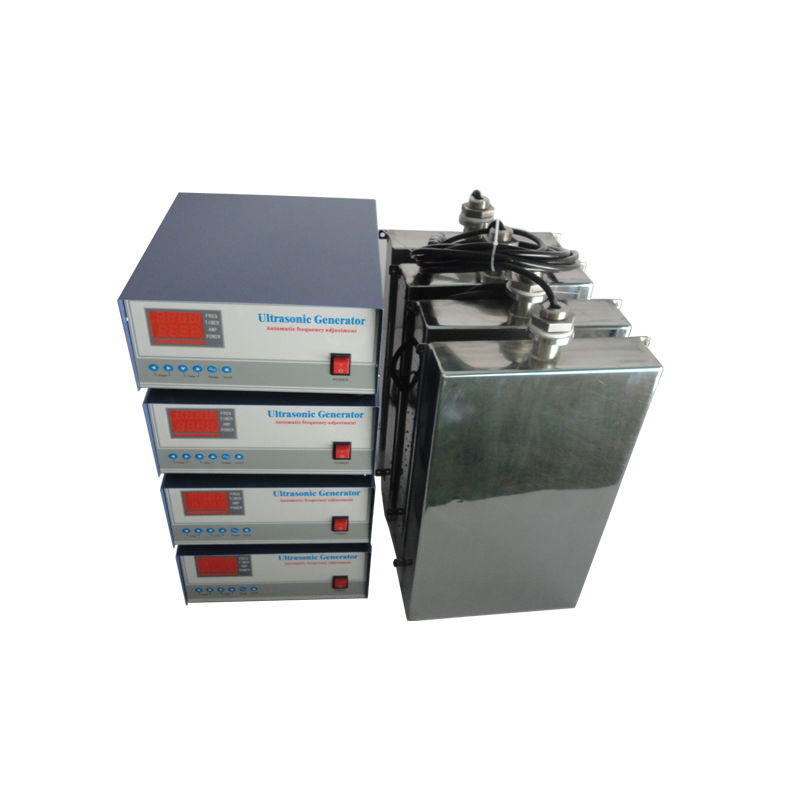

1. Ultrasonic vibration plate is composed of vibration plate and ultrasonic generator. When the standard model of ultrasonic cleaning machine is not suitable for specific working environment, in addition to special specifications can be customized. It can also be converted into ultrasonic cleaning machine by using the input vibration plate device, so as to save the equipment cost and achieve the cleaning effect.

2. The shock plate is made of stainless steel, alkali and acid resistant, and the surface of the shock plate is plated with hard chromium. Ultrasonic transducer adopts high-quality and high-performance products, with high efficiency of electro-acoustic conversion.

3. The split structure is adopted, and the high frequency wire with socket is used to connect the shock plate and ultrasonic generator, so it is convenient to use and maintain.

4. The installation and layout are flexible, and the ultrasonic radiation surface can be arranged on the bottom, side or top of the cleaning tank according to the needs.

It can be used to clean the parts of jewelry, glass, glass and so on.

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
PU-UITP300W	300*190*100	25,28,33,40,80,130	300	6
PU-UITP600W	360*275*100	25,28,33,40,80,130	600	12
PU-UITP1000W	450*350*100	25,28,33,40,80,130	1000	20
PU-UITP1200W	470*380*100	25,28,33,40,80,130	1200	24
PU-UITP1500W	520*450*100	25,28,33,40,80,130	1500	30
PU-UITP1800W	560*450*100	25,28,33,40,80,130	1800	36
PU-UITP2000W	650*450*100	25,28,33,40,80,130	2000	40
PU-UITP2400W	740*520*100	25,28,33,40,80,130	2400	48
PU-UITP3000W	820*540*100	25,28,33,40,80,130	3000	60
PU-UITP5000W	1200*590*100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
