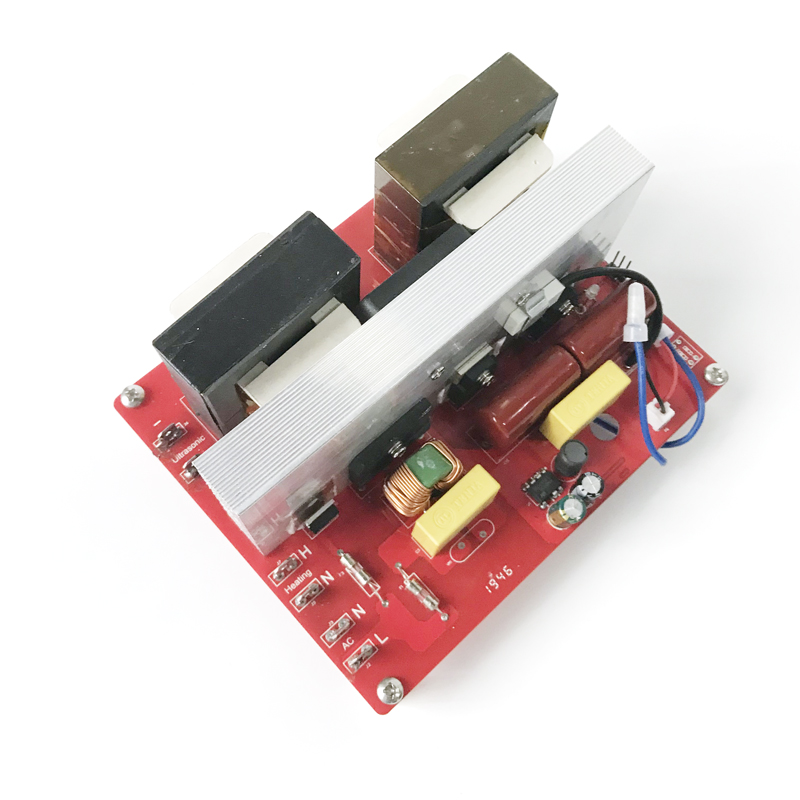

ultrasonic generator is a kind of conversion device that converts electric energy into ultrasonic energy and provides energy to ultrasonic transducer, also known as ultrasonic power generator. The qyp series ultrasonic generator produced by our company is based on the technology of well-known experts and professors at home and abroad, and is assembled with imported high-power devices.

ultrasonic PCB generator is widely used in ultrasonic cleaning, welding, drilling, polishing, homogenization, descaling and other fields, the products sell well all over the country and are well received by users.

Product features:

The power output adopts IGBT - Ⅳ inverter technology (IGBT inverter technology: it is the most advanced and popular power supply technology in the world, which has the advantages of small volume, light weight, high conversion efficiency, low energy consumption, good quality and long service life), with large output power and excellent effect.

The ultrasonic power generator is adjustable, the adjustable range is 0-maximum, and the power current meter indicates.

Equipped with remote control interface, it is more convenient for users.

The power supply has reasonable structure design, easy ventilation and heat dissipation, and has the function of over-current, over-voltage and overheating protection, and good continuous operation reliability.current, short-circuit protection, can protect the generator power tube.

Type	Power（W）	Frequency (KHz)
PU-DGPCB300W	300	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB600W	600	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB900W	900	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB1000W	1000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB1200W	1200	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB1500W	1500	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB1800W	1800	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB2000W	2000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB2400W	2400	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB3000W	3000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
