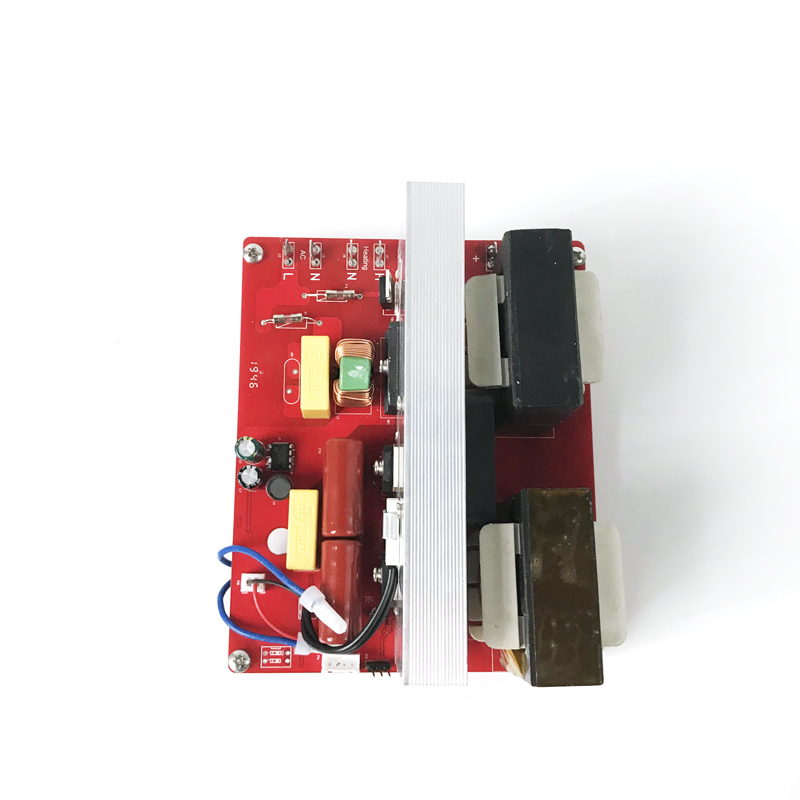

diy ultrasonic generator 40khz PCB Driver Circuit Board

ultrasonic PCB generator Product introduction:

This power board for our company specialized in the development and production of small ultrasonic cleaning machine. It is a conversion device that converts electric energy into ultrasonic energy and provides energy to ultrasonic transducer, also known as ultrasonic power supply.

It is widely used in various scientific research institutes, laboratories, eyewear shops, precision instruments and jewelry processing industries.

Product features:

Ultrasonic power digital display, power step 1% continuous fine adjustable, adjustable range 0 - maximum.

Using the other excitation circuit, equipped with international advanced automatic frequency sweep circuit, the performance is more stable.

With countdown timing function, three digit timing can be set, which is convenient to use.

With heating function, the heating temperature can be set and the current temperature can be displayed in real time.

The working parameters have the function of power-off memory protection.

The ultrasonic power generator is small in size and light in weight. It is directly installed in the equipment and easy for users to operate.

Type	Power（W）	Frequency (KHz)
PU-DGPCB300W	300	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB600W	600	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB900W	900	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB1000W	1000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB1200W	1200	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB1500W	1500	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB1800W	1800	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB2000W	2000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB2400W	2400	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB3000W	3000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
