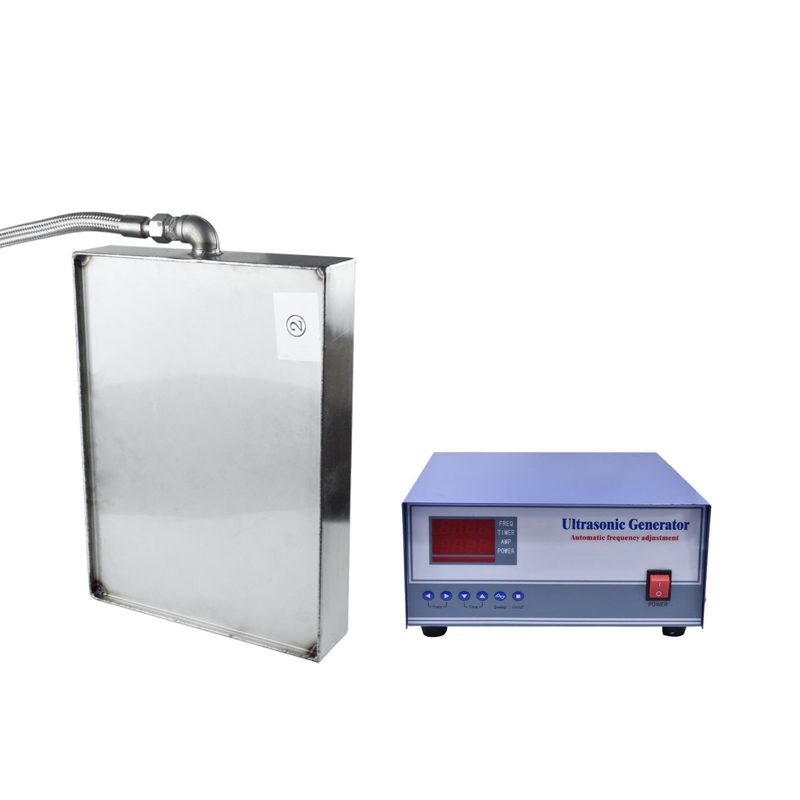

Waterproof Immersible Ultrasonic Transducer for cleaning

The working principle of the Immersible Ultrasonic Transducer is that the ultrasonic generator generates ultrasonic frequency power higher than 20kHz, which is converted into mechanical vibration with the same frequency into cleaning fluid. The ultrasonic wave is conducted forward with dense phases and generates numerous tiny bubbles. These bubbles are formed and grown in the negative pressure area of ultrasonic longitudinal transmission, and rapidly ruptured in the positive pressure area. The formation, growth and rapid rupture process of this kind of tiny bubble is called "cavitation effect". In the cavitation effect, the instantaneous high pressure of more than 10000 atmospheric pressure is produced after the bubble burst. The continuous instantaneous high pressure is like a series of small explosions which bombard the surface of the object continuously, which makes the dirt on the surface of the object fall off quickly.

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
PU-UITP300W	300*190*100	25,28,33,40,80,130	300	6
PU-UITP600W	360*275*100	25,28,33,40,80,130	600	12
PU-UITP1000W	450*350*100	25,28,33,40,80,130	1000	20
PU-UITP1200W	470*380*100	25,28,33,40,80,130	1200	24
PU-UITP1500W	520*450*100	25,28,33,40,80,130	1500	30
PU-UITP1800W	560*450*100	25,28,33,40,80,130	1800	36
PU-UITP2000W	650*450*100	25,28,33,40,80,130	2000	40
PU-UITP2400W	740*520*100	25,28,33,40,80,130	2400	48
PU-UITP3000W	820*540*100	25,28,33,40,80,130	3000	60
PU-UITP5000W	1200*590*100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
