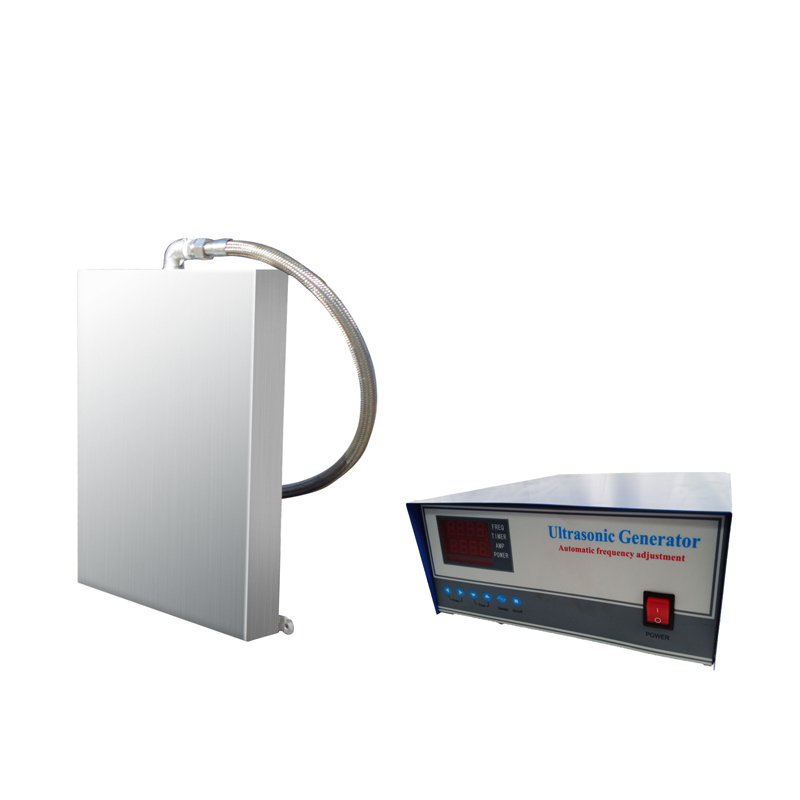

Custom immersible ultrasonic transducers vibrating plate

The application principle of ultrasonic vibration plate is that the high-frequency oscillation signal sent out by ultrasonic generator is converted into high-frequency mechanical vibration and transmitted to the medium through transducer. In the cleaning solvent, the ultrasonic wave radiates in the cleaning liquid closely and alternately, which makes the liquid flow and produces tens of thousands of tiny bubbles. The tiny bubbles (cavitation nuclei) existing in the liquid vibrate under the action of sound field, When the sound pressure reaches a certain value, the bubbles grow rapidly and then close suddenly. When the bubbles close, shock waves are generated around the bubbles, causing thousands of atmospheric pressures to destroy the insoluble dirt and disperse them in the cleaning solution. When the group particles are wrapped in the oil and adhere to the surface of the cleaning parts, the oil is emulsified and the solid particles are separated, so as to achieve the purpose of cleaning the surface of the cleaning parts Yes.



Immersible Ultrasonic Transducer product mix

1: All stainless steel structure, acid and alkali resistant, beautiful and durable.

2: Split structure is adopted. High frequency connection with socket is used between vibrating plate and ultrasonic generator, so it is convenient to use and maintain.

3: According to different needs, it can be made into bottom shock type, side shock type and top shock type to meet different cleaning requirements.

4: Advantages of ultrasonic vibration plate. Easy to maintain

5: When the power of the groove type ultrasonic cleaning machine is too small, the input vibration plate device can be used. If the vibration plate device is added in the existing cleaning tank, it can be converted into an ultrasonic cleaning machine. It's also a low-cost way.

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
PU-UITP300W	300*190*100	25,28,33,40,80,130	300	6
PU-UITP600W	360*275*100	25,28,33,40,80,130	600	12
PU-UITP1000W	450*350*100	25,28,33,40,80,130	1000	20
PU-UITP1200W	470*380*100	25,28,33,40,80,130	1200	24
PU-UITP1500W	520*450*100	25,28,33,40,80,130	1500	30
PU-UITP1800W	560*450*100	25,28,33,40,80,130	1800	36
PU-UITP2000W	650*450*100	25,28,33,40,80,130	2000	40
PU-UITP2400W	740*520*100	25,28,33,40,80,130	2400	48
PU-UITP3000W	820*540*100	25,28,33,40,80,130	3000	60
PU-UITP5000W	1200*590*100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
