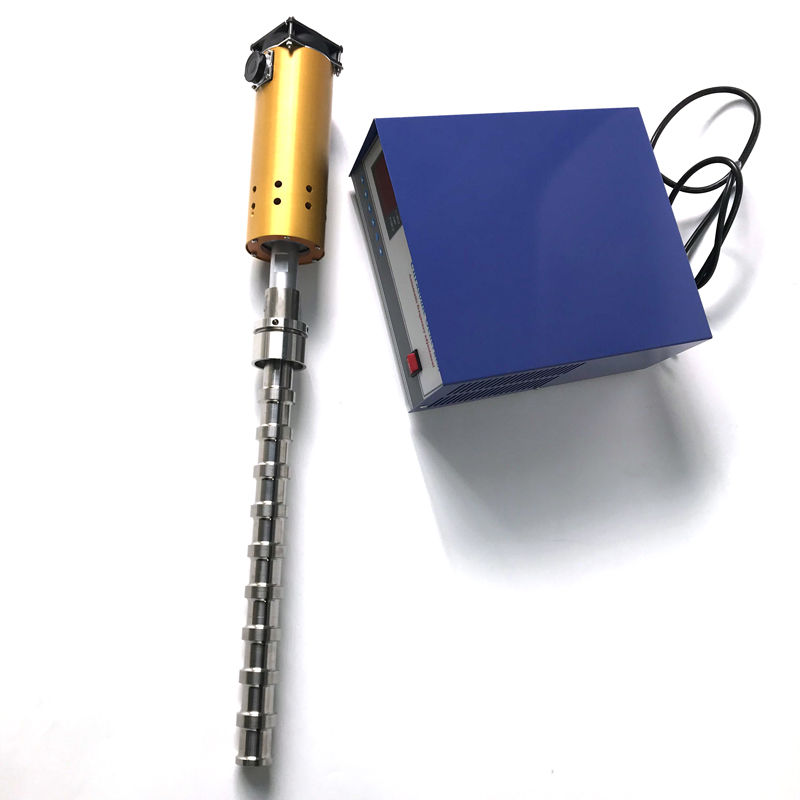

Ultrasonic Material Dispenser Industrial Ultrasonic Reactor Supplier

Application of ultrasonic vibration rod in cleaning

Due to its unique round pipe design features, ultrasonic vibrator is particularly suitable for all kinds of pipeline cleaning. The principle is to convert electric energy into ultrasonic energy, and transfer it to scale, water and inner wall of pipeline according to its own law, so as to obtain great energy. The vibration wave generated in the ultrasonic transmission process makes the scale, water and the inner wall of the pipeline resonate. Due to the different vibration frequency of the scale, water and pipe inner wall, the water molecules in the pipeline collide violently, which generates strong impact force, and impacts the scale layer on the heat exchange surface, making it brittle, peeling, falling off and crushing, And it is discharged along with the blowdown of the equipment, so as to realize the thorough cleaning of the inner wall of the pipeline with the ultrasonic vibrator. In addition, the ultrasonic vibrator can also be used to clean the tank body, which can be freely placed in any position of the cleaning tank. It is very flexible and convenient to use, and the occupied volume space is very small, so there is no dead corner left in the cleaning.

Application of ultrasonic vibrator in extraction of traditional Chinese Medicine

The ultrasonic vibration rod can be used to extract the effective components of traditional Chinese medicine. Firstly, the extraction solvent is added into the container, and the traditional Chinese medicine is crushed or cut into granules according to the needs, and then put into the extraction solvent; the ultrasonic generator is turned on, and the ultrasonic vibration rod is installed on the top of the extraction tank to send ultrasonic wave to the extraction solvent. On the one hand, the "cavitation effect" and mechanical effect produced by ultrasonic wave in the extraction solvent can effectively crush the cell wall of the medicinal material, so that On the other hand, it can accelerate the molecular movement of the extraction solvent, make the extraction solvent and the effective components in the medicinal materials quickly contact, dissolve and mix with each other.

The optimum temperature of ultrasonic vibration rod for extracting medicinal materials is 40-60 ℃, so it is not necessary to equip a boiler to provide steam heating, which is conducive to saving energy and improving environmental pollution. More importantly, it has protective effect on the active ingredients in the medicinal materials which are unstable in heat and easy to hydrolyze or oxidize. The ultrasonic vibration stick can obtain the best effect after running for about 30 minutes. Compared with the traditional technology, the extraction efficiency is greatly improved, and it is not limited by the nature and molecular weight of Chinese herbal medicine. It is suitable for the extraction of most kinds of Chinese medicinal materials and various components (including liquid-liquid extraction and solid-liquid extraction). Therefore, the use of ultrasonic vibration rod for traditional Chinese medicine extraction has been more and more used by the majority of pharmaceutical companies.

Application of ultrasonic vibrator in accelerating chemical reaction

The front end of the ultrasonic vibrator tool head is close to the outer wall of the kettle or extends into the kettle cavity. The ultrasonic transducer can send ultrasonic wave to the chemical reactants in the reactor chamber. The treated liquid can change the activity of the reaction system due to the "cavitation" effect of the ultrasonic wave, destroy the solvent structure of the chemical reactants in the reactor chamber, and produce a transient enough to trigger the chemical reaction This is the main factor of using ultrasonic vibrator to catalyze chemical reaction.

The secondary effects of ultrasonic, such as mechanical vibration, emulsification, diffusion and crushing, are conducive to the full mixing of reactants in all directions. The ultrasonic vibration rod adopts high-power energy gathering transducer, which can make the material move violently and accelerate the transmission and diffusion of the material, which can replace the traditional mechanical mixing. Of course, in practical application, with the use of electric stirrer, the effect of accelerating reaction is better.

Tubular Equipment Type	Tubular Transducer Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
PU-UE1	US-61	15-28	1000	500	Φ50-55	68000
PU-UE5	US-25	15-28	1500	850	Φ50-55	68000
PU-UE6	US-16	15-28	2000	1100	Φ50-55	132000
