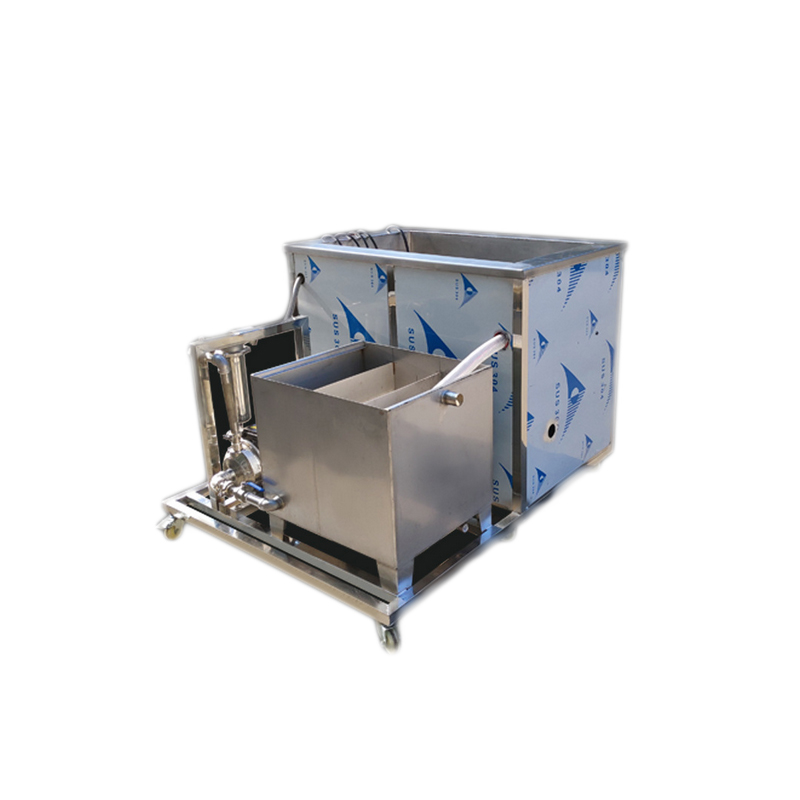

Ultrasonic Diesel Particulate Filter Cleaning Machine

It is used for cleaning and cleaning of oil, polishing paste, dust and other attachments left in the machining of almost all rigid plastics, metals and hardware parts in the machining process.

Filtration System Product features:

◆ the tank body is made of imported stainless steel, acid resistant and alkali resistant, and the appearance is beautiful and generous.

High quality high Q-value transducer and unique ultrasonic generator are adopted, and the ultrasonic output is strong and powerful.

◆ the adhesive imported from West Germany and unique bonding technology are adopted to ensure the transducer works at 100 ℃ water temperature for a long time and is durable.

◆ equipped with automatic temperature control heating device, temperature range: normal temperature - 100 ℃.

◆ the ultrasonic generator and cylinder block are separated in structure, and are connected with high frequency wire base.

Easy to use and maintain.

The ultrasonic generator adopts the structure of the other shock line, which is more than 15% higher than the traditional self excitation oscillation circuit structure, which can give full play to the potential of the ultrasonic transducer. The working voltage is AC220 ± 10V. It has protection measures such as over voltage, over-current, short circuit of output, etc. It has the function of frequency fine adjustment and frequency automatic tracking, and can achieve good results under different working conditions. The cleaning liquid is driven to form a fine reflux, which makes the workpiece dirt be peeled off by ultrasonic and quickly away from the surface of the workpiece, thus improving the cleaning efficiency. It has the function of stepless power regulation, and the output power can realize the continuous adjustment without pole, which can meet the requirements of various cleaning objects, and can also set time and time, and operate safely.

Type	Internal size L*W*H (mm)	Frequency (Khz)	Power(W)	Heating(W)
PU-XH1006ST	280×210×210	20,28,33,40,80,130	300	100
PU-XH1012ST	400×310×280	20,28,33,40,80,130	600	300
PU-XH1018ST	490×360×320	20,28,33,40,80,130	900	500
PU-XH1024ST	630×430×320	20,28,33,40,80,130	1200	1000
UCE-XH1030ST	630×530×320	20,28,33,40,80,130	1500	1000
PU-XH1036ST	680×530×360	20,28,33,40,80,130	1800	1000
PU-XH1040ST	680×570×400	20,28,33,40,80,130	2000	1000
PU-XH1041ST	730×570×450	20,28,33,40,80,130	2400	2000
PU-XH1042ST	790×670×510	20,28,33,40,80,130	3000	2000
PU-XH1043ST	850×770×570	20,28,33,40,80,130	4000	2000
PU-XH1044ST	910×820×620	20,28,33,40,80,130	5000	3000
PU-XH1045ST	960×870×680	20,28,33,40,80,130	8000	4000
PU-XH1046ST	1100×930×730	20,28,33,40,80,130	10000	5000
