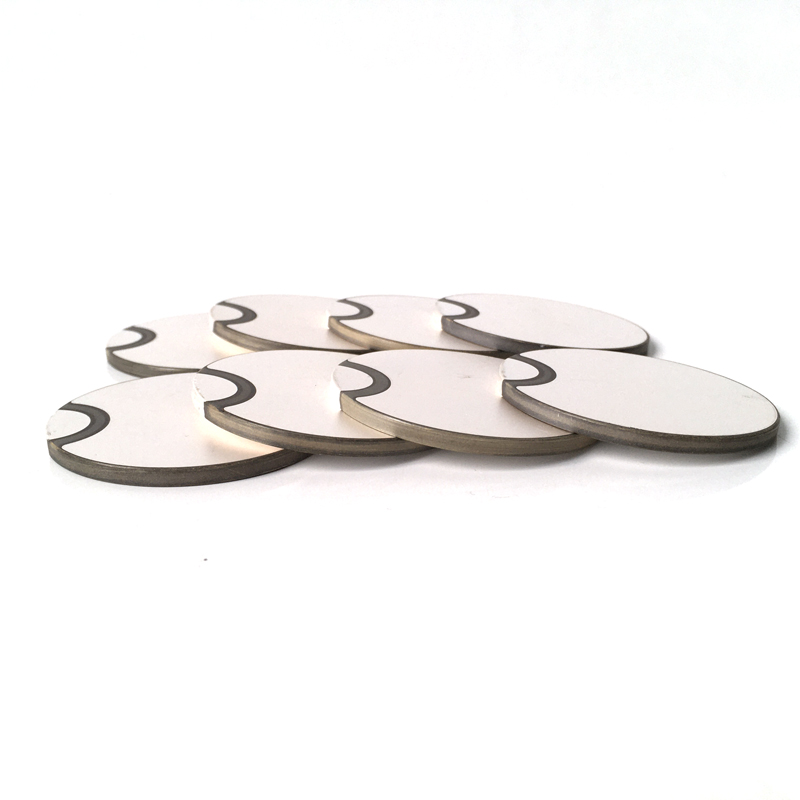

Piezoelectric Disc Type Element 50*3mm Piezo Disc Elements

 Piezoelectric ceramic components can convert electrical and mechanical signals to each other. The piezoelectric ceramic components with certain shape are mainly made of pbtio3-pbzro3 system (PZT). Even if the sintered body is sintered, the piezoelectric properties of single crystal can be obtained by polarization. The main uses of piezoelectric elements are spark plugs and resonators. The resonator plays the role of selective passing through a specific frequency radio filter, which is an indispensable component of TV, radio and other tuning circuits.

Spec	Dimension (mm)	Thickness frequency (MHz)	Capacitance (pf)	Electromechanical coupling coefficient		Piezoelectric voltage coefficient d33	Courier temperature (℃)
				Kp	Kt
UCE-81-1	Φ8 × 1	2.0MHz±5%	530±10%	0.65	0.43	420×	350
UCE-81-2	Φ8 × 1	2.0MHz±5%	850±10%	0.64	0.44	520×	330
UCE-82	Φ8 × 2	1.0 MHz±5%	265±10%	0.65	0.43	420×	350
UCE-82-1	Φ8 × 2	1.0 MHz±5%	430±10%	0.64	0.44	520×	330
UCE-101	Φ10 × 1	2.0 MHz±5%	840±10%	0.65	0.44	420×	350
UCE-101-1	Φ10 × 1	2.0 MHz±5%	1350±10%	0.64	0.43	520×	330
UCE-102	Φ10 × 2	1.0 MHz±5%	420±10%	0.65	0.44	420×	350
UCE-102-1	Φ10 × 2	1.0 MHz±5%	680±10%	0.65	0.45	520×	330
UCE-151	Φ15 ×1	2.0 MHz±5%	1970±10%	0.65	0.43	420×	350
UCE-151-1	Φ15 × 1	2.0 MHz±5%	3200±10%	0.65	0.45	520×	330
UCE-152	Φ15 × 2	1.0 MHz±5%	980±10%	0.66	0.43	420×	350
UCE-152-1	Φ15 × 2	1.0 MHz±5%	1600±10%	0.65	0.45	520×	330
UCE-161	Φ16×1	2.0 MHz±5%	2200±10%	0.65	0.45	420×	350
UCE-161-1	Φ16×1	2.0 MHz±5%	3600±10%	0.65	0.45	520×	330
UCE-162	Φ16 × 2	1.0 MHz±5%	1850±10%	0.65	0.45	420×	330
UCE-162-1	Φ16 × 2	1.0 MHz±5%	1100±10%	0.65	0.45	420×	350
UCE-201	Φ20×1	2.0 MHz±5%	3560±10%	0.66	0.43	420×	350
UCE-201-1	Φ20×1	2.0 MHz±5%	5800±10%	0.65	0.45	400×	330
UCE-202	Φ20×2	1.0 MHz±5%	1780±10%	0.65	0.43	350×	350
UCE-202-1	Φ20×2	1.0 MHz±5%	2900±10%	0.65	0.45	400×	330
UCE-251	Φ25 × 1	2.0 MHz±5%	4600±10%	0.66	0.43	350×	350
UCE-251-1	Φ25 × 1	2.0 MHz±5%	7500±10%	0.65	0.45	400×	330
UCE-252	Φ25 × 2	1.0 MHz±5%	2300±10%	0.65	0.43	350×	350
UCE-252-1	Φ25 × 2	1.0 MHz±5%	3700±10%	0.65	0.45	400×	330
UCE-402	Φ40 × 2	1.0 MHz±5%	7200±10%	0.65	0.45	350×	350
