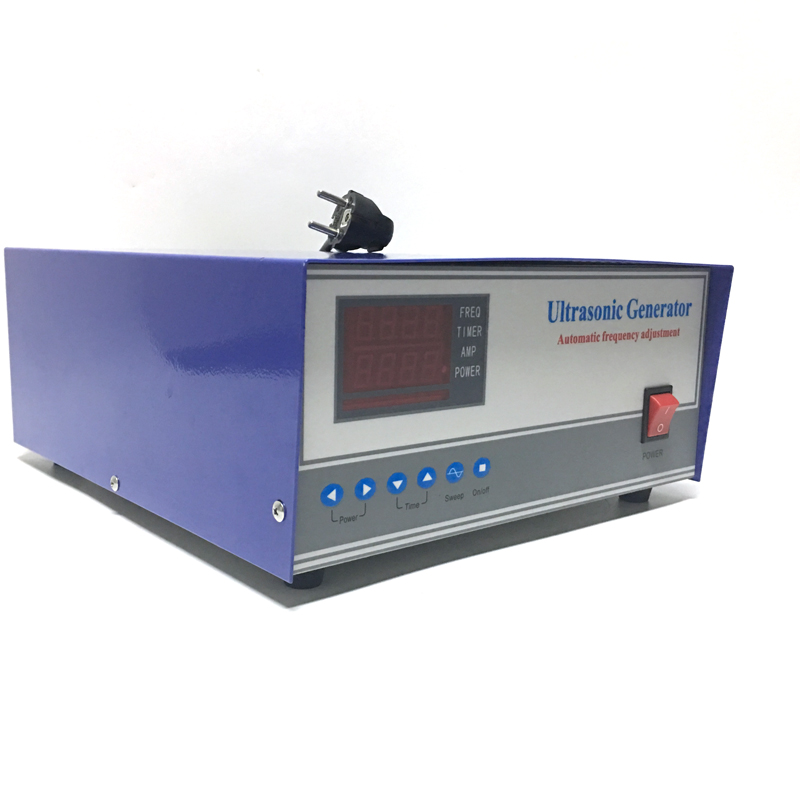

40khz Ultrasonic Frequency Generator Box for cleaning

The principle of Ultrasonic cleaning generator is that a signal with a specific frequency is generated by the signal generator. The signal can be sinusoidal signal or pulse signal. This specific frequency is the frequency of ultrasonic transducer. Generally, the frequency of ultrasonic wave power supply used in ultrasonic equipment is 20kHz, 25kHz, 28kHz, 33khz, 40KHz, 60KHZ; 100kHz or above has not been found yet It is widely used. But with the continuous development of precision cleaning. Believe that the use of ultrasonic will gradually expand.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PU-GT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PU-GT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PU-GT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PU-GT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PU-GT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PU-GT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PU-GT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PU-GT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PU-GT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PU-GT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz

TAG ultrasonic： ultrasonic frequency generator online Digital Frequency-Control Ultrasonic Generator box Ultrasonic Frequency Generator and Controller ultrasonic sound generator box

40khz Ultrasonic Frequency Generator Box for cleaning
