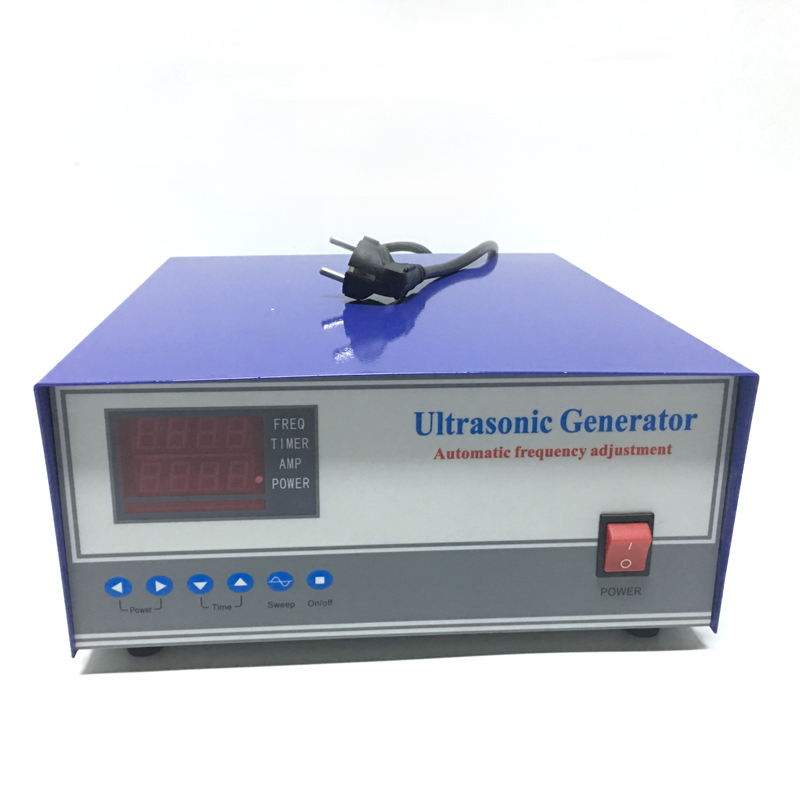

28khz/40khz signal frequency ultrasonic generator

Ultrasonic cleaning generator is produced by using the latest excitation control circuit, the ultrasonic density has been greatly improved, the cleaning work is more meticulous, and the cleanliness is higher. The ultrasonic power generator has the function of sweeping frequency. In the cleaning process, the ultrasonic frequency is swept back and forth within a reasonable range, which drives the cleaning fluid to form a fine backflow, so that the dirt on the workpiece is quickly taken away from the surface of the workpiece when it is peeled off by ultrasonic wave, and the cleaning efficiency is improved. Original imported high power tube drive, up to 95% power factor, to ensure strong output power. It can also quickly remove the dirt with strong adhesion. In the working state, real-time frequency tracking is realized. When the frequency of transducer changes when the water temperature, the number of workpieces and cleaning agent change, the generator can keep automatic frequency tracking at any time to achieve the best working state of matching the frequency of ultrasonic transducer.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PU-GT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PU-GT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PU-GT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PU-GT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PU-GT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PU-GT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PU-GT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PU-GT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PU-GT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PU-GT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz
