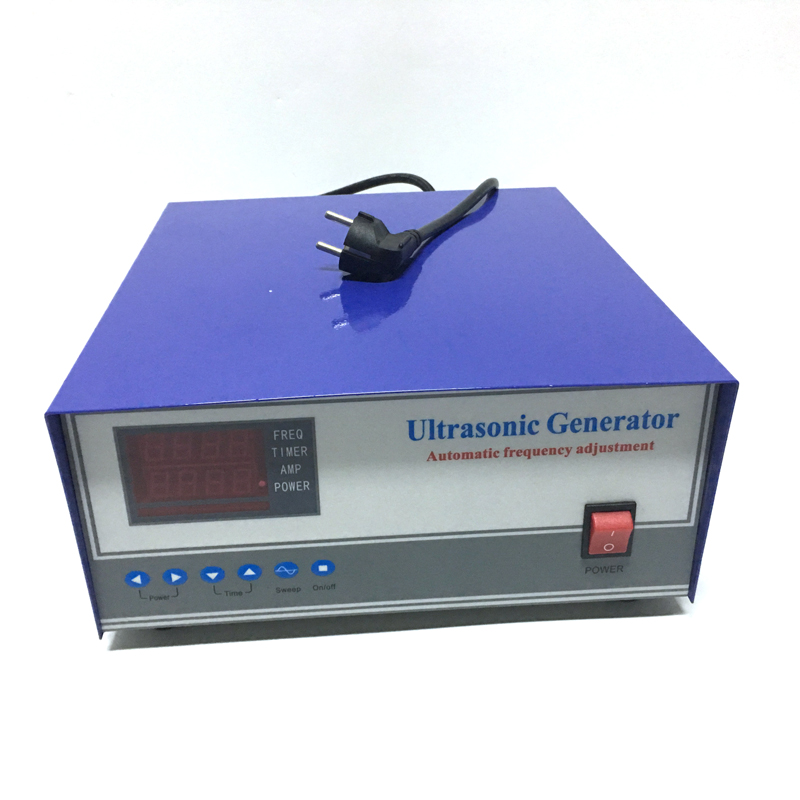

28khz/40khz Variable Frequency Ultrasonic Generator Box

Ultrasonic cleaning generator to produce a specific frequency signal, this signal can be sinusoidal signal, can be pulse signal, this specific frequency is the frequency of transducer work.

The frequency of ultrasonic generator commonly used in ultrasonic equipment is 20kHz, 25kHz, 28kHz, 33khz, 40KHz, 60KHZ, 80kHz, 100kHz or above, which has not been widely used.

The control box adopts the advanced technology such as the excitation circuit controlled by microcomputer, the automatic frequency tracking and frequency sweeping working mode. Compared with the traditional control box, it has stable and reliable operation, continuously adjustable ultrasonic power, and can maximize the potential of the transducer. Working frequency automatic tracking makes output match better, power more powerful and efficiency higher. The unique working mode of frequency sweeping makes the cleaning fluid form a small backflow under the effect of frequency sweep, and timely take the dirt stripped by ultrasonic from the surface of the workpiece, so as to achieve a faster and more thorough cleaning effect, and the ultrasonic cleaning efficiency is higher. At the same time, it has perfect protection.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PU-GT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PU-GT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PU-GT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PU-GT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PU-GT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PU-GT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PU-GT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PU-GT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PU-GT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PU-GT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz

TAG ultrasonic： ultrasonic frequency generator online 28khz/40khz ultrasonic generator variable frequency 2000W ultrasonic generator variable frequency Variable frequency ultrasonic generator with constant variable speed constant frequency generator variable frequency sine wave generator
