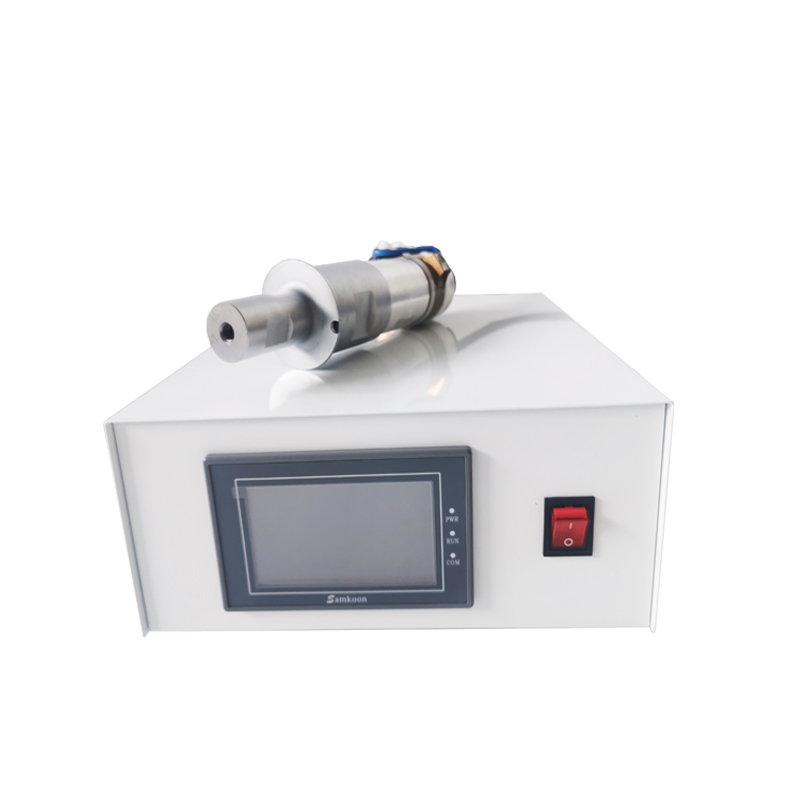

20khz ultrasonic welding vibration generator for plastic

The Ultrasonic Welding Generator has the characteristics of compact structure, convenient installation, simple operation and high cost performance. The ultrasonic generator can automatically, quickly, accurately and continuously perform the ultrasonic driving work.

1: The ultrasonic generator can monitor the working frequency and power of high-power ultrasonic system.

2: According to different requirements of users, it can adjust various parameters in real time, such as power, amplitude, running time, etc.



Features of ultrasonic generator:

Automatic frequency following: once the initial setting of the equipment is completed, it can work continuously without adjusting the generator.

Automatic amplitude control: when the load changes during the working process of ultrasonic transducer, it can automatically adjust the driving characteristics to ensure the stable amplitude of ultrasonic tool head.

System protection: when the system works in an unsuitable operating environment, the generator will stop working and alarm display to protect the equipment from damage.

Amplitude adjustment: the amplitude can be increased or decreased instantaneously in the working process, and the amplitude setting range is 0% ~ 100%.

Automatic frequency search: it can automatically measure the working frequency of tool head and store it.

PU-UG100W	100W	28khz/40khz	110V or220V
PU-UG300W	300W	28khz/40khz	110V or220V
PU-UG500W	500W	15KHz/20khz/28khz/40khz	110V or220V
PU-UG900W	900W	15KHz/20khz/28khz	110V or220V
PU-UG1500W	1500W	15KHz/20khz	110V or220V
PU-UG1800W	1800W	15KHz/20khz	220V
PU-UG2000W	2000W	15KHz/20khz	220V
PU-UG2600W	2600W	15KHz	220V
PU-UG3200W	3200W	15KHz	220V
PU-UG4200W	4200W	15KHz	220V
