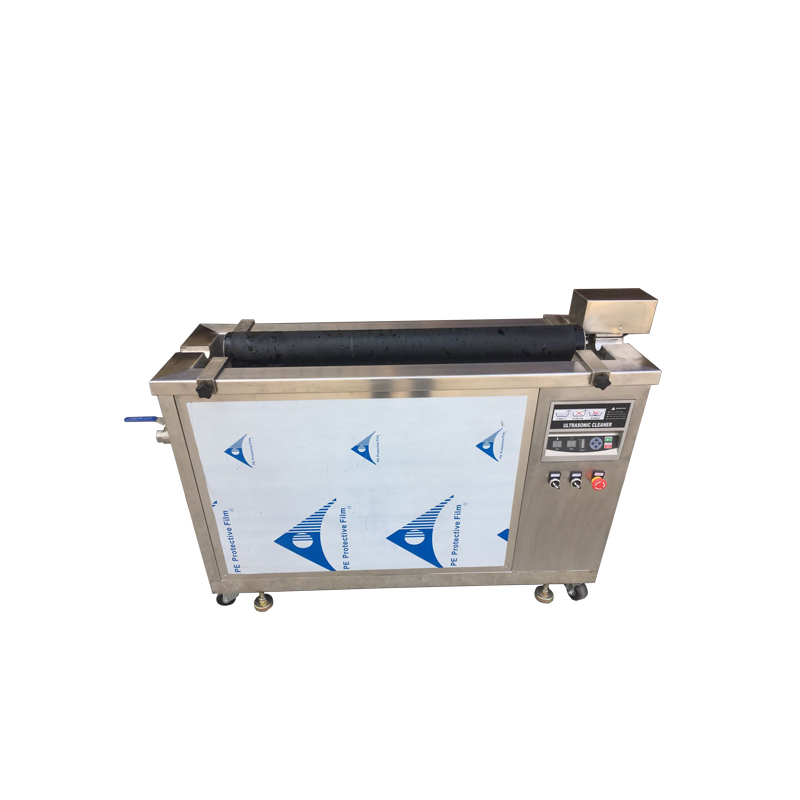

2000W 40KHZ Anilox Roll Ultrasonic Cleaning Equipment And Generator Control Box

The fully automatic anilox roller ultrasonic cleaning machine is of standard industrial design and can clean objects with a weight of 300KG;







Machine configuration: The machine is equipped with a generator control box, a stainless steel cleaning basket, an inlet valve, a drain valve, a muffler cover, a power cord, and movable casters.







Advantages of fully automatic anilox roller ultrasonic cleaning machine:







1. The fully automatic anilox roller ultrasonic cleaning machine cleans more thoroughly: Based on the principle of ultrasonic cleaning, taking an ordinary 600L/ICH anilox roller as an example, the aperture of its anilox groove is about 30 microns, and the diameter of the cavitation bubbles generated by ultrasonic waves is about 2-5 microns. In a single anilox groove, 6-15 cavitation bubbles can enter simultaneously, while blasting and washing the dirt at the bottom of the fine anilox groove, Thereby achieving the goal of rapid and thorough cleaning.







2. The fully automatic anilox roller ultrasonic cleaning machine does not damage the anilox surface: The ultrasonic anilox roller cleaning machine uses the explosive impact of cavitation bubbles generated in the cleaning fluid to impact and peel off the anilox surface, which causes much less damage to the anilox surface of the anilox roller than other cleaning methods such as brushing or sandblasting.







3. Fully automatic anilox roller ultrasonic cleaning machine for energy conservation and environmental protection: The anilox roller cleaning machine is always immersed in the cleaning fluid for cleaning, without dust flying and sewage flowing, greatly improving the working environment. At the same time, select appropriate weak alkali environmental protection cleaning fluid, which can be reused, energy conservation and environmental protection.







4. Fully automatic anilox roller ultrasonic cleaning machine is safe and efficient: The anilox roller ultrasonic cleaning machine is used to place the anilox roller that needs to be cleaned into the ultrasonic cleaning tank. After the equipment is turned on, there is no need for manual operation. At the same time, the equipment is equipped with a unique rotation system, which enables the anilox roller to rotate and clean at a uniform speed in a closed state, thereby quickly and thoroughly cleaning without dead corners, safe and efficient.
