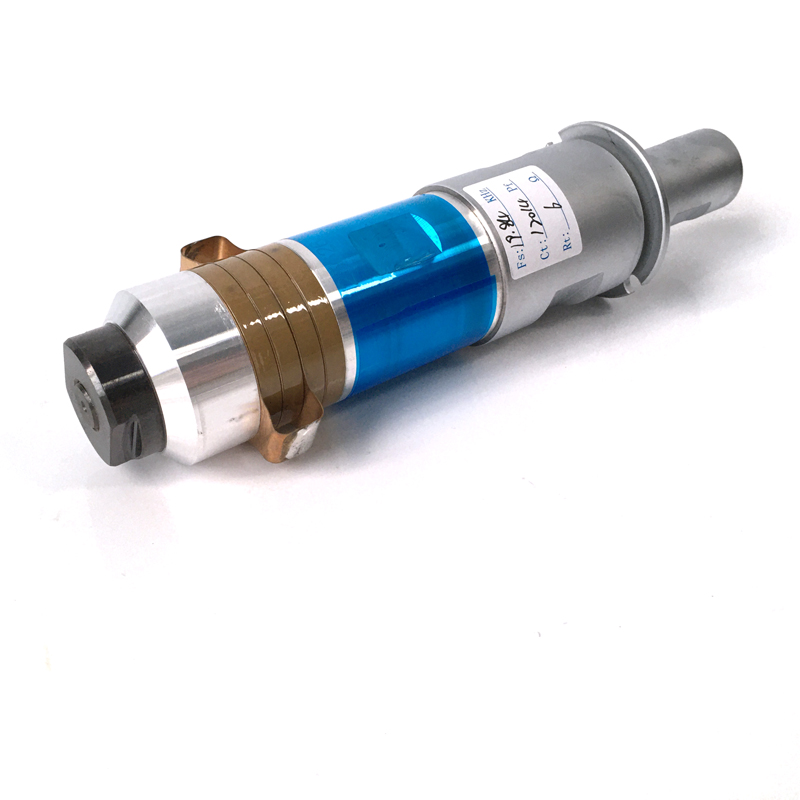

15khz/20khz Ultrasonic Welder Converter and Booster

Ultrasonic Welding Transducer, which works in the same way as cleaning transducer, can also achieve large amplitude ultrasonic vibration by applying prestress to offset the expansion stress of piezoelectric ceramics. Because of the high demand of instantaneous power for welding transducer, it has high demand for material and technology, and it is a high power acoustic energy super energy device. Usually, the vibration system with high power and large amplitude is composed of ultrasonic amplitude changing rod and working head to complete ultrasonic welding of plastic, metal and other materials.



Ultrasonic Welding Machine is the ultrasonic vibration produced by ultrasonic transducer, which produces high frequency friction heat on the contact gap surface of the welded object under pressure, so as to achieve the purpose of hot fusion welding. Ultrasonic energy transducer is a high-power ultrasonic transducer with gap or pulse. It is usually calculated by instantaneous peak power.



Characteristics of ultrasonic energy gathering transducer:

1. Low resonance impedance, high mechanical quality factor, high efficiency of electroacoustic conversion and large amplitude;

2. The heating is small, the temperature range is large, the performance drift is small and the work is stable;

3. The material is reliable and the transducer has a long service life.

Type	Full-length（mm）	Joint Bolt（mm）	Frequency（KHz）	Resonance Impedance（Ω）	Capacity（pF）	Input Power （W）
PU-UWT152500 P8	153	M20×1.5	15	15	13000	2500
PU-UWT152000 P8	167	M20×1.5	15	10	9500	2000
PU-UWT151500 P4	171	M18×1.5	15	12	12500	1500
UCE-UWT151800 P4	118	M20×1.5	20	15	15000	1800
PU-UWT202000 P8	128	M18×1	20	10	11000	2000
PU-UWT202000 P8	124	M18×1.5	20	12	10000	1500
PU-UWT20700 P8	112	1/2-20 UNF	20	15	9000	700
PU-UWT20900 P8	133	1/2-20 UNF	20	15	10000	900
PU-UWT20600 P8	121	M18×1.5	20	15	6000	600
PU-UWT30500 P8	77	M10×1.5	30	5	5500	500
PU-UWT28200 P4	92.1	M10×1	28	20	3000	200
PU-UWT28100 P8	91	M8×1	28	25	2200	100
PU-UWT28250 P8	94	1/2-20 UNF	28	20	4000	250
PU-UWT202000 P8	128	1/2-20 UNF	20	10	20000	2000
PU-UWT201500 P8	124	1/2-20 UNF	20	10	16000	1500
PU-UWT201300 P8	128	1/2-20 UNF	20	10	12500	1300
PU-UWT201500 P8	132	1/2-20 UNF	20	10	11000	1500
PU-UWT20900 P8	123	1/2-20 UNF	20	10	9500	900
PU-UWT152000 P4	171	M18×1.5	15	12	10000	2000
PU-UWT35100 P8	71	M8×1	35	25	2200	100
PU-UWT38100 P8	66	M8×1.25	38	40	1200	100
PU-UWT38200 P4	65	M8×1	38	14	3300	200
