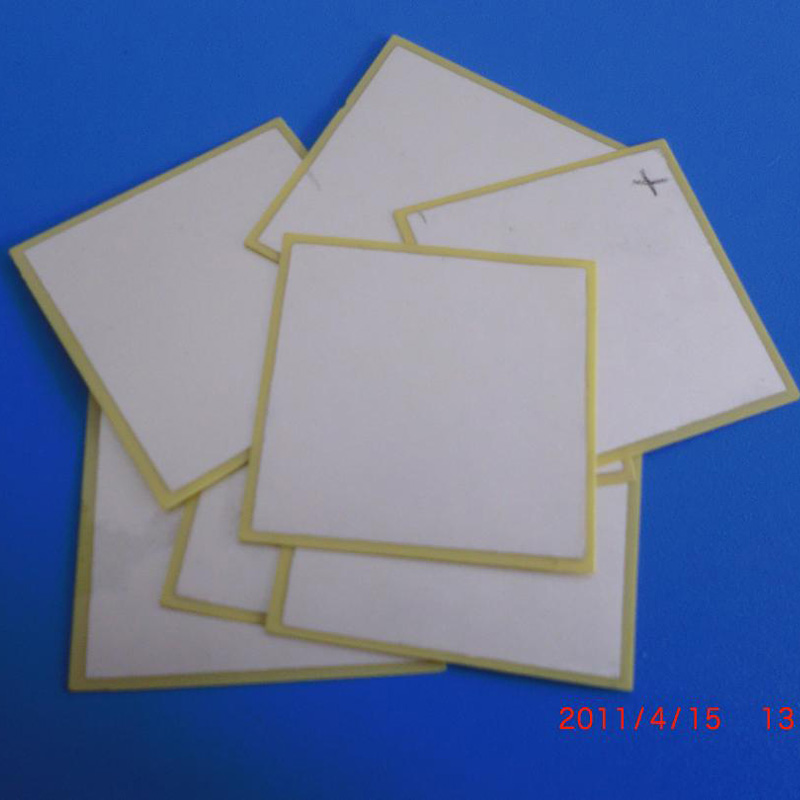

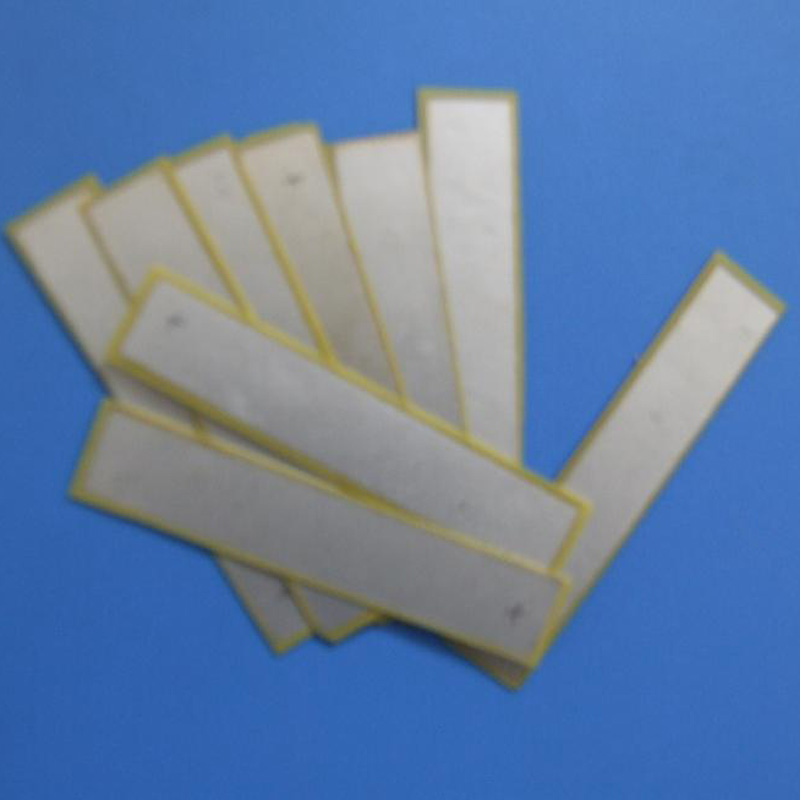

Medical B Piezoelectric ceramic with rectangle/Cube series

Piezoelectric ceramics are widely used in beauty and weight loss medical industry. This year's rise of ultrasonic knife, hot plastic weight loss device, Youli plastic weight loss device is representative products.



Compared with the traditional laser beauty weight loss products, the advantages are non-invasive, safe and effective for a long time.



Focusing type (HIFU) piezoelectric ceramic transducer, 2MHz, 3MHz, 4MHz, 7MHz, 8MHz, etc



Piezoelectric ceramics are widely used in beauty and weight loss medical industry. This year's rise of ultrasonic knife, hot plastic weight loss device, Youli plastic weight loss device is representative products.



Compared with the traditional laser beauty weight loss products, the advantages are non-invasive, safe and effective for a long time.



Its working principle is that through the medium conductivity of ultrasonic wave, the sound wave will penetrate the human body noninvasively to a set depth, and gather a little, which will produce instantaneous high temperature, act on the muscle aponeurosis system, make the layer produce contraction, make the collagen produce immediate contraction and stimulate a large number of collagen regeneration and reorganization, build a brand-new collagen fiber network, enhance the elasticity and firmness of the skin from the bottom layer of the skin Now it has three functions: firming skin, removing wrinkles and shaping.

Model	Outer size(mm) length×width× thickness	Main data
		fr(MHz)	K31	E T 3
				r
PU-B3.5M	(80-130)×(13-16)×0.4	3.5	≥0.37	2200-3000
PU-B5.0M	(60-110)×(12-15)×0.3	5.0	≥0.36
PU-B7.5M	(50-100)×(10-14)×0.2	7.5	≥0.35
