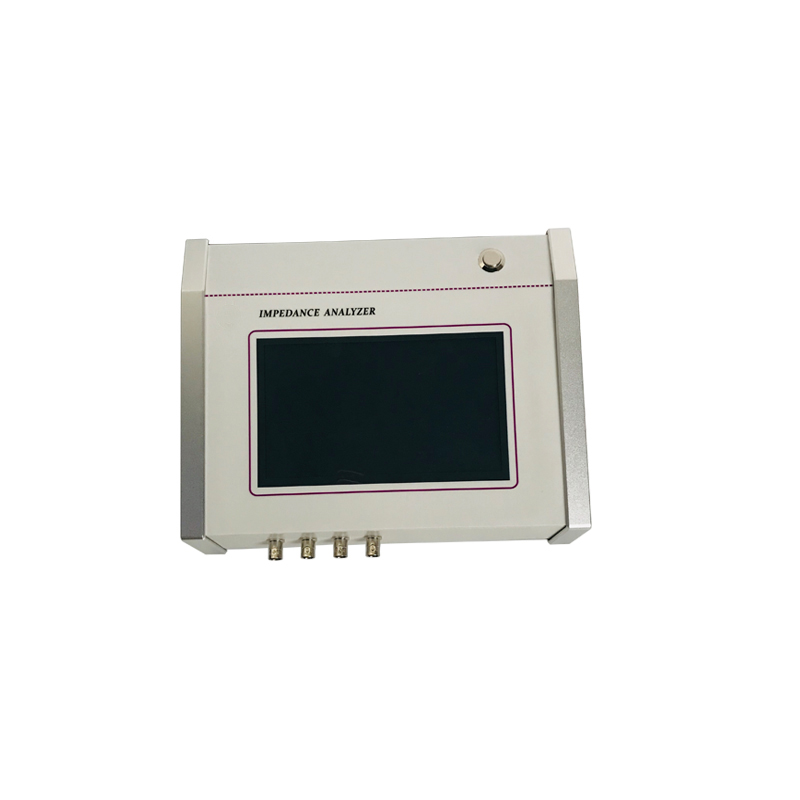

ultrasonic frequency impedance analyzer 1mh-5mhz

Impedance analyzer can be measured and evaluated to match the circuit

For piezoelectric ceramic chip, the device can be judged directly from the admittance circle diagram and logarithmic coordinates. If there are delamination or cracks in the ceramic chip, the logarithmic curve will appear multiple peaks, and multiple parasitic circles will appear on the admittance circle diagram

Whether the design, processing and assembly of the horn are reasonable or defective can be seen directly on the guide circle diagram

For the production and processing of ultrasonic welding machine, the status of the welding machine is analyzed by using the results of admittance circle. Through the analysis of parameters and graphics, the problems existing in the welding machine are found

For the production and processing of ultrasonic cleaning machine: the selection of vibrator requires the same vibration performance as possible (bandwidth, quality factor, resonance frequency, dynamic impedance), There is no parasitic circle as far as possible or there is no parasitic circle near the resonance point. The impedance characteristic analysis and measurement can be carried out for the manufacturing of energy converter, incoming material inspection, bonded transducer and cleaning machine. The resonance frequency and static capacitance of the machine can be calibrated to match the power supply, The new resonance point, impedance, capacitance and vibration mode of the whole machine can be analyzed
