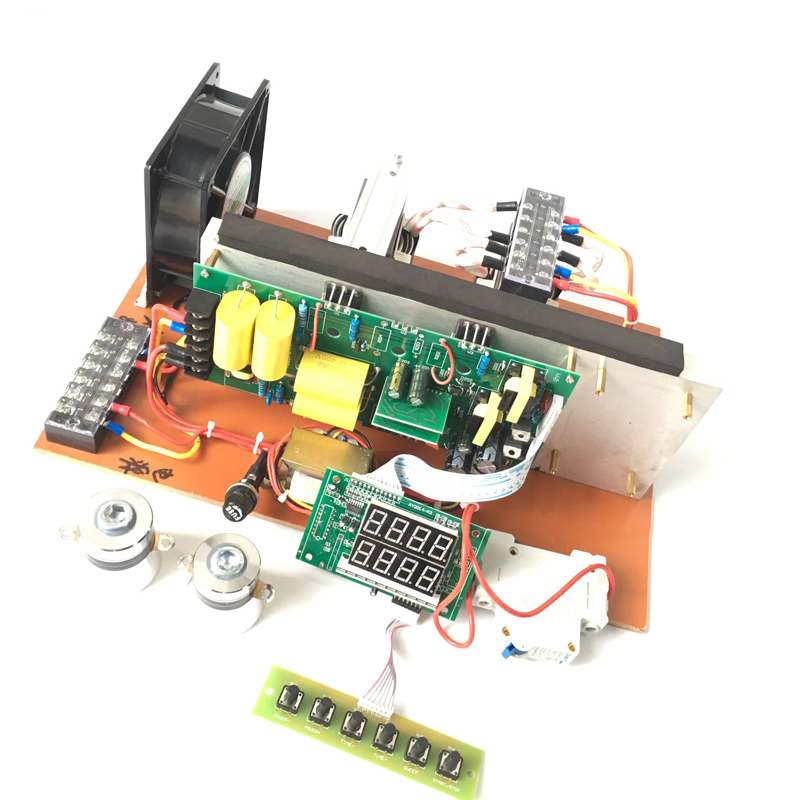

28khz/40khz ultrasonic transducer driver PCB circuit

ultrasonic PCB generator The working voltage is AC220 ± 10V. It has over-voltage, over-current, output short-circuit protection measures. The 220 V ultrasonic circuit board has the function of frequency fine adjustment and automatic frequency tracking, which can achieve the best effect under different working conditions. It drives the cleaning fluid to form a fine backflow, so that the dirt on the workpiece is quickly removed from the surface of the workpiece when it is peeled off by ultrasonic, thus improving the cleaning efficiency. With the function of stepless power regulation, the output power can be adjusted continuously from 10% to 100%, so as to meet the requirements of various cleaning objects. It can also set the time and time for safe operation.

Type	Power（W）	Frequency (KHz)
PU-DGPCB300W	300	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB600W	600	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB900W	900	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB1000W	1000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB1200W	1200	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB1500W	1500	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB1800W	1800	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB2000W	2000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB2400W	2400	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-DGPCB3000W	3000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
