ultrasonic transesterification of oil to biodiesel

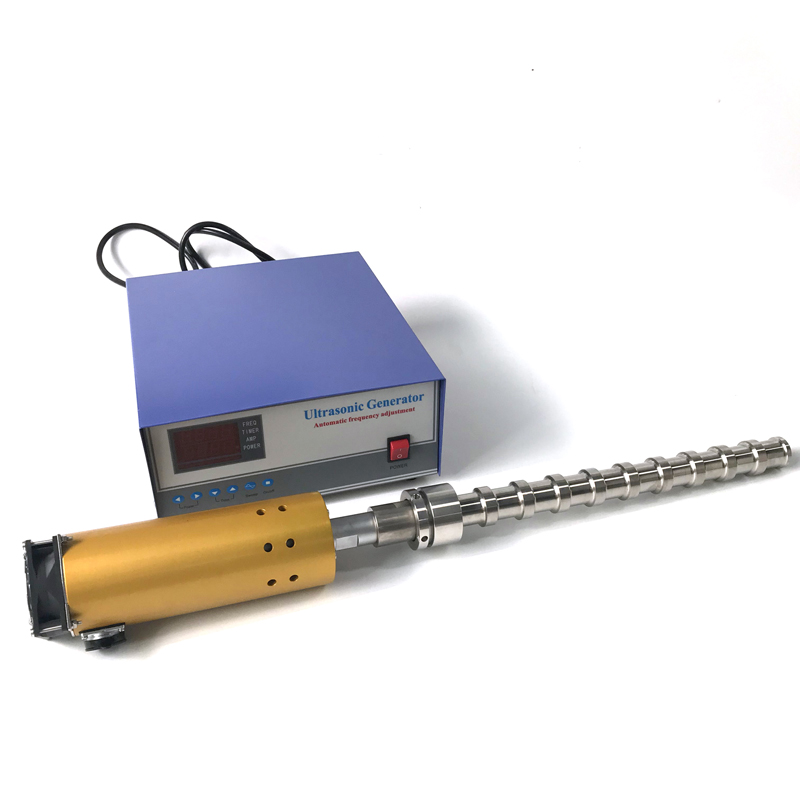

Advantages of ultrasonic horn:

The ultrasonic horn is made of titanium alloy, which has high mechanical Q value, small mechanical loss and high mechanical strength.

Ultrasonic horn is a kind of energy gathering transducer, which has more concentrated energy and stronger response.

In industrial production, the ultrasonic horn used in large volume tank has lower cost, easier installation and explosion-proof.

In the past, due to the concentrated energy of ultrasonic horn, it is easy to heat up, resulting in high failure rate and unable to work for a long time. Now the jacket type air cooling or water cooling device is adopted, which can greatly reduce the working temperature and can be used for a long time without failure.

It can be used for ultrasonic Chinese medicine extraction, plant extraction, ultrasonic sewage treatment, ultrasonic wastewater treatment, ultrasonic emulsification, ultrasonic dispersion, ultrasonic desulfurization, ultrasonic aging wine, ultrasonic liquor aging

Tubular Equipment Type	Tubular Transducer Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
PU-UE1	US-61	15-28	1000	500	Φ50-55	68000
PU-UE5	US-25	15-28	1500	850	Φ50-55	68000
PU-UE6	US-16	15-28	2000	1100	Φ50-55	132000
