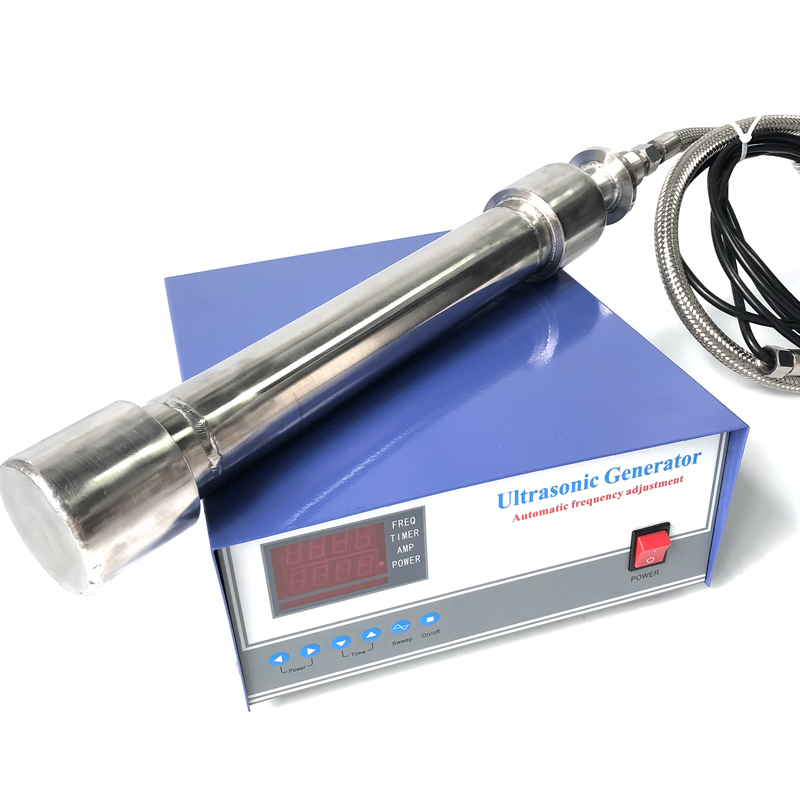

tubular ultrasonic cleaning transducer with generator

Principle of ultrasonic vibrator Ultrasonic technology is mainly used as a physical means and tool, which can form a series of conditions close to extreme critical when chemical reactions are produced. This energy can not only stimulate chemical reactions, speed up the speed and efficiency of chemical reactions, but also change the properties of some chemical reactions, making the original chemical components produce some unexpected effects and functions, This is called sonochemistry. Almost all chemical reactions can use sonochemistry as physical assistance, such as extraction and separation, synthesis, biodiesel production, treatment of microorganisms, degradation of toxic organic pollutants, biodegradation, biological cell crushing, dispersion and condensation, etc. Therefore, ultrasonic vibration rod can not only be used to clean the object, peel off the surface of the object, but also promote the further success of scientific research.

Working principle and function of ultrasonic vibrator

The following three functions of ultrasonic vibrator are described.

Ultrasonic dispersion: the process of dispersing and agglomerating the particles in the liquid through the "cavitation" effect of ultrasonic wave in the liquid. Ultrasonic dispersion can be divided into emulsion dispersion, namely liquid and liquid dispersion; and suspension dispersion, namely solid and liquid dispersion. Its function has been practiced and applied in many fields. Among them, the application of ultrasonic to the dispersion of suspension, such as in the coating and plastic industry, titanium oxide and other dispersion into water or solvent, dye dispersion into molten paraffin, dispersion of pharmaceutical particles in pharmaceutical industry, and dispersion of powder emulsion in food industry, etc.

Ultrasonic extraction: ultrasonic extraction and separation is mainly based on the existing state, polarity and solubility of active components and groups of effective components in substances. It is a new technology that uses ultrasonic oscillation to extract scientifically and reasonably, so that the solvent can quickly spread to all corners of the solid surface, and the organic components contained in the material can be completely dissolved in the solution The chemical components in the extract are separated by appropriate separation method, and then refined and purified. After such a complete process, the final required monomer chemical components can be obtained.

Ultrasonic emulsification: ultrasonic emulsification refers to the process in which two (or more than two) immiscible liquids are evenly mixed to form a dispersion system under the action of ultrasonic energy, and one liquid is evenly distributed in the other liquid to form emulsion liquid. The physical mechanism of grinding insoluble solid (or liquid) is the cavitation of ultrasonic wave. Ultrasonic cavitation effect refers to a large number of bubbles generated in the liquid under the action of ultrasonic wave. Small bubbles will gradually increase with the ultrasonic vibration, and then burst and split suddenly. Tens of thousands of small bubbles will increase and burst again and again. In case of rapid collapse, high temperature and high pressure will be generated in the bubble, and the liquid near the bubble will be caused by the liquid around the bubble rushing into the bubble at high speed Strong local oscillation wave is generated in the body, which also forms local high temperature and high pressure, resulting in ultrasonic comminution and emulsification.

Tubular Equipment Type	Tubular Transducer Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
PU-UE1	US-61	15-28	1000	500	Φ50-55	68000
PU-UE5	US-25	15-28	1500	850	Φ50-55	68000
PU-UE6	US-16	15-28	2000	1100	Φ50-55	132000
